Piezo controllers are used to drive and control piezoelectric ceramics and nano-positioning platforms. According to the structure, they are mainly divided into modular, integrated, industrial, and board-type controller products. Analog, digital, keyboard, I/O and other control methods. Available in open loop, closed loop, single or multiple channels. It can drive all kinds of piezoelectric products.
|
Modules
|
Control Mode
|
Selection Guide
|
|
Multi-Functions, For All Kinds of Piezo Products
|
E03
|
E05
|
|
E06
|
E07
|

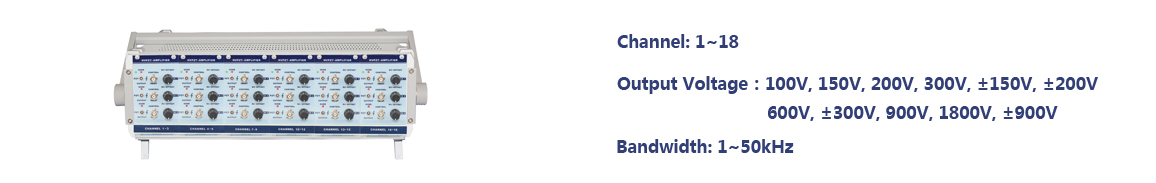

| E00 Technical data | |||
|
Model |
E00 |
||
|
Only extended drive module |
1~18 channels |
||
|
Dimensions |
500×175×375mm |
||
|
Input analog signals |
Single polarity -1.67~+10V/0~+5V, double polarities -10~+10V/-5~+5V |
||
|
Optional output voltage |
100V、150V、200V、300V、±150V |
±200V、600V、±300V |
900V、1800V、±900V |
|
Output voltage ripple |
≤5mV |
≤10mV |
≤20mV |
|
Output voltage resolution |
16Bit (1/30000 of full range) 24Bit (1/100000 of full range) |
||
|
Serial/USB interface |
RS232 (Baud rate 9600) / USB2.0 |
||
|
Voltage stability |
＜0.1%F.S（full range）/8hours |
||
|
Input impedance |
100KΩ±20% |
||
|
Unloaded full amplitude bandwidth |
1k、10k、20k、50kHz are available |
||
|
Channels of drive module |
1~3 |
||
|
Ave. Power per channel |
7W ~ 35W |
||
|
Peak power per channel |
20W ~ 110W |
||
|
Ave. current |
40mA ~ 350mA |
||
|
Peak current |
100mA ~ 11A |
||
|
Bandwidth in large signals |
1kHz ~ 50kHz |
||
|
Current limitation |
Short-circuit proof |
||
|
Voltage gain |
10 ~ 90（±0.1） |
||
|
DC-offset |
10 turns |
||
|
Sensor |
SGS、 LVDT、 CAP |
||
|
Channels of sensor module |
1 ~ 3 |
||
|
Sensor interface |
LEMO ERA.0S.304.CLL |
||
|
Sensor output interface |
LEMO connection with 4 cores（Sensor input) |
||
|
Sensor output voltage |
Single polarity power：0~+10V;double polarities power：-10~+10V |
||
|
Channels of master control module |
1~3 |
||
|
D/A transducer |
16/24 bit ±10V output |
||
|
A/D transducer |
16bit ±10V input |
||
|
Peak output current |
Peak output power/nominal voltage output（per channel) |
||
|
Ave. Output current |
Ave.output power/nominal voltage output （per channel） |
||
|
Dynamic output characteristic formula |
Peak to peak voltage(V)×frequency(Hz)×load(F)≤Ave.output current |
||
|
Power supply |
AC 220V±10％ 50Hz±10％ |
||
|
Functions |
|||
|
Combination |
Can equipped with drive, sensor and
master control module, |
||
|
External feature |
Arbitrary combination between modules, upgraded. |
||
|
Basic control |
manual adjustment、analog input、serial/USB interface、 |
||
|
Basic function |
Over-current protection |
||
|
Software configuration |
With a powerful standard computer control software |
||
|
Introduction of spontaneous waveform |
Spontaneous sine wave, square wave,
triangle wave, sawtooth wave, |
||
|
LCD keyboard communication interface |
Standard（LCD，membrane button，RS232,USB） |
||
| E03 Power Amplifier Module | |||||||
|
Channels |
Type |
Analog input |
Output voltage |
Frequency |
Ave. current |
Peak current |
Ripple |
|
1~3 |
E03.00.1 |
-1~10V |
-20~200V |
>5kHz |
35mA |
105mA |
5mV |
|
1~3 |
E03.00.2 |
-1~10V |
-20~200V |
>5kHz |
35mA |
1000mA |
5mV |
|
1~3 |
E03.00.3 |
-0.67~10V |
-20~300V |
>5kHz |
23mA |
69mA |
5mV |
|
1~3 |
E03.00.4 |
-0.67~10V |
-20~300V |
>5kHz |
23mA |
1000mA |
5mV |
|
1~3 |
E03.00.5 |
-10~10V |
±100V |
>5kHz |
35mA |
1000mA |
5mV |
|
1~3 |
E03.00.6 |
-10~10V |
±150V |
>5kHz |
23mA |
1000mA |
5mV |
|
1~3 |
E03.00.7 |
-3.33~10V |
-20~60V |
10kHz |
100mA |
330mA |
5mV |
|
1~3 |
E03.00.9 |
-2~+10V |
-20~+100V |
10kHz |
70mA |
1000mA |
5mV |
|
E03.00.10 |
-1.67~+10V |
-20~+120V |
58mA |
1000mA |
|||
|
E03.00.11 |
-1.33~+10V |
-20~+150V |
46mA |
1000mA |
|||
|
E03.00.12 |
-2~+10V |
-20~+100V |
30kHz |
70mA |
210mA |
||
|
E03.00.13 |
-1.67~+10V |
-20~+120V |
58mA |
174mA |
|||
|
E03.00.14 |
-1.335~+10V |
-20~+150V |
46mA |
138mA |
|||
|
E03.00.15 |
-1~+10V |
-20~+200V |
35mA |
105mA |
|||
|
E03.00.16 |
-0.67~+10V |
-20~+300V |
23mA |
69mA |
|||
|
E03.00.17 |
-10~+10V |
-100~+100V |
35mA |
105mA |
|||
|
E03.00.18 |
-150~+150V |
23mA |
69mA |
||||
|
E03.05.1 |
0~+10V |
-20~+100V |
50kHz |
70mA |
210mA |
||
|
E03.05.2 |
-20~+120V |
58mA |
174mA |
||||
| E05 Power Amplifier Module | |||||||
|
Channels |
Type |
Analog input |
Output voltage |
Frequency |
Ave. current |
Peak current |
Ripple |
|
1 |
E05.00.1 |
-2~+10V |
-20~+100V |
1kHz |
350mA |
1050mA |
5mV |
|
E05.00.2 |
-1.67~+10V |
-20~+120V |
1kHz |
291mA |
873mA |
5mV |
|
|
E05.00.3 |
-1.33~+10V |
-20~+150V |
1kHz |
233mA |
700mA |
5mV |
|
|
E05.00.4 |
-2~+10V |
-20~+200V |
1kHz |
175mA |
525mA |
5mV |
|
|
E05.00.5 |
-0.67~+10V |
-20~+300V |
1kHz |
116mA |
348mA |
5mV |
|
|
E05.00.6 |
-0.5~+10V |
-20~+400V |
1kHz |
87mA |
260mA |
10mV |
|
|
E05.00.7 |
-10~+10V |
-100~+100V |
5kHz |
175mA |
525mA |
10mV |
|
|
E05.00.8 |
-10~+10V |
-150~+150V |
5kHz |
116mA |
348mA |
10mV |
|
|
E05.00.9 |
-10~+10V |
-200~+200V |
5kHz |
87mA |
260mA |
10mV |
|
|
E05.00.11 |
-1~+10V |
-20~+200V |
5kHz |
175mA |
525mA |
10mV |
|
|
E05.00.12 |
-0.67~+10V |
-20~+300V |
5kHz |
116mA |
348mA |
10mV |
|
|
E05.00.13 |
-2~+10V |
-20~+100V |
10kHz |
330mA |
1000mA |
5mV |
|
|
E05.00.14 |
-1.67~+10V |
-20~+120V |
10kHz |
290mA |
1000mA |
5mV |
|
|
E05.00.15 |
-1.33~+10V |
-20~+150V |
10kHz |
230mA |
1000mA |
5mV |
|
|
E05.00.16 |
-1~+10V |
-20~+200V |
>5kHz |
175mA |
1000mA |
5mV |
|
|
E05.03.18 |
-0.67~+10V |
-20~+300V |
>5kHz |
115mA |
1000mA |
5mV |
|
|
E05.03.19 |
-10~+10V |
-100~+100V |
>5kHz |
175mA |
1000mA |
5mV |
|
|
E05.03.20 |
-10~+10V |
-150~+150V |
>5kHz |
115mA |
1000mA |
5mV |
|
|
E05.03.21 |
-10~+10V |
-200~+200V |
>5kHz |
87.5mA |
1000mA |
5mV |
|
|
E05.03.22 |
0~-10V |
0~+300V |
>5kHz |
115mA |
1000mA |
5mV |
|
|
E05.03.23 |
0~10V |
-20~+400V |
3kHz |
87.5mA |
1000mA |
5mV |
|
|
E05.03.24 |
0~-10V |
0~-400V |
2kHz |
87.5mA |
1000mA |
5mV |
|
|
E05.03.1 |
-2~+10V |
-20~+100V |
30kHz |
330mA |
1000mA |
5mV |
|
|
E05.03.2 |
-1.67~+10V |
-20~+120V |
30kHz |
290mA |
1000mA |
5mV |
|
|
E05.03.3 |
-1.33~+10V |
-20~+150V |
30kHz |
230mA |
1000mA |
5mV |
|
|
E05.03.4 |
-1~+10V |
-20~+200V |
30kHz |
175mA |
1000mA |
5mV |
|
|
E05.03.5 |
-0.67~+10V |
-20~+300V |
30kHz |
115mA |
1000mA |
5mV |
|
|
E05.03.6 |
-10~+10V |
-100~+100V |
30kHz |
175mA |
1000mA |
5mV |
|
|
E05.03.7 |
-10~+10V |
-150~+150V |
30kHz |
115mA |
1000mA |
5mV |
|
|
E05.05.1 |
0~+10V |
0~+100V |
50kHz |
330mA |
1000mA |
5mV |
|
|
E05.05.2 |
0~+10V |
0~+120V |
50kHz |
290mA |
1000mA |
5mV |
|
|
E05.05.3 |
0~+10V |
0~+40V |
100kHz |
625mA |
1875mA |
20mV |
|
|
E05.05.4 |
0~+10V |
0~+40V |
120kHz |
625mA |
1875mA |
20mV |
|
| E06 Power Amplifier Module | |||||||
|
Channels |
Type |
Analog input |
Output voltage |
Frequency |
Ave. current |
Peak current |
Ripple |
|
2 |
E06.00.A2 |
-10V-+10V |
-300V-+300V |
1KHz |
5mA |
15mA |
20mV |
| E07 Power Amplifier Module | |||||||
|
Channels |
Type |
Analog input |
Output voltage |
Frequency |
Ave. current |
Peak current |
Ripple |
|
1 |
E07.00.1 |
-10~+10V |
±300V |
2kHz |
35mA |
438mA |
10mV |
|
1 |
E07.00.2 |
0~+10V |
0~1000V |
2kHz |
30mA |
438mA |
10mV |
|
1 |
E07.00.2 |
-10~+10V |
-300~+300V |
5kHz |
58mA |
500mA |
10mV |
|
1 |
E07.00.2 |
0~+10V |
0~+600V |
5kHz |
58mA |
500mA |
10mV |
| E08 Power Amplifier Module | |||||||
|
Channels |
Type |
Analog input |
Output voltage |
Frequency |
Ave. current |
Peak current |
Ripple |
|
1 |
E08.00 |
-2.5~7.5V |
-500~1500V |
2kHz |
17mA |
55mA |
50mV |
|
2 |
E08.01 |
-2.5~7.5V |
-500~1500V |
2kHz |
17mA |
55mA |
50mV |
|
3 |
E08.02 |
-2.5~7.5V |
-500~1500V |
2kHz |
17mA |
55mA |
50mV |
|
4 |
E08.03 |
-2.5~7.5V |
-500~1500V |
2kHz |
17mA |
55mA |
50mV |
|
5 |
E08.04 |
-2.5~7.5V |
-500~1500V |
2kHz |
17mA |
55mA |
50mV |
|
6 |
E08.05 |
-2.5~7.5V |
-500~1500V |
2kHz |
17mA |
55mA |
50mV |
|
1 |
E08.06* |
-10~10V |
-0~2000V |
1kHz |
30mA |
90mA |
50mV |
*: Combination type, combined with 2 modules, GND of driven load is suspended.
