E00.D5K01 chassis-type piezo controller is designed with 5 channels output that the 5th channel constant outputs 150V, it can be controlled by analog or digital signals. It can achieve real-time communication with the upper computer through RS-232/422 interface, LAN port, and supports secondary development of upper computer software. Its peak current is up to 1A, and bandwidth(-3dB) up to 10kHz.
Characteristics
|
|
|
|
|
 RS-232/422 and LAN port for communication
|
|
|
|
|

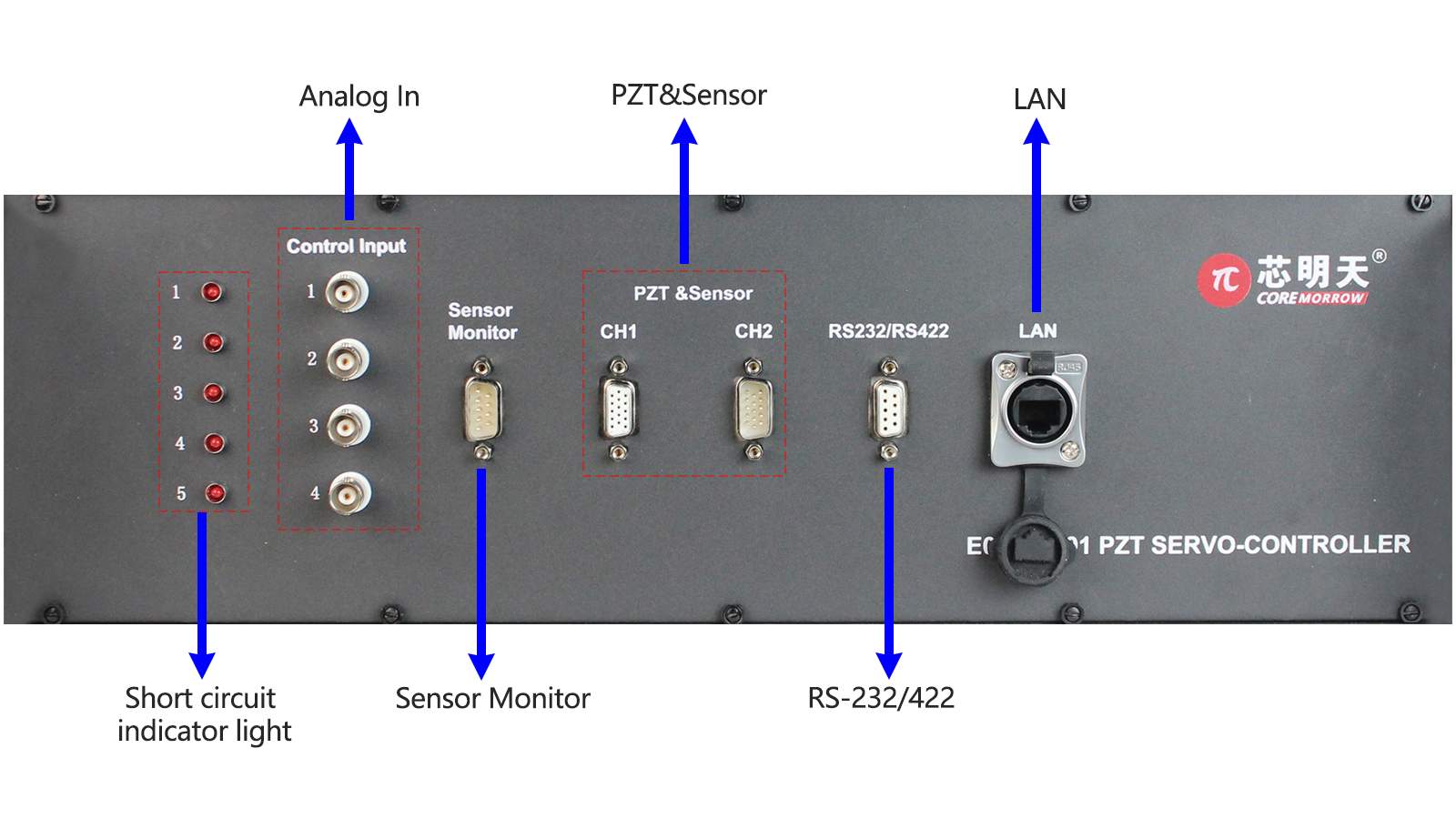

Front Panel
|

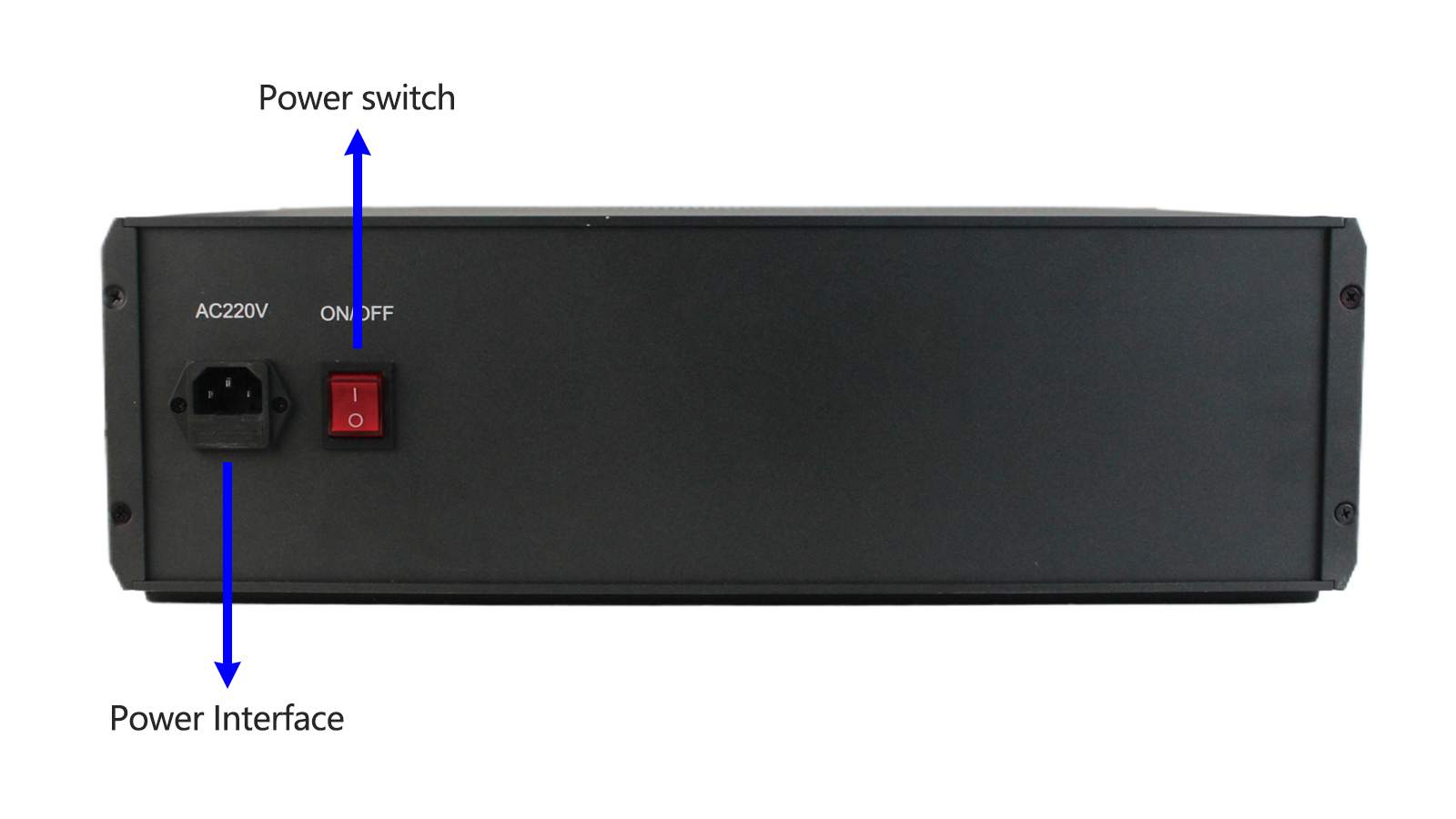

Rear Panel
|

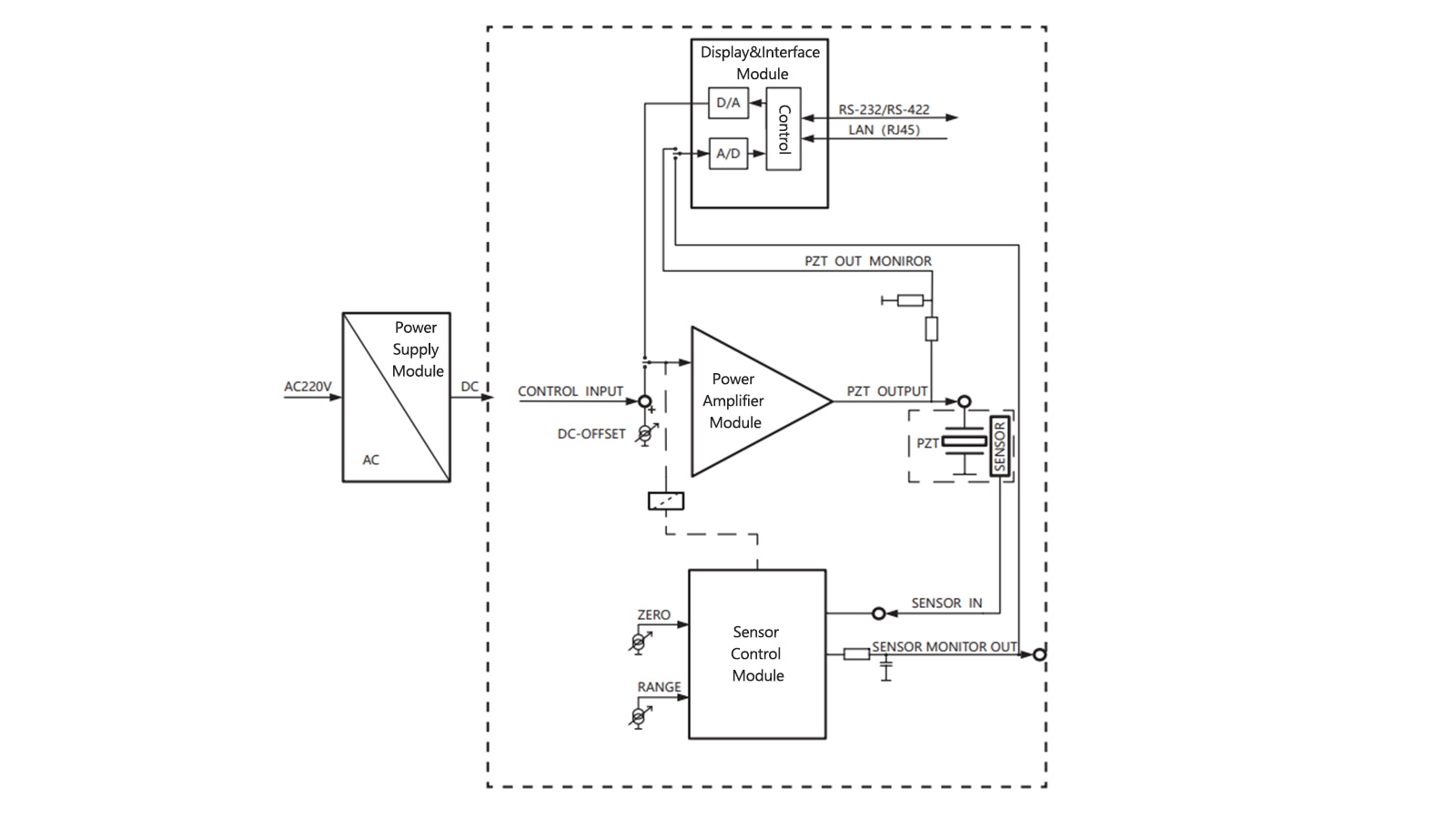

Principle
|
| Technical Data | |
|
Type |
E00.D5K01 |
|
Drive |
|
|
Channels |
5 |
|
Analog input(V) |
CH1~CH4: 0~10 |
|
Output voltage(V) |
0~150, the 5th channel constant outputs 150V |
|
Ripple(mV) |
5mV@2.2μF |
|
Amplifier (-3dB) bandwidth(kHz) |
10 |
|
Ave. Current(mA) |
220 |
|
Peak Current(mA) |
1 |
|
Analog in&external input interface |
BNC |
|
PZT interface |
DB15 male×1+DB15 female ×1 |
|
Servo control |
|
|
Sensor type |
SGS |
|
Servo |
Analog P-I +Notch filter |
|
Sensor input interface |
DB15 male×1+DB15 female ×1 |
|
Channels of Sensor input |
4 |
|
Channels of Sensor input |
DB9 male |
|
Sensor output voltage(V) |
0~10 |
|
Communication |
|
|
Computer interface |
RS-232/422,LAN（RJ45） |
|
Baud rate |
9600,19200,38400,57600,76800,115200, 128000,230400,256000,5250000 |
|
PC software control function |
Output voltage & displacement,waveform control, setting parameters
|
|
PC software waveform control |
Programmable/standard waveform output
|
|
Secondary development |
VC++, Matlab, LabView, DLL dynamic link library functions, etc
|
|
Others |
|
|
Operating temperature(°C) |
0~50 |
|
Operating temperature(°C) |
AC220V（200V~240V） |
|
Current limit |
Short-circuited proof |
|
Static power(W) |
32 |
|
Size(mm) |
449×134×315 |
|
Mass(kg) |
15.5 |
