E00.D12AL-V4 Chassis-type Piezo ControllerCurrent Location：Product Homepage >> Modular piezo controller>>E00.D12AL-V4 Chassis-type Piezo Controller
  • Introduction
  • Feedback

        This chassis-type piezo controller has both 4-channel and 8-channel versions, which can be controlled through analog or digital signals. It can communicate with the upper computer through RS-232/422 serial port or USB interface, and its output voltage resolution can reach 1/1000000 of the full stroke. It is suitable for driving high-precision piezo actuators such as piezo nanopositioning stage/piezo z/tip/tilt/rotation stage.


Characteristics


 4 or 8 channels output

 0~150V output

 Bandwidth to 10kHz

 Servo control

Analog or digital control Output voltage resolution: 1/1000000 of the full stroke


E00.D12AL-V4（8-channel）front panel

E01.D4K01（4-channel）front panel

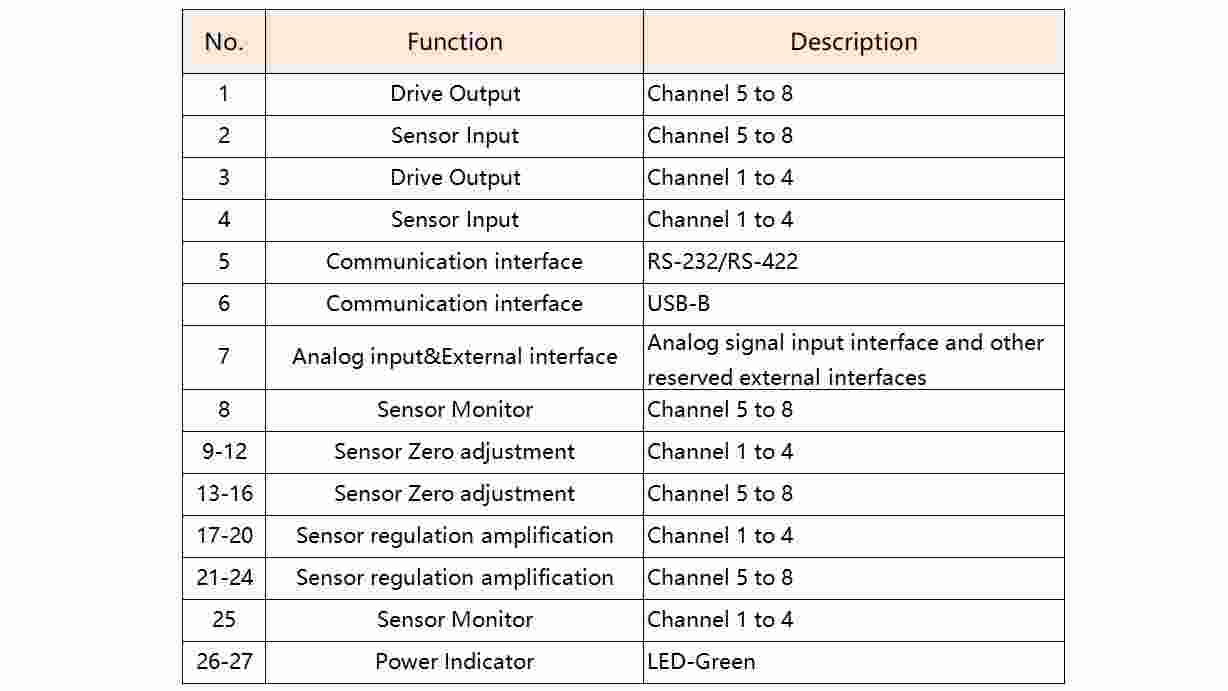

Interface Description

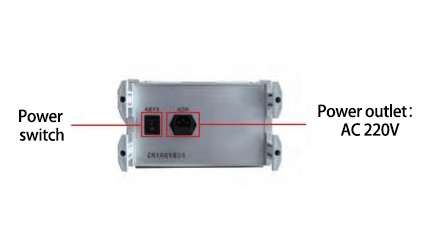

Rear panel

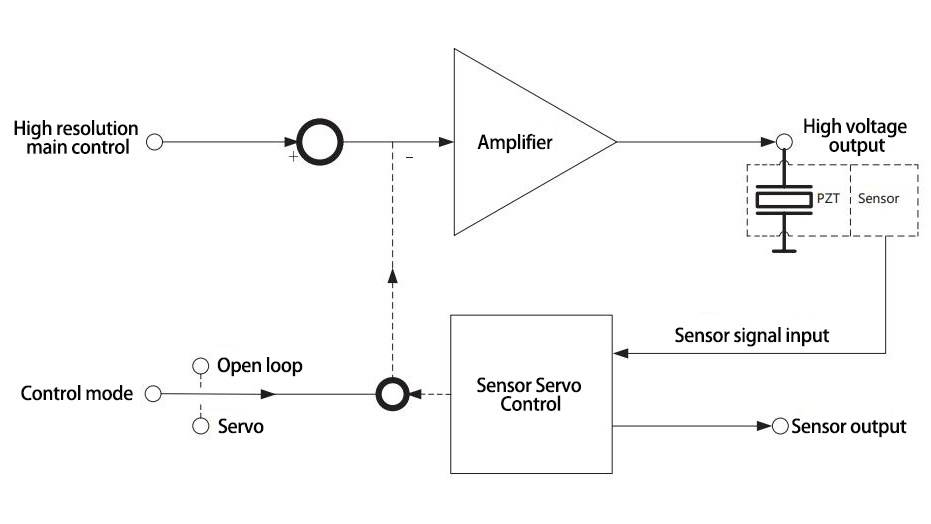

Principle


Applications


 Driving Piezo Nanopositioning Stage

Driving Piezo Z/Tip/Tilt/Rotation Stage

Driving bipolar piezo products,etc.

    Technical Data
Type E00.D12AL-V4
 E01.D4K01
Drive
Channels 8 4
Analog input(V) 0~10
 0~10
Output voltage(V) 0~150
0~150
Ripple(mV) 5 5
Amplifier (-3dB) bandwidth(kHz) 10 10
Ave. Current(mA) 69 69
Peak Current(mA) 550 550
Analog in&external input interface
 ZCG.2B.312.CLV
 ZCG.2B.312.CLV
PZT interface
 J14A-9ZK1B
 J14A-9ZK1B
Servo control
Sensor type SGS(or LVDT, CAP)
 SGS(or LVDT, CAP)
Servo Analog P-I +Notch filter
 Analog P-I +Notch filter
Sensor input interface J14A-15ZK1B
 J14A-15ZK1B
Channels of Sensor input 8 4
Sensor monitor interface LEMO-EPG-0B-305
 LEMO-EPG-0B-305
Sensor output voltage(V) 0~10
 0~10
Communication
Computer interface RS-232/422、USB-B
 RS-232/422、USB-B
Baud rate 9600、19200、38400、57600、76800、115200、128000、230400、256000、5250000
 9600、19200、38400、57600、76800、115200、128000、230400、256000、5250000
Output wave frequency (kHz) 10
 10
D/A converter 24 Bit±10V
 24 Bit±10V
Output voltage resolution 1/1000000
 1/1000000
Others
Operating temperature(°C) 0~50
 0~50
Power supply(V) AC220V（200V~240V）
 AC220V（200V~240V）
Current limit Short-circuited proof
 Short-circuited proof
Input power(W) 43
 40
Static power(W) 25 20
Size(mm) 280×175×375
 280×175×375
Mass(kg) 7.6 7
     Drawings（Click on the picture to enlarge it）
Click on the picture to enlarge it
    Downloads
Auto CAD PDF
Step
Specs Sheet

Manual
