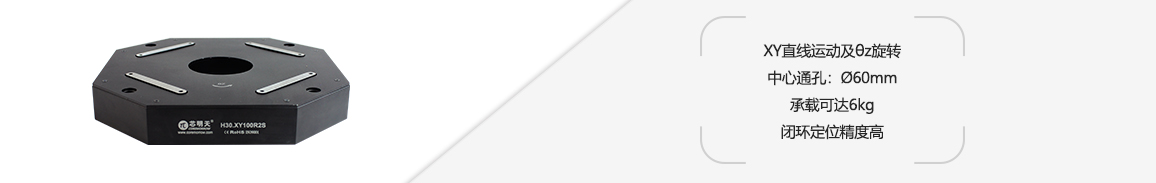

H30 is a piezo scanning and rotation stage with 3 axes motion in X, Y and θz, and with a Ø60mm central large aperture. It adopts frictionless flexible hinge structure design, featuring fast response speed and high precision of closed-loop positioning. The central large aperture makes it easy to integrate into microscopic and scanning optical system.


Characteristics


 X, Y and θz motion

 Aperture of Ø60mm

 Load capacity to 6kg

 High closed-loop positioning accuracy

 Resolution in XY to 2nm

 Resolution in θz to 0.1μrad

 Linear travel range to 140μm/axis

 Rotation angle range to 2mrad






   Technical Data

Type

H30.XY100R2S

H30.XY100R2K

Units

 Active axes

X、Y、θz

X、Y、θz



 Drive control

4 driving channels
3 sensing channels

4 driving channels

 XY travel range(0~120V)

±56/axis

±56/axis

μm±10%

 XY travel range(0~150V)

±70/axis

±70/axis

μm±10%

 θz angle range(0~120V)
1.6(≈330″)
1.6(≈330″)
mrad±10%
 θz range(0~150V)
2(≈413″)
2(≈413″)
mrad±10%

 Sensor

SGS

-



 Resolution in XY

6

2

nm

 Resolution in θz
0.3(≈0.06 0.1(≈0.02

μrad

 Linearity in XY

X0.14/Y0.125

-

%F.S.

 Linearity in θz

0.07

-

%F.S.

 Repeatability in XY
X0.057/Y0.018 -
%F.S.

 Repeatability in θz

0.03

-

%F.S.

 Unloaded resonant frequency

XY450/θz330

XY450/θz330

Hz±20%

 Loaded resonant frequency@6kg

XY110/θz85

XY110/θz85

Hz±20%

 El. capacitance

XY15/θz28.8

XY15/θz28.8

μF±20%

 Step time
150@6kg
5 ms±20%

 Load capacity

6

6

kg

 Material

Aluminum alloy



 Mass(Cable not included)

2.3

kg±5%

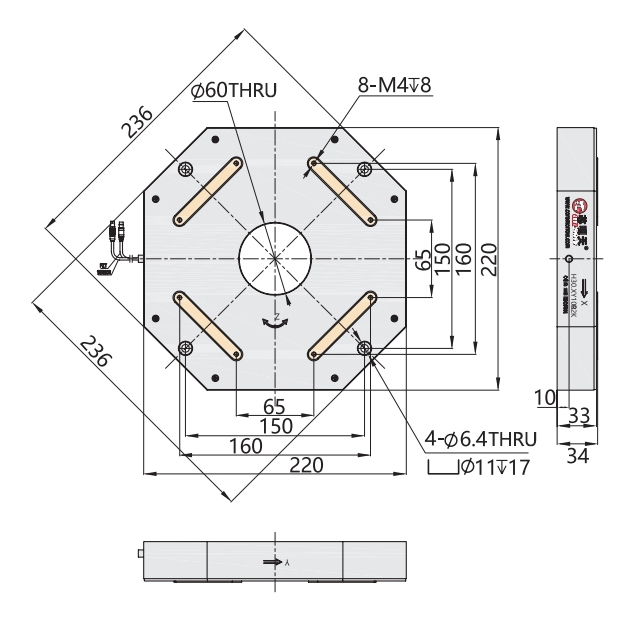

    尺寸图 (点击图片可放大查看)
点击图片可放大查看
    尺寸图、参数表、使用说明书下载
Auto CAD PDF
Step
参数表/Specs Sheet
使用说明书/Manual
