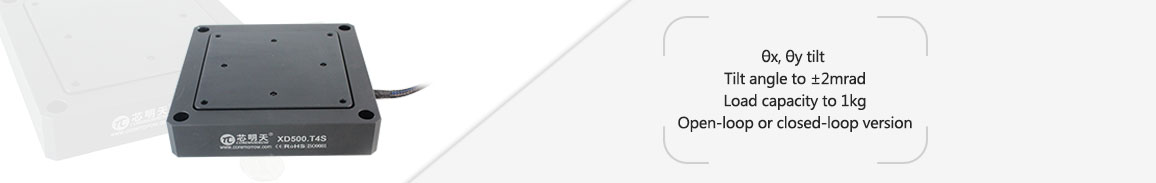

The XD500.T4 piezo tip/tilt platform is a two-dimensional motion platform. Its carrying capacity can reach 1kg, and its large moving platform is suitable for the installation and deflection of large mirrors.
Characteristics
|
|
|
|
|
θx, θy tiltApplications
|
|
|
|
|
| Technical Data | |||
|
Type |
XD500.T4S |
XD500.T4K |
Units |
|
Active axes |
θx、θy |
θx、θy |
|
|
Drive control |
3 driving channels 2 sensing channels |
3 driving channels |
|
|
Driving channels |
3 |
3 |
|
|
Nominal travel range(0~120V) |
±1.6 |
±1.6 |
mrad±10% |
|
Max.travel range(0~150V) |
±2 |
±2 |
mrad±10% |
|
Sensor |
SGS |
- |
|
|
Closed/open-loop resolution |
0.5（≈0.03”） |
0.1（<0.01”） |
μrad |
|
Linearity |
0.3 |
- |
%F.S. |
|
Repeatability |
0.2 |
- |
%F.S. |
|
Unloaded resonant frequency |
280 |
280 |
Hz±20% |
|
Resonant frequency@1kg |
100 |
100 |
Hz±20% |
|
Load capacity |
1 |
1 |
kg |
|
El. capacitance |
10.8/axis |
10.8/axis |
μF±20% |
|
Material |
Steel, aluminum |
Steel, aluminum |
|
|
Mass |
1575 |
1575 |
g±5% |
