XD504 Piezo Tip/Tilt StageCurrent Location：Product Homepage >> Piezo Z/Tip/Tilt Stages>>XD504 Piezo Tip/Tilt Stage
XD504 Piezo Tip/Tilt Stage
  • Introduction
  • Feedback

Characteristics


 Active axes：θx, θy

 Sensor：SGS

 Linearity：0.2 %F.S.

 Material：Steel, Aluminum

    Technical Data
 Type XD504.T2S/K Units
 Active axes θx、θy
 Drive control 3 driving channels 2 sensing channels
 Sensor SGS
 Travel range(0~150V) ±1/axis mrad±20%
 Load capacity 2 kg
 Unloaded resonant frequency 400 Hz±20%
 Resonant frequency@1.8kg load 200 Hz±20%
 Closed loop resolution 0.5 μrad
 Linearity 0.2 %F.S.
 Repeatability 0.2 %F.S.
 Unloaded step time 40 ms
 El. capacitance 28.8 μF±20%
 Mass(Not include cable) 3.2 kg±5%
 Material Steel, Aluminum

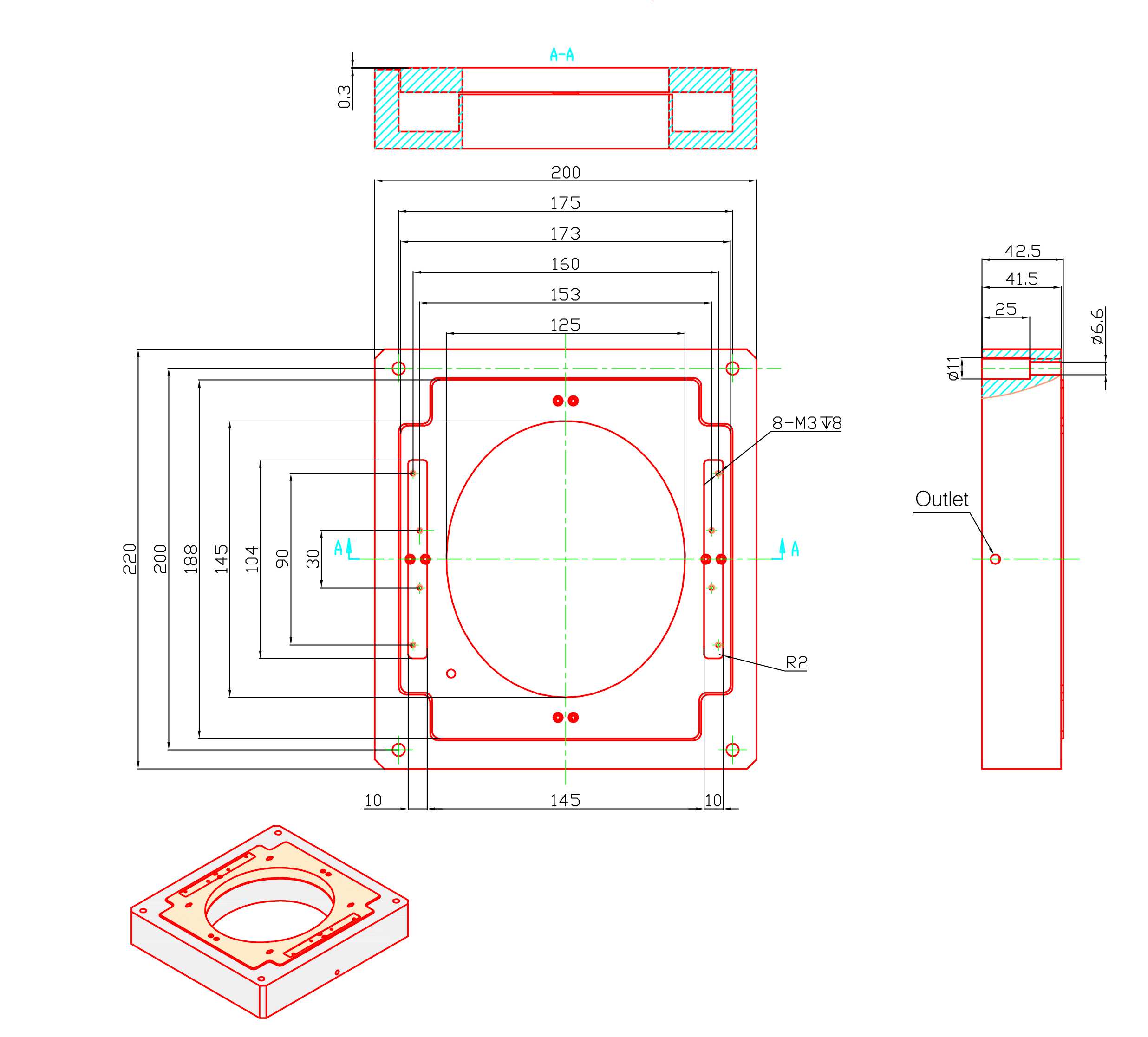

    Drawings（Click on the picture to enlarge it）
点击图片可放大查看
    Downloads
Auto CAD PDF
Step
Specs Sheet
Manual
