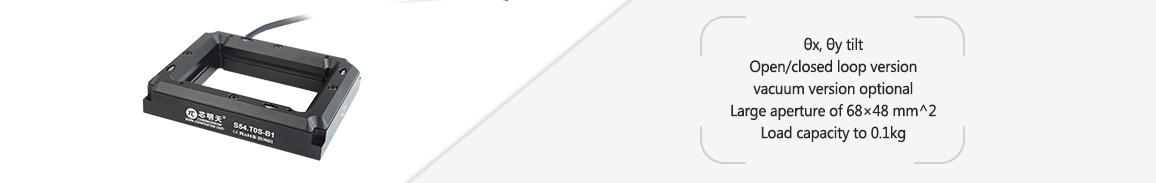

S54.T0 is a customized piezo tip/tilt stage that tilts in θx, θy. It adopts a frictionless flexible hinge structure design with fast response speed and high closed-loop positioning accuracy. It is compact and features a large center through-hole, makes it easy to integrate into the systems of microscopy and scanning optical system.
Characteristics
|
|
|
|
|
Application
|
|
|
|
|
| Technical Data | ||||
|
Type |
S-closed loop K-open loop |
S54.T0S |
S54.T0K |
Units |
|
Active axes |
θx，θy |
θx，θy |
|
|
|
Drive control |
3 driving channels 2 sensing channels |
3 driving channels |
|
|
|
Norminal tilt angle(0~120V) |
±0.4(≈±83″) |
±0.4(≈±83″) |
mrad±10% |
|
|
Max.tilt angle(0~150V) |
±0.5(≈±103″) |
±0.5(≈±103″) |
mrad±10% |
|
|
Integrated sensor |
SGS |
- |
|
|
|
Tilt resolution |
0.04(＜0.01″) |
0.015(＜0.01″) |
μrad |
|
|
Linearity |
θx0.06/θy0.05 |
- |
%F.S. |
|
|
Repeatability |
θx0.04/θy0.03 |
- |
%F.S. |
|
|
Unloaded resonant frequency |
θx0.7/θy0.6 |
θx0.7/θy0.6 |
kHz±20% |
|
|
Loaded resonant frequency@100g |
θx0.3/θy0.4 |
θx0.3/θy0.4 |
kHz±20% |
|
|
Unloaded step time |
12 |
1 |
ms±20% |
|
|
Load capacity |
0.1 |
0.1 |
kg |
|
|
El. capacitance |
1.6/axis |
1.6/axis |
μF±20% |
|
|
Material |
Al, Steel |
Al, Steel |
|
|
|
Mass |
330(with cable) |
330(with cable) |
g±5% |
|
