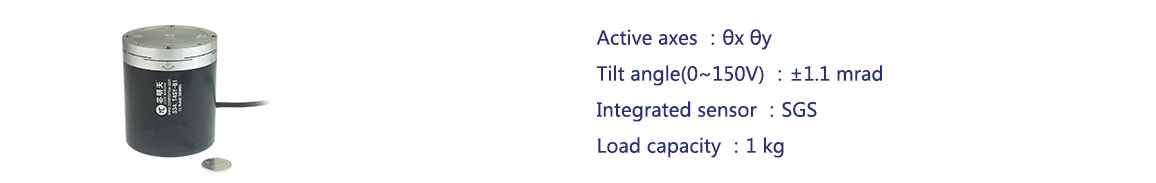

Characteristics
θx、θy Active axes |
Tilt angle ±1.1 mrad |
Load capacity 1 kg |
Integrated sensor SGS |
Technical Data | |||
Type |
S34.T4SY |
S34.T4KY |
Units |
Active axes |
θx、θy |
θx、θy |
|
Drive control |
3 driving channels 2 sensing channels |
3 driving channels |
|
Tilt angle(0~150V) |
±1.1 |
±1.1 |
mrad±20% |
Integrated sensor |
SGS |
- |
|
Resolution |
0.06(≈ 0.01 ″) |
0.02(< 0.01 ″) |
μrad |
Unloaded resonant frequency |
2350 |
2350 |
Hz±20% |
Resonant frequency@800g |
600 |
600 |
Hz±20% |
El. capacitance |
52.8/ /axis |
52.8/ /axis |
μF±10% |
Load capacity |
1 |
1 |
kg |
Materia |
Steel, Aluminum |
Steel, Aluminum |
|
Mass |
1360 |
1360 |
g±5% |
Note: Above parameters are measured with the E00/E01 piezo controller. The maximum driving voltage can be -20V~150V; For high-reliability and long-term operation, the recommended drivi ng voltage is 0~120V.
|
|
