XD304-B1 Piezo Fast Steering Mirror is specially designed for small size, micro stroke and high frequency applications. It can perform θx θy two-dimensional precision angular deflection motion. It is an ideal compact fast-reflection mirror, which is very suitable for deflection adjustment of small reflective mirrors.

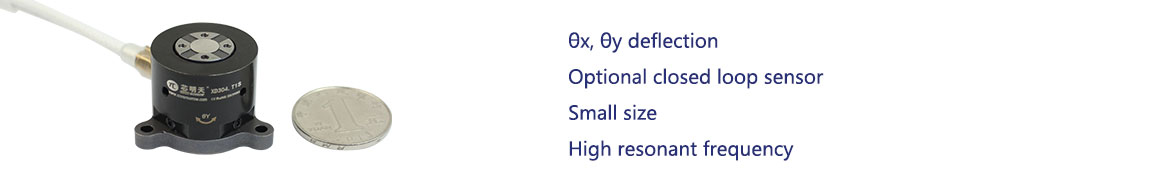

Characteristics
|
|
|
|
|
Application
|
|
|
|
|
| Technical Data | |||
|
Type |
XD304.T1S-B1 XD304.T1K-B1 |
XD304.T2S-B1 XD304.T2K-B1 |
Units |
|
Active axes |
θX/θY |
θX/θY |
|
|
Drive control |
3 driving channels 2 sensing channels |
3 driving channels 2 sensing channels |
|
|
Tilt angle(0~100V) |
1 or ±0.5(≈±103") |
2 or ±1(≈±206") |
mrad±10% |
|
Tilt angle(0~120V) |
1.2 or ±0.6(≈±123") |
2.4 or ±1.2(≈±247") |
mrad±10% |
|
Sensor |
SGS/- |
SGS/- |
|
|
Resolution |
0.03(<0.01″)/0.01(<0.01″) |
0.07(≈0.01″)/0.02(<0.01″) |
μrad |
|

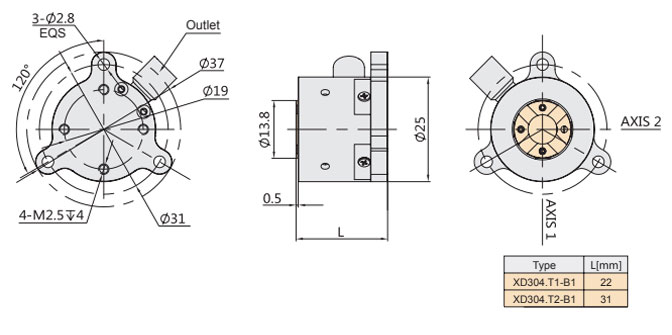

Size |
Φ25×22 |
Φ25×31 |
mm |
|
Unloaded resonant frequency |
15 |
10 |
KHz±20% |
|
Resonant frequency with load
|
11.6 |
4.2 |
KHz±20% |
|
El. capacitance |
0.8/ axis |
1.6/ axis |
μF±20% |
|
Material |
Titanium, steel |
Titanium, steel |
|
|
Mass (not include cable) |
<60 |
70 |
g±5% |
|
Line position |
Side |
Side |
|
Note: Above parameters are measured with the E00/E01 piezo controller. The maximum driving voltage can be -20V~150V; For high-reliability and long-term operation, the recommended driving voltage is 0~120V.
