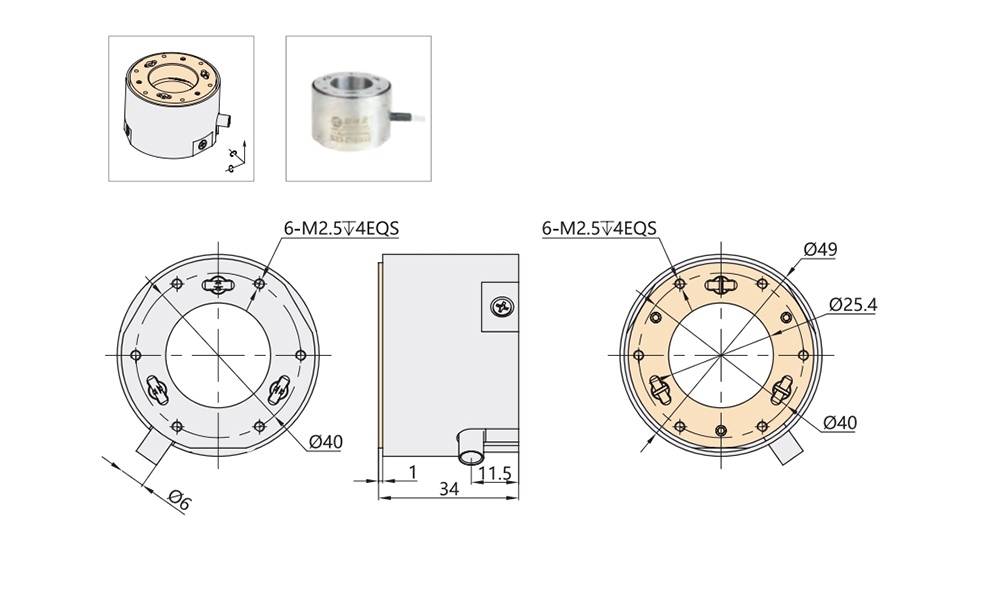

S23.ZT0S/K25 is small-sized piezo Z/tip/tilt platform with a volume of Ø49×34mm that allows deflection in θx, θy and motion in Z-axis, it can achieve a deflection travel of ±0.5mrad/axis in θx and θy, and a linear travel of 20.5μm in Z. The open-loop version features extremely high resolution and sub-millisecond response speed. The device is equipped with a aperture of Ø25.4mm, making it suitable for light-transmitting applications such as light filtering.
Characteristics
|
|
|
|
|
 Unloaded resonant frequency up to 4.2kHz
|
|
|
|
Applications
|
|
|
|
|
|
Beam stability
|
Phase shifter
|
|
|
|

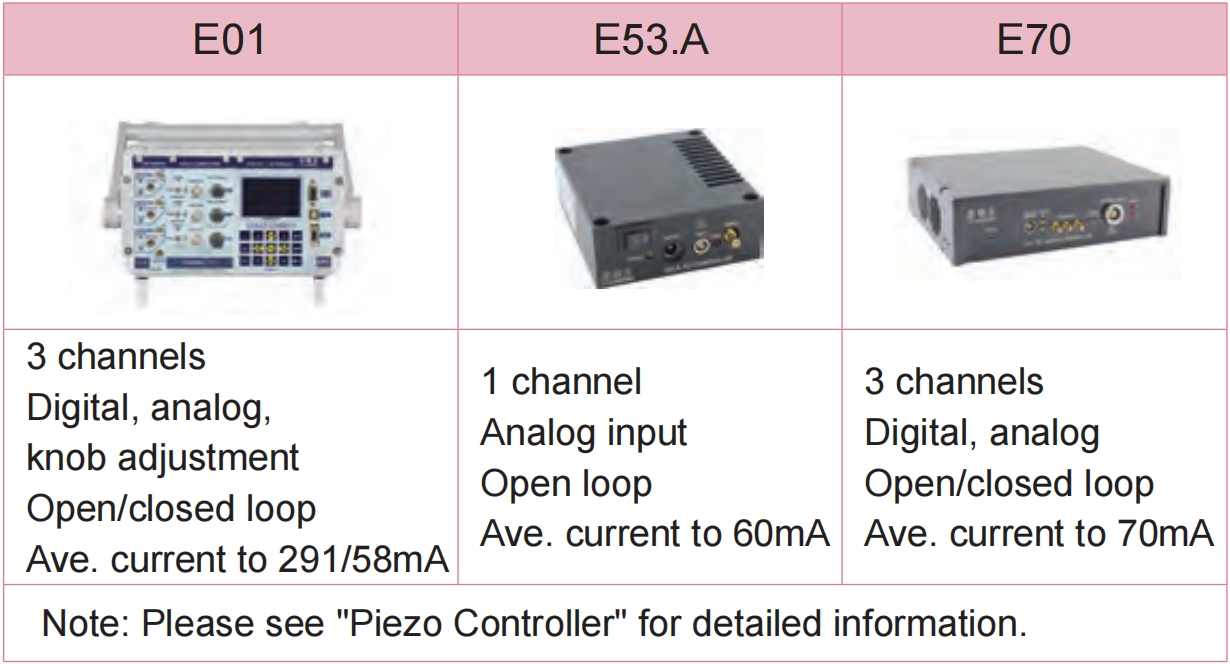

Recommended Controller  |
| Technical Data | ||||
|
Type |
S-Closed loop
K-Open loop |
S23.ZT0S25
|
S23.ZT0K25
|
Units |
|
Active axes |
θx、θy、Z |
θx、θy、Z |
|
|
|
Drive control |
3 driving channels |
3 driving channels |
|
|
| Nominal travel in Z(0~120V) | 13.5 | 13.5 |
μm±10% |
|
|
Max.travel in Z(0~150V) |
17 | 17 |
μm±10% |
|
|
Nominal tilt angle(0~120V) |
±0.35/axis（≈±72''） |
±0.35/axis（≈±72''） |
mrad±10% |
|
|
Max. tilt angle(0~150V) |
±0.45/axis（≈±93''） |
±0.45/axis（≈±93''） |
mrad±10% |
|
|
Integrated sensor |
SGS |
- |
|
|
| Aperture |
Ø25.4 |
Ø25.4 |
mm | |
| Resolution in Z | 0.68 | 0.02 | nm | |
| Resolution in θx θy |
0.03（<0.01''） |
0.001（<0.01''） |
μrad |
|
|
Linearity |
θxθy0.07/Z0.3 |
- |
%F.S. |
|
|
Repeatability |
θx0.08/θy0.06/Z0.1 |
- |
%F.S. |
|
|
Unloaded resonant frequency |
6 |
6 |
kHz±20% |
|
|
Resonant frequency@50g |
θx1.7/θy2/Z2.3 |
θx1.7/θy2/Z2.3 |
kHz±20% |
|
| Load capacity | 50 | 50 | g | |
| El.capacitance | 2/axis |
2/axis |
μF±20% |
|
| Step time |
10@50g |
4 |
ms±20% |
|
|
Material |
Stainless steel |
Stainless steel |
|
|
| Cable length | 1.5 | 1.5 | m±0mm | |
|
Mass(not include cable) |
250 |
250 |
g±5% |
|
|
|
|
