        S31 is θx, θy piezo tip/tilt platform, with two ranges available: 3.8mrad and 8.5mrad. The closed-loop version has a full bridge design which avoids temperature drift and ensures the high accuracy.

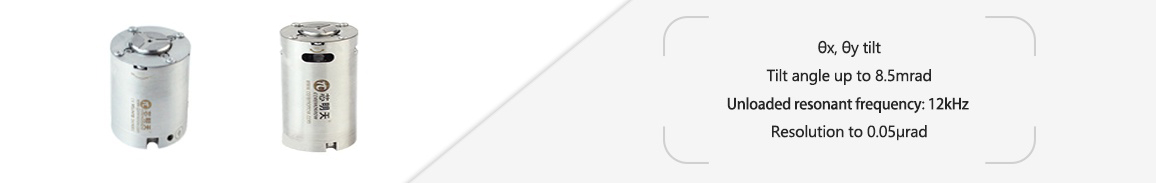

Characteristics


 θx、θy tilt

 Tilt angle up to 8.5mrad

  Resolution to 0.05μrad

  Unloaded resonant frequency: 12kHz

    Technical Data

Type

S31.T2S
S31.T2K

S31.T4S
S31.T4K

Units

Active axes

θx、θy

θx、θy



Drive control

3 driving channels
2 sensing channels

3 driving channels
2 sensing channels



Nominal tilt angle(0~120V)

3/±1.5(≈±309″)

6.8/±3.4(≈±700″)

 mrad±10%

 Max.tilt angle(0~150V)
3.8/±1.9(≈±392″)

8.5/±4.25(≈±877″)

mrad±10%

Integrated sensor

SGS/-

SGS/-


Resolution

0.5(≈0.1″)/0.05(≈0.01″)

0.5(≈0.1″)/0.1(≈0.02″)

μrad

 Linearity 0.5/-
0.5/-
%F.S.
 Repeatability 0.5/-
0.3/-
%F.S.

Unloaded resonant frequency

12

11.5

KHz±20%

Resonant frequency@Φ12.7×3mm mirror

9

9

KHz±20%

El.capacitance

1.6/ axis

3.2/ axis

μF±20%

Material

Steel, Ti

Steel, Ti


Mass(including wires and connectors)

115

148

g±5%

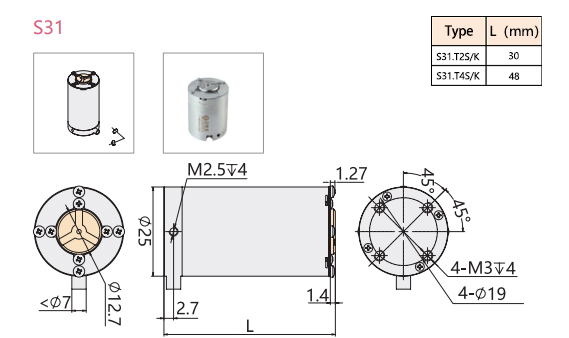

      Drawing (Click on the picture to enlarge it)
点击图片可放大查看
     Downloads
Auto CAD PDF
Step

Specs Sheet

Manual
