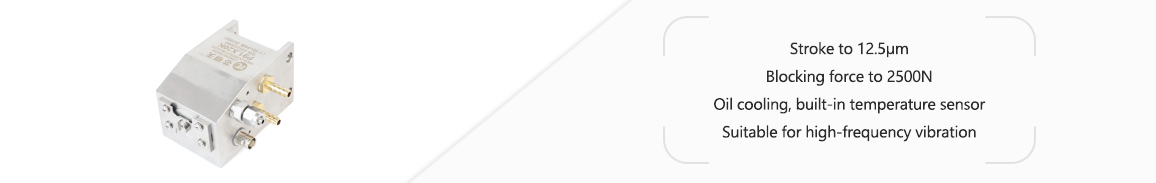

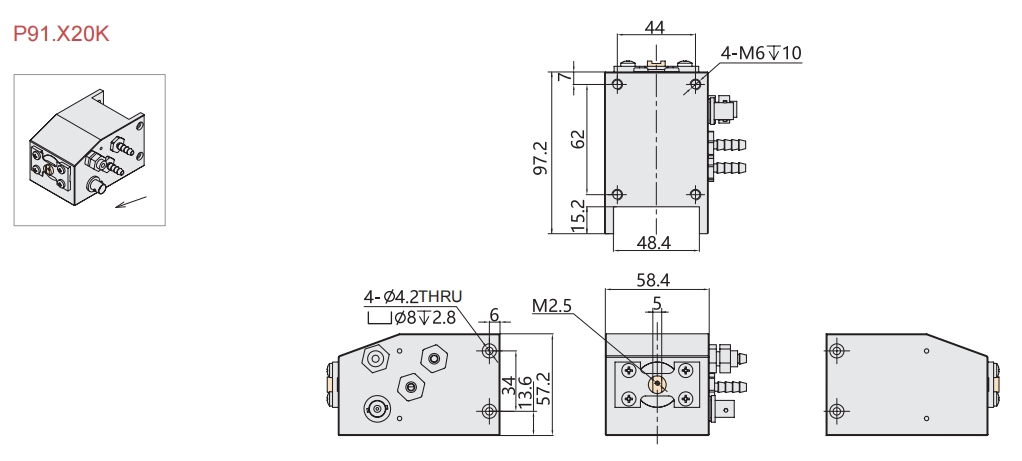

P91.X20K fast tool positioning stage is designed for microfeeding in ultra-precision turning. There is a temperature sensor installed inside. The stage can be cooled down through oil cooling to achieve high-frequency vibration, and its unloaded resonant frequency is up to 15kHz.
Characteristics
|
|
|
|
|
|
|
|
|
|
| Technical Data | |||
|
Type |
P91.X20K |
Units |
|
|
Active axes |
X |
|
|
|
Drive control |
1 driving channel |
|
|
|
Nominal travel range(0~400V) |
10 |
µm±10% |
|
|
Max.travel range(0~500V) |
12.5 |
µm±10% |
|
|
Resolution |
0.5 |
nm |
|
|
Unloaded resonant frequency |
15 |
KHz±20% |
|
|
El. capacitance |
0.314 |
μF±20% |
|
|
Blocking force |
2500 |
N |
|
|
Stiffness |
250 |
N/μm±20% |
|
|
Material |
Steel, Al |
|
|
|
Mass |
1.75 |
kg±5% |
|
|
Operating temperature |
-20~80 |
℃ |
|
|
Load capacity |
Horizontal |
0.3 | kg |
|
Vertical |
0.5 | ||
|
Inverted |
0.3 | ||
| Mounting Method |
Horizontal Mounting |
Vertical Mounting |
Inverted Mounting |
| Definition |
Place the PZT platform horizontally for installation, with the moving surface located above the PZT platform and parallel to the horizontal plane.
PS: Default direction for carrying capacity in the parameter table
|
Place and install the PZT platform vertically, with the moving surface parallel to the direction of gravity
|
Place the PZT platform horizontally, but the moving surface is located below the PZT platform |
| Diagram |
 |
 |
 |
| Note |
When the mounting method is selected as vertical mounting, pay attention to the outlet port |
||
