The interior of the XD810 piezo stage is divided into a vibration structure and a shock-absorbing (vibration-damping) structure. The vibration and displacement output is performed by controlling the vibration structure, and the vibration and displacement output is reversely controlled by the algorithm to control the vibration-damping structure.
|

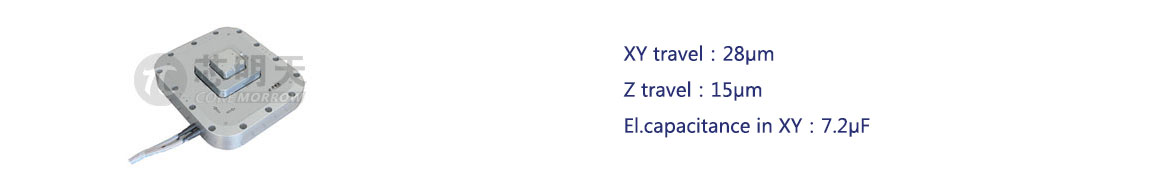

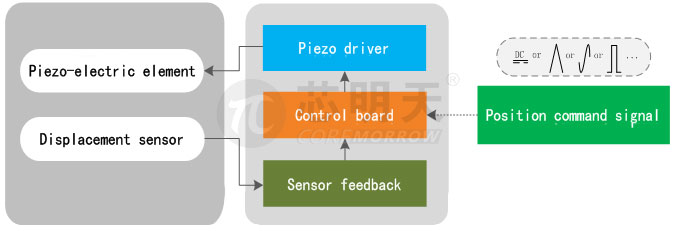

Principle The basic control principle block diagram of the closed-loop multi-dimensional vibration system is shown below.
|

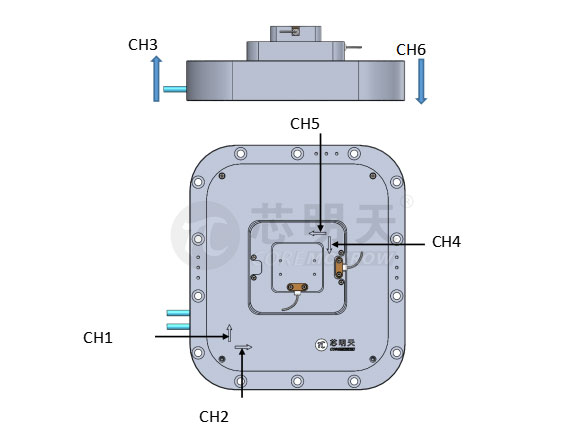

Schematic Diagram of XD810 Control Channel
|
Recommended Piezo Controller E01.D6 Piezo Controller(6 channels)
|
| Technical Data | ||
|
Type |
XD810 Specs |
|
|
Performance |
Vibration structure |
Vibration-damping structure |
|
XY travel |
28um±20% |
28um±20% |
|
Z travel |
15um±20% |
15um±10% |
|
X resonance |
500Hz±20% |
500Hz±20% |
|
Y resonance |
450Hz±20% |
400Hz±20% |
|
Z resonance |
400Hz±20% |
240Hz±20% |
|
Max. Operating frequency
|
20Hz±20% |
20Hz±20% |
|
El.capacitance in XY
|
7.2μF/axis±20% |
7.2μF/axis±20% |
|
El.capacitance in Z
|
5.7μF±20% |
3.6μF±20% |
