- Introduction
- Feedback

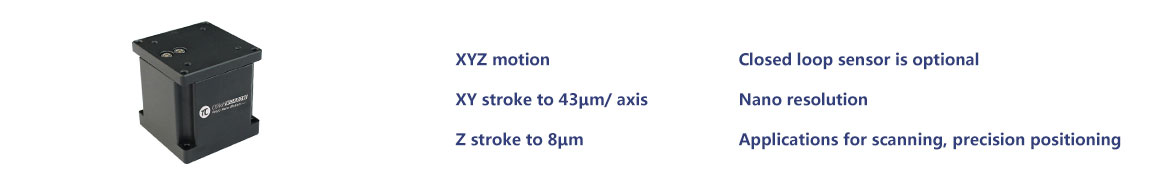

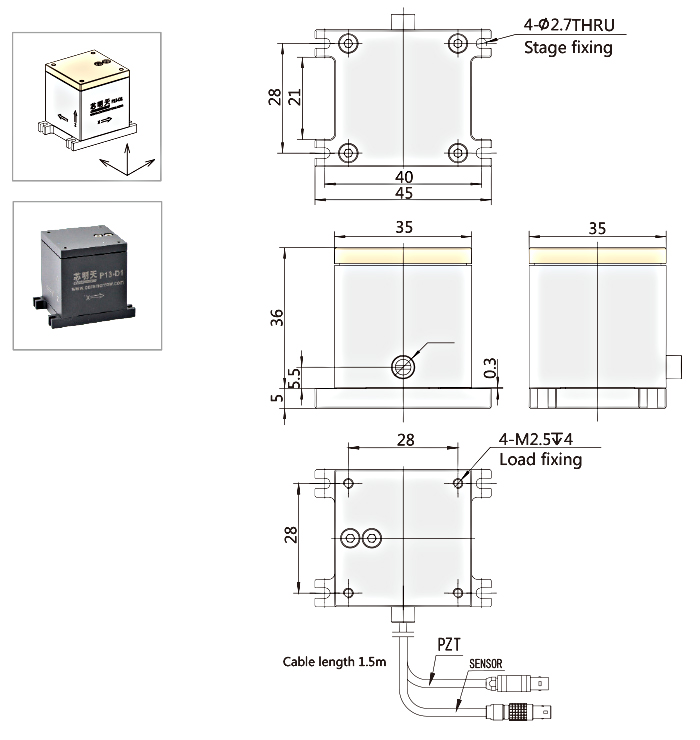

Characteristics
|
|
|
|
|
| Technical data | |||
|
Models |
S-Closed loop K-Open loop |
P13.XY50Z7S
|
Units |
|
Active axes |
XYZ |
|
|
|
Drive control |
3 driving channels 3 sensing channels |
|
|
|
Travel range(0~120V) |
X34/Y34/Z6 |
μm±10% |
|
|
Max.travel range(0~150V) |
X43/Y43/Z8 |
μm±10% |
|
|
Integrated sensor |
SGS/- |
|
|
|
Closed/open loop resolution |
XY1.5/0.5、 Z0.5/0.1 |
nm |
|
|
Closed-loop linearity |
0.2/- |
%F.S. |
|
|
Repeatability |
0.1/- |
%F.S. |
|
|
Pitch/Yaw/Roll |
- |
μrad |
|
|
Push/pull force capacity |
- |
N |
|
|
Stiffness |
|
N/μm±20% |
|
|
Unloaded resonant frequency |
X0.55/Y0.52/Z8.7 |
kHz±20% |
|
|
Closed/open-loop unloaded Step time |
30/3 |
ms±20% |
|
|
Load capacity |
Horizontal |
0.8 |
kg |
|
Vertical |
0.02 | ||
|
Inverted |
0.05 | ||
|
Electrical capacitance |
0.8/axis |
μF±20% |
|
|
Material |
|
|
|
|
Mass |
200 |
g±5% |
|
Note: Max driving voltage could be -20V~150V, Recommended voltage 0~120V for long-term operation to extend lifetime.
Technical data are measured by CoreMorrow E00/E01 series piezo controller.
| Mounting Method |
Horizontal Mounting |
Vertical Mounting |
Inverted Mounting |
| Definition |
Place the PZT platform horizontally for installation, with the moving surface located above the PZT platform and parallel to the horizontal plane.
PS: Default direction for carrying capacity in the parameter table
|
Place and install the PZT platform vertically, with the moving surface parallel to the direction of gravity
|
Place the PZT platform horizontally, but the moving surface is located below the PZT platform |
| Diagram |
 |
 |
 |
| Note |
When the mounting method is selected as vertical mounting, pay attention to the outlet port |
||
