XD611.Z300 Piezo Nanopositioning Stage
  • Introduction
  • Feedback

XD611.Z300 piezo nanopositioning stage moves in Z, its travel is up to 300μm, and it's designed for the applications in cryo and vacuum environment.

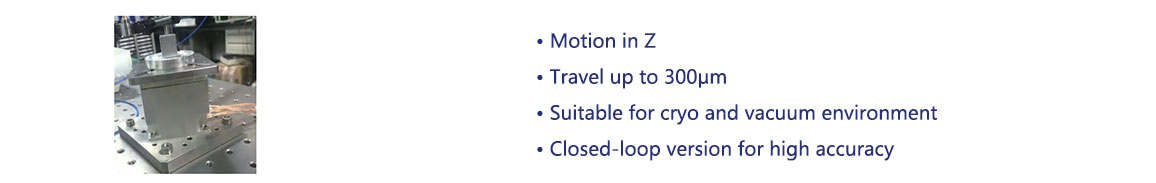

Characteristics


 Motion in Z

 Travel up to 300μm

 Suitable for cryo and vacuum environment

 Closed-loop version for high accuracy


XD611.Z300S/K


Applications


 Surface inspection

 Microscopy imaging

 Cyro and vacuum application

 Semiconductor processing and test

    Technical Data

Type

XD611.Z300S

XD611.Z300K

Units

Active axes

Z

Z



Drive control

3 driving channels 3 sensing channels

3 driving channels



Nominal travel(0~120V)

240

240

µm±20%

Max.travel(0~150V)

300

300

µm±20%

Unloaded resonant frequency

105

105

Hz±20%

Loaded resonant frequency

30(@300g)

30(@300g)

Hz±20%

Sensor

SGS

-


Resolution

10

3

nm

Linearity

0.5

-

%F.S.

Repeatability

0.15

-

%F.S.

El.capacitance

5.4

5.4

μF±20%

Load capacity

Horizontal

0.3

0.3

kg

Vertical
0.02 0.02
Inverted
0.02 0.02

Material

Ti

Ti


Note: Max driving voltage could be -20V~150V, recommended voltage 0~120V for long-term and high-reliable operation to extend lifetime. Technical data is measured by CoreMorrow E00/E01 series piezo controller.


Mounting Method Horizontal Mounting
Vertical Mounting
Inverted Mounting
Definition
   Place the PZT platform horizontally for installation, with the moving surface located above the PZT platform and parallel to the horizontal plane.
PS: Default direction for carrying capacity in the parameter table

  Place and install the PZT platform vertically, with the moving surface parallel to the direction of gravity
PS:There are multiple vertical installation methods, and the technical data corresponds to the minimum load capacity

  Place the PZT platform horizontally, but the moving surface is located below the PZT platform

Diagram


Note

When the mounting method is selected as vertical mounting, pay attention to the outlet port

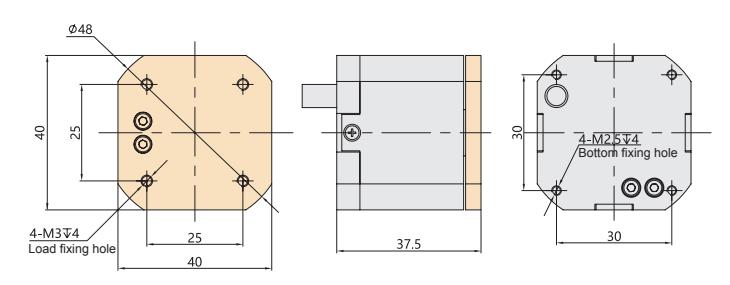

    Drawing(Click on the picture to enlarge it)
Click on the picture to enlarge it
    Downloads
Auto CAD PDF
Step
Specs Sheet
Manual

     3D diagram presentation
