- Introduction
- Feedback

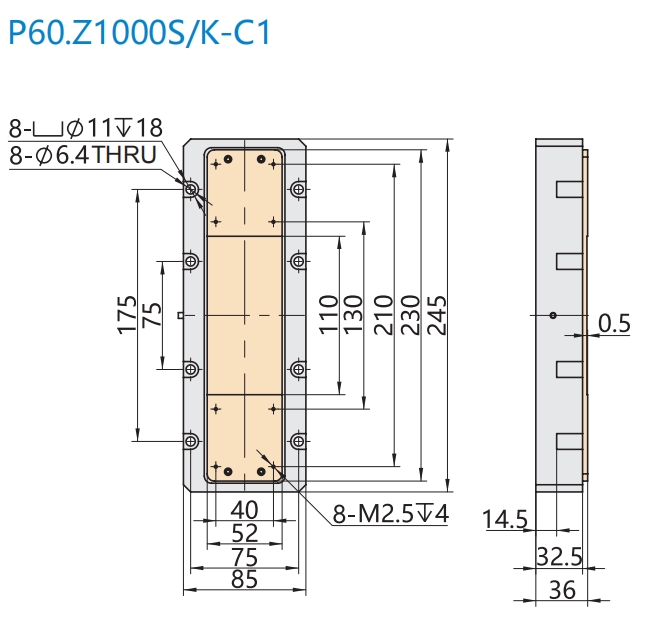

Characteristics
|
|
|
|
|
| Technical Data | ||||
|
Type |
P60.Z1000S-C |
P60.Z1000K-C |
Units |
|
|
Active axes |
Z |
Z |
|
|
|
Drive control |
1 driving channel 1 sensing channel |
1 driving channel 1 sensing channel |
|
|
|
Travel range(0~120V) |
800 |
800 |
µm±10% |
|
|
Max.travel range(0~150V) |
1000 |
1000 |
µm±10% |
|
|
Sensor |
SGS |
- |
|
|
|
Resolution |
35 |
1 |
nm |
|
|
Linearity |
0.2 |
- |
%F.S. |
|
|
Repeatability |
0.1 |
- |
%F.S. |
|
|
Unloaded resonant frequency |
80 |
- |
Hz±20% |
|
|
Load capacity |
Horizontal |
1.5 |
1.5 |
kg |
|
Vertical |
0.02 | 0.02 | ||
|
Inverted |
0.05 | 0.05 | ||
|
El. capacitance |
72 |
72 |
μF±20% |
|
|
Material |
Titanium, aluminum |
Titanium, aluminum |
|
|
|
Mass |
1.46(including wires and connectors) |
1.46(including wires and connectors) |
kg±5% |
|
| Mounting Method |
Horizontal Mounting |
Vertical Mounting |
Inverted Mounting |
| Definition |
Place the PZT platform horizontally for installation, with the moving surface located above the PZT platform and parallel to the horizontal plane.
PS: Default direction for carrying capacity in the parameter table
|
Place and install the PZT platform vertically, with the moving surface parallel to the direction of gravity
|
Place the PZT platform horizontally, but the moving surface is located below the PZT platform |
| Diagram |
 |
 |
 |
| Note |
When the mounting method is selected as vertical mounting, pay attention to the outlet port |
||
