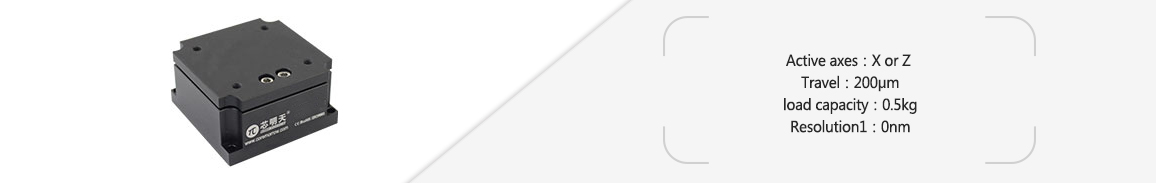

P11.X/Z200 is a small-volume 1 axis piezo nanopositioning stage, its travel range can reach 200μm, the movement direction can be chosen X direction or Z direction, and a closed-loop feedback sensor can be selected to obtain higher precision. Custom low temperature vacuum versions are available.
Characteristics
|
|
|
|
|
| Technical Data | ||||||
|
Type |
P11.X200S |
P11.X200K |
P11.Z200S |
P11.Z200K |
Units |
|
|
Active axes |
X |
X |
Z |
Z |
|
|
|
Drive control |
1 driving channel |
1 driving channel | 1 driving channel 1 sensing channel | 1 driving channel |
|
|
|
Travel range(0~120V) |
160 |
160 |
160 |
160 |
μm±20% |
|
|
Max.travel range(0~150V)） |
200 |
200 |
200 |
200 |
μm±20% |
|
|
Sensor |
SGS |
- |
SGS |
- |
|
|
|
Closed/open loop resolution |
5.5 |
2 |
5.5 |
2 |
nm |
|
|
Linearity |
0.05 |
- |
0.15 |
- |
%F.S. |
|
|
Repeatability |
0.02 |
- |
0.06 |
- |
%F.S. |
|
|
Pitch/yaw/roll |
<20 |
<20 |
<10 |
<10 |
μrad |
|
|
Push/pull force |
- |
- |
70/6 |
70/6 |
N |
|
|
Vacuum compatible |
10^-4 |
10^-4 |
- |
- |
Pa |
|
|
Stiffness |
- |
- |
0.45 |
0.45 |
N/μm±20% |
|
|
Unloaded resonant frequency |
0.3 |
0.3 |
0.18 |
0.18 |
kHz±20% |
|
|
Closed/open-loop unloaded step time |
20 |
0.8 |
10 |
0.8 |
ms±20% |
|
|
Load capacity |
Horizontal |
0.5 |
0.5 |
0.5 |
0.5 |
kg |
|
Vertical |
0.03 | 0.03 | 0.03 | 0.03 | ||
|
Inverted |
0.5 | 0.5 | 0.03 | 0.03 | ||
|
El. capacitance |
3.6 |
3.6 |
3.6 |
3.6 |
μF±20% |
|
|
Material |
Steel, Aluminum |
Steel, Aluminum |
Steel, Aluminum |
Steel, Aluminum |
|
|
|
Mass |
- |
- |
170 |
170 |
g±5% |
|
| Mounting Method |
Horizontal Mounting |
Vertical Mounting |
Inverted Mounting |
| Definition |
Place the PZT platform horizontally for installation, with the moving surface located above the PZT platform and parallel to the horizontal plane.
PS: Default direction for carrying capacity in the parameter table
|
Place and install the PZT platform vertically, with the moving surface parallel to the direction of gravity
|
Place the PZT platform horizontally, but the moving surface is located below the PZT platform |
| Diagram |
 |
 |
 |
| Note |
When the mounting method is selected as vertical mounting, pay attention to the outlet port |
||
