P66.X5K is a high-resolution piezo nanopositioning stage. This product is directly driven by piezo actuators, and can achieve a displacement of 4.7μm in the X direction. When installed horizontally, its load capacity can reach 2kg. It has small size and compact structure, and the dimensions are only 85×70×15.5mm^3, which is suitable for use in spaces with limited volume. The resolution of P66.X5K can reach 0.2nm and the step time can reach 1 millisecond. It is suitable for high-precision and rapid response applications.
Characteristics
|
|
|
|
|
 Vacuum version optional
|
Optional horizontal, vertical, inverted mounting
|
|
|
|

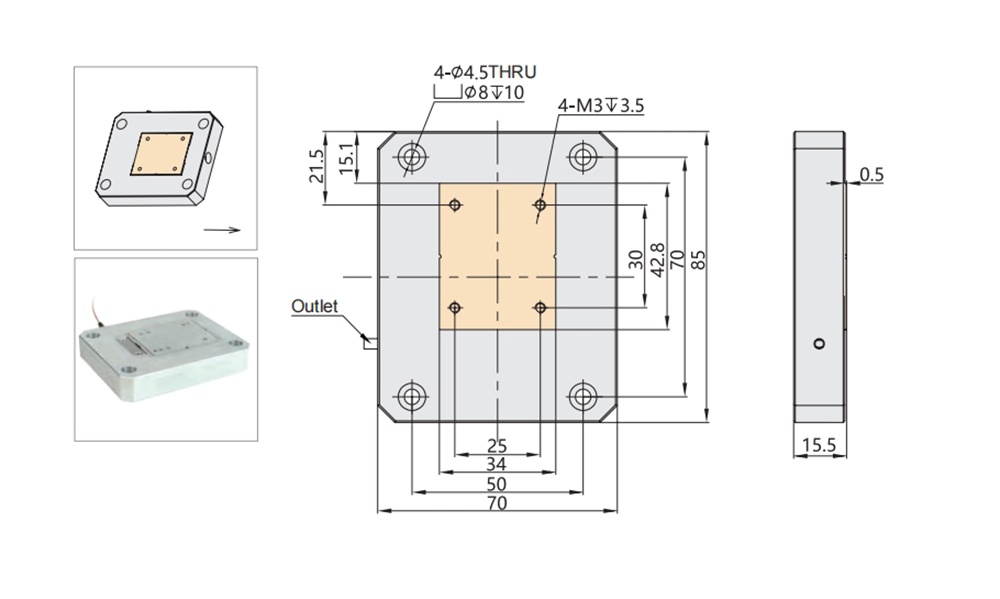

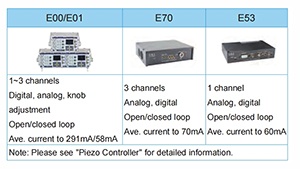

Recommended Controllers
|
Closed-Loop Curve
|
| Technical Data | |||
|
Type |
P66.X5K |
Units |
|
|
Active axes |
X |
|
|
|
Drive control |
1 driving channel |
|
|
|
Nominal travel range(0~120V) |
3.8 |
μm±10% |
|
|
Max. travel range(0~150V) |
4.7 |
μm±10% |
|
|
Resoluition |
0.2 |
nm |
|
|
Unloaded resonant frequency |
2 |
kHz±20% |
|
|
Resonant frequency@2kg |
0.4@2kg |
kHz±20% |
|
|
Step time |
1 |
ms±20% |
|
|
El.capacitance |
0.38 |
μF±20% |
|
|
Operating temperature |
-20~65 |
℃ |
|
|
Load capacity |
Horizontal |
2 |
kg |
| Vertical | 1.5 | ||
| Inverted | 2 | ||
|
Material |
Stainless steel, aluminum alloy |
|
|
|
Cable length |
1.5 |
m±10mm |
|
|
Mass |
240 |
g |
|
| Mounting Method |
Horizontal Mounting |
Vertical Mounting |
Inverted Mounting |
| Definition |
Place the PZT platform horizontally for installation, with the moving surface located above the PZT platform and parallel to the horizontal plane.
PS: Default direction for carrying capacity in the parameter table
|
Place and install the PZT platform vertically, with the moving surface parallel to the direction of gravity
|
Place the PZT platform horizontally, but the moving surface is located below the PZT platform |
| Diagram |
 |
 |
 |
| Note |
When the mounting method is selected as vertical mounting, pay attention to the outlet port |
||
