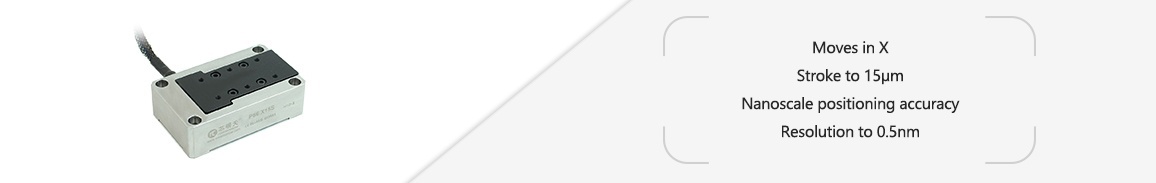

P66.X15 high-resolution piezo nanopositioning stage is a X-direction motion piezo platform, which adopts a direct drive mechanism internally and can perform nanoscale position adjustment within a range of 20μm. There are three installation methods available: horizontal, vertical, and inverted. Each installation has a different load capacity, with a maximum load capacity of 1kg. The closed-loop version is for higher positioning accuracy.
Characteristics
|
|
|
|
|
 Parameters customizable
|
Vacuum is available
|
|
|
|
Recommended Controllers  E53.D1S-H
|

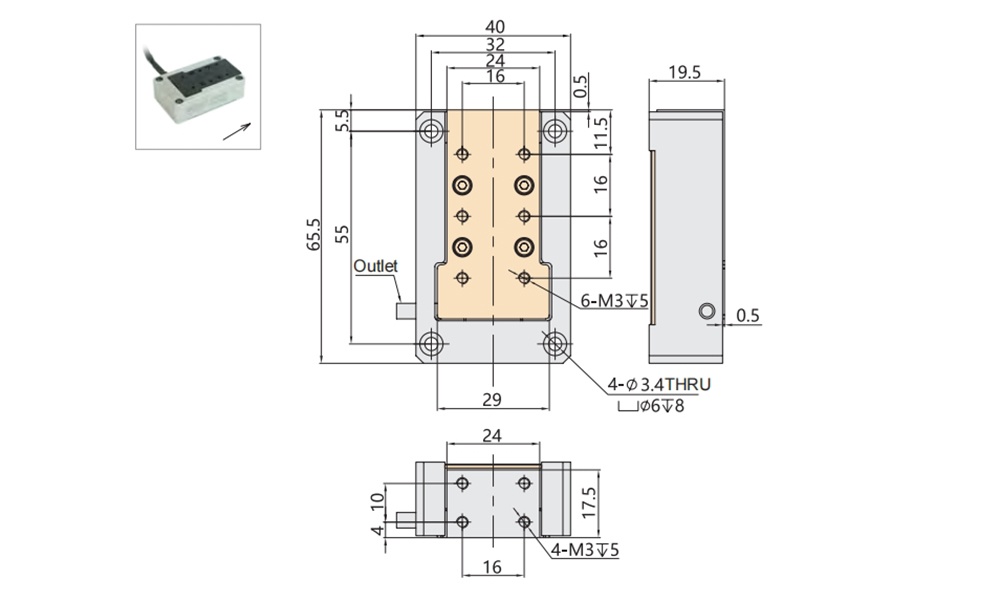

| Technical Data | ||||
|
Type |
S-Closed loop
|
P66.X15S |
P66.X15K |
Units |
|
Active axes |
X |
X |
|
|
|
Drive control |
1 driving channel |
1 driving channel |
|
|
|
Nominal travel range(0~120V) |
16 |
16 |
μm±10% |
|
|
Max. travel range(0~150V) |
20 |
20 |
μm±10% |
|
|
Sensor type |
SGS | - |
|
|
|
Resolution |
1 |
0.5 |
nm |
|
|
Linearity |
0.16 |
- |
%F.S. |
|
|
Repeatability |
0.03 |
- |
%F.S. |
|
|
Push/pull force |
500/20 |
500/20 |
N |
|
|
Stiffness |
28.8 |
28.8 |
N/μm±20% |
|
|
Unloaded resonant frequency |
4350 |
4350 |
Hz±20% |
|
|
Resonant frequency@300g |
1070 |
1070 |
Hz±20% |
|
|
Load capacity |
Horizontal |
1 |
1 |
kg |
| Vertical | 0.5 | 0.5 | ||
| Inverted | 1 | 1 | ||
|
Step time |
8@300g |
2 |
ms±20% |
|
|
El.capacitance |
3.2 |
3.2 |
μF±20% |
|
|
Material |
Steel, Al |
Steel, Al |
|
|
|
Mass(Cable included) |
265 |
265 |
g±5% |
|
| Connector |
PZT: J14A-9TJL
|
PZT: J14A-9TJL |
|
|
| Mounting Method |
Horizontal Mounting |
Vertical Mounting |
Inverted Mounting |
| Definition |
Place the PZT platform horizontally for installation, with the moving surface located above the PZT platform and parallel to the horizontal plane.
PS: Default direction for carrying capacity in the parameter table
|
Place and install the PZT platform vertically, with the moving surface parallel to the direction of gravity
|
Place the PZT platform horizontally, but the moving surface is located below the PZT platform |
| Diagram |
 |
 |
 |
| Note |
When the mounting method is selected as vertical mounting, pay attention to the outlet port |
||
