H01 Piezo Fiber StretchersCurrent Location:Product Homepage >> Amplified Piezo Actuator>>H01 Piezo Fiber Stretchers
  • Introduction
  • Feedback

H01 piezo fiber stretcher is designed for fiber stretching applications. Its principle is to cause the hinge structure outward expansion by the action of three piezo stacks placed at 120 degrees thereby stretching the optical fiber wound in the outer diameter groove.


Characteristics


 Travel range(0~+120 V):3/7/18.5/80 µm

 Multiple models available,Customizable

 Blocking force to 600N


Winded optical fiber

As fiber stretcher, N01 could stretch more than 115μm per circle.

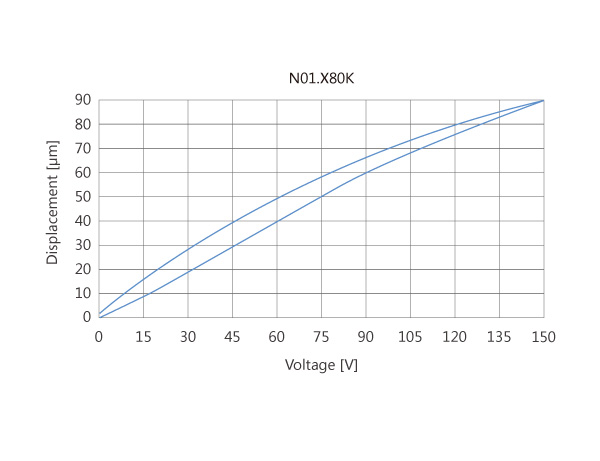

Displacement vs Voltage


Applications


 Fiber stretch

 Fiber Optic Sensor

 Light wavelength adjustment

    Technical Data

Type

H01.80

H01.20

H01.6K

H01.3K

Units

Motion

Radial expansion
Radial expansion
Radial expansion

Radial expansion


Travel range
(0~+120 V)*

Radial 64

15

5.6

2.4

µm±20%

Travel range
(0~+120 V)*
Fiber/circle 336

80

28

12

µm±20%,Cal.

Travel range
(0~+150 V)

Radial 80

18.5

7

3

µm±20%

Travel range
(0~+150 V)
Fiber/circle 420

100

35

15

µm±20%,Cal.

Resolution

Radial 4

1

0.5

0.3

nm

Resolution
Fiber/circle 20

5

2.5

1.5

nm,Cal.

Radial max. blocking force

160

600

250

120

N

Unloaded resonant frequency

740

3975

9500

3000

Hz±20%

Stiffness

3

30

30

30

N/μm±20%

El. capacitance

5.4

5.4

1.2

0.3

μF±20%

Material

 Steel

 Steel

Titanium, al

Steel


Mass

220

280

60

32

g±5%

Size

Ø80×14

Ø80×19.5

Ø55×13.3

Φ30×13

mm

*Max driving voltage could be -20V~150V, Recommended voltage 0~120V for long-term operation to extend lifetime.

Technical data are measured by CoreMorrow E00/E01 series piezo controller.

    H01.80 Dawngs(Click on the picture to enlarge it)
Click on the picture to enlarge it
    H01.20 Drawings(Click on the picture to enlarge it)
Click on the picture to enlarge it

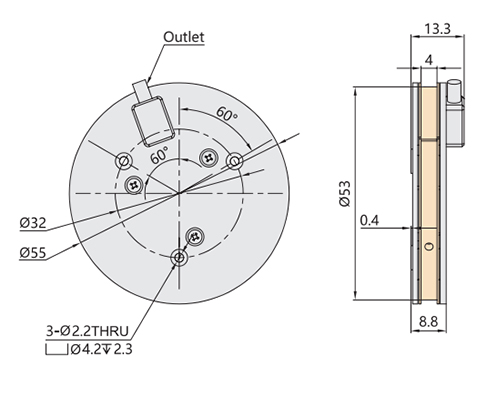

    H01.6K Drawings(Click on the picture to enlarge it)
Click on the picture to enlarge it

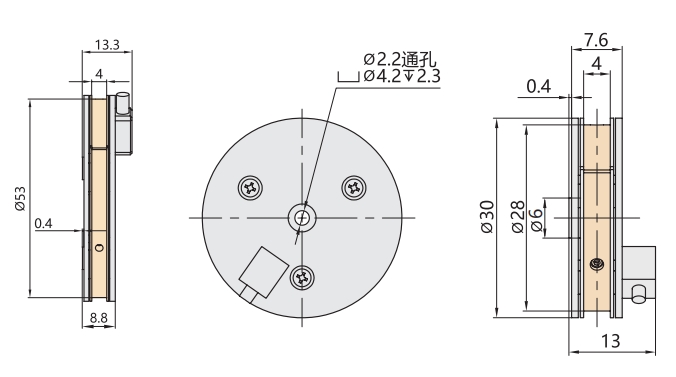

    H01.3K Drawings(Click on the picture to enlarge it)
Click on the picture to enlarge it
      Downloads
Auto CAD PDF

H01.6K

H01.3K

H01.20

H01.80

Step

H01.6K

/


H01.20

H01.80

Specs Sheet

H01.6K

/


H01.20

H01.80

Manual
