- Introduction
- Feedback

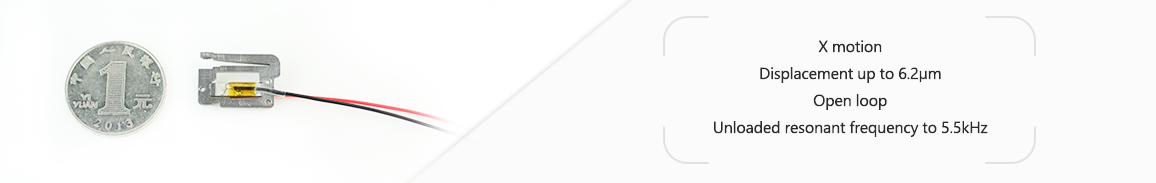

The XD011 amplified piezo actuators is an open-loop actuator designed specifically for applications with limited space. It has a compact appearance, small size, and an overall size of only 19.5×13×5mm^3.
Characteristics
|
|
|
|
|
|
|
| Technical Data | ||
|
Type |
XD011 |
Units |
|
Active axes |
X |
|
|
Nominal travel range(0~120V) |
5 |
μm±10% |
|

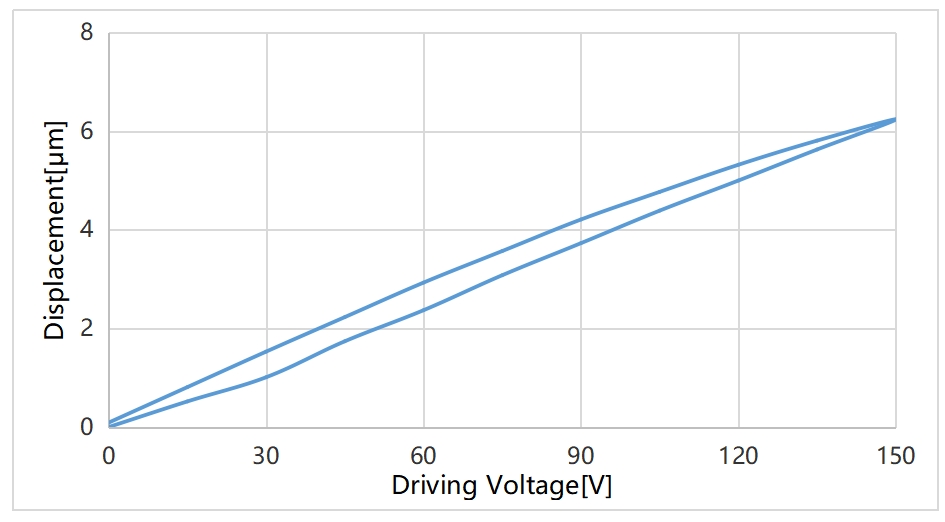

Max.travel range(0~150V) |
6.2 |
μm±10% |
|
Unloaded resonant frequency |
5.5 |
kHz±20% |
|
El. Capacitance |
0.3 |
μF±20% |
|
Material |
Steel |
|
|
Mass(including wires and connectors) |
20 |
g±5% |
