VS35 Preloaded Ring Actuators, ID14mm, 0-150VCurrent Location:Product Homepage >> Ring Piezo Actuator>>VS35 Preloaded Ring Actuators, ID14mm, 0-150V
  • Introduction
  • Feedback

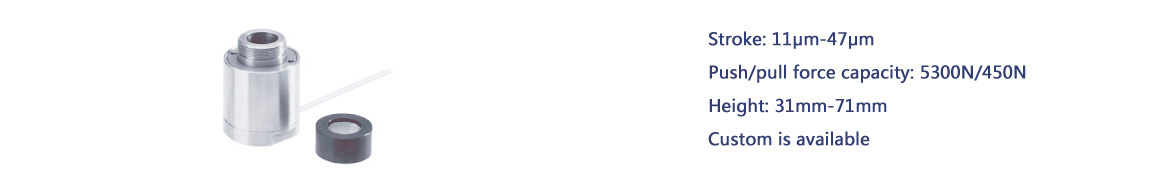

Low voltage ring piezo actuator is driven by ring piezo stack. Bottom is fixed by threads, and top is external threads. Standard version is equipped with lens fixing cap, which can be used in optical positioning systems.


Features


 Max stroke to 47μm

 Max blocking force to 5300N

 Aperture:Ø14mm


Aperture

Fixing Cap

    Technical data

Model

Stroke

[μm]±10%*

Stiffness

[N/μm]±20%

Push/pull force

[N]

El.capacitance

[μF]±20%

Resonant frequency[kHz]

Weight
[g]±5%

Length L

[mm]±0.3

Download

HPSt150/20-15/12 VS35

11

450

5300/450

5

30

-

31

HPSt150/20-15/25 VS35

23

230

5300/450

10

20

-

44

HPSt150/20-15/40 VS35

38

150

5300/450

15

17

270

58

HPSt150/20-15/55 VS35

47

100

5300/450

20

15

-

71

*Nominal Stroke corresponding drive voltage 0-150V, Recommended voltage 0~120V for long-term operation to extend lifetime.

Closed-loop linearity and repeatability are better.

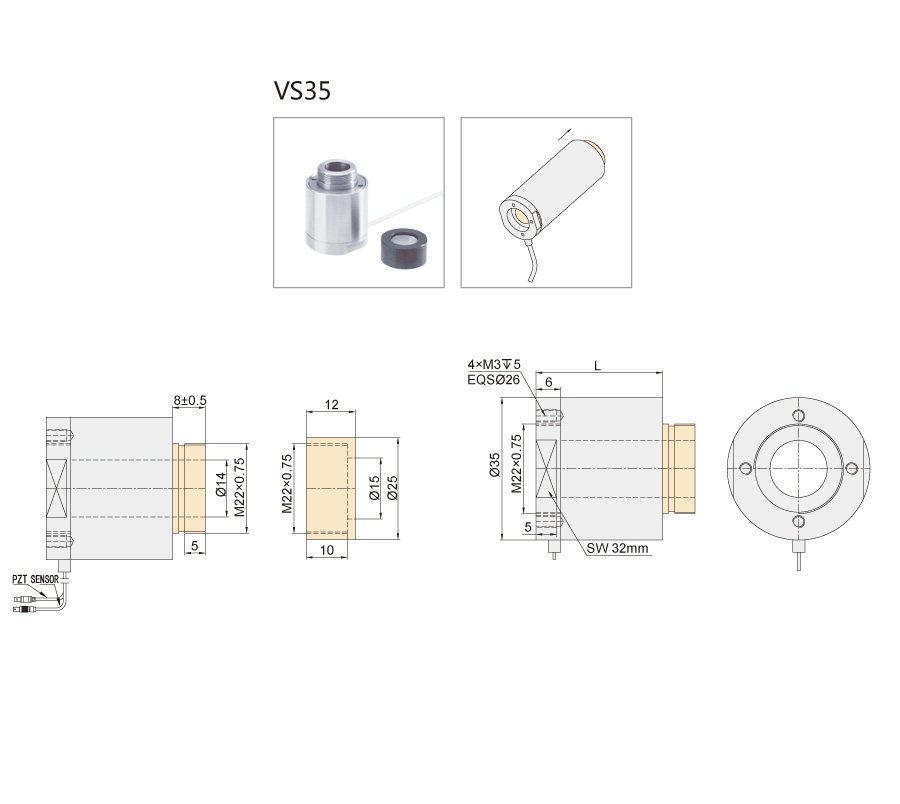

    Drawings(Click on the picture to enlarge it)
