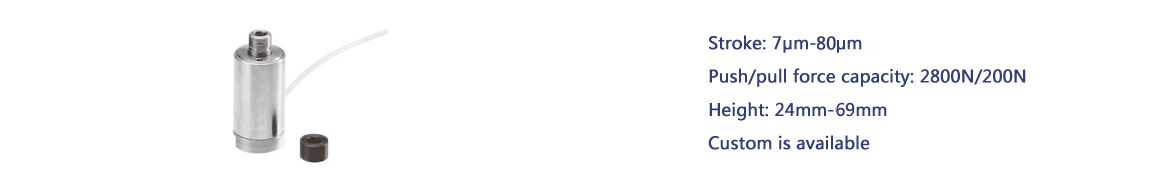

Driving voltage of the high-voltage ring piezoelectric ceramic actuator is 500V or 1000V.

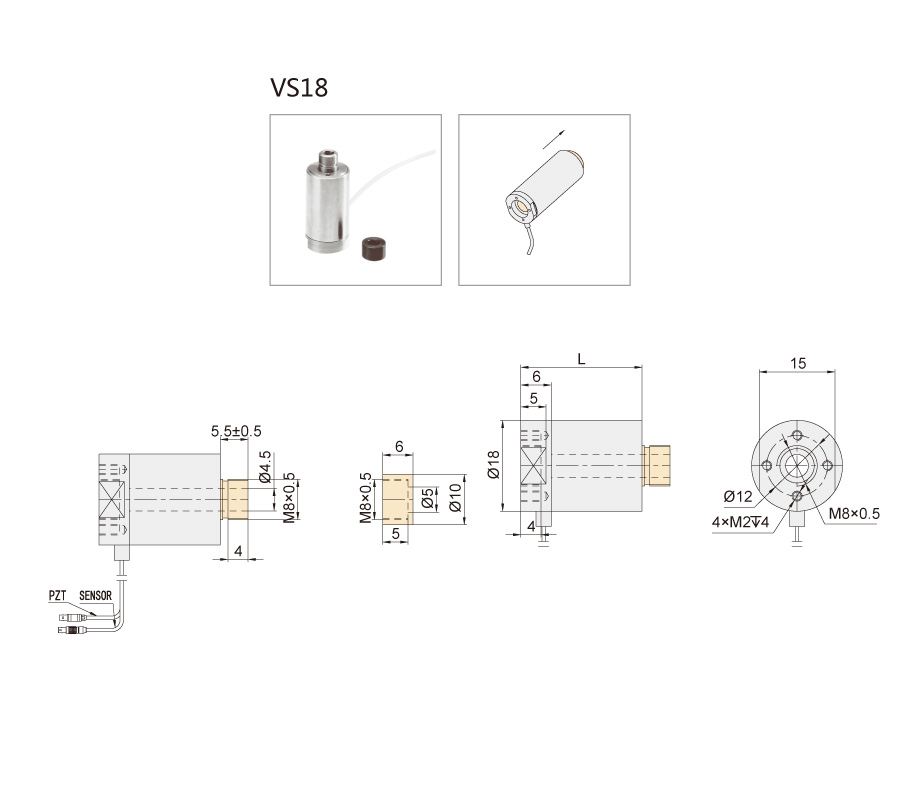

Characteristics
|
|
|
|
|
Aperture
|
Fixing Cap
|
High Voltage Driving
|
| Technical data | |||||||
|
Models |
Max. / stroke [μm]±15%* |
Length L [mm]±0.3 |
El.capacitance [nF]±20% |
Stiffness [N/μm]±20% |
Resonant frequency [kHz] |
Push / pull force capacity [N] |
Download |
|
HPSt500/10-5/7 VS18 |
12月7日 |
24 |
65 |
200 |
30 |
2800/200 |
|
|
HPSt500/10-5/20 VS18 |
27/20 |
33 |
180 |
100 |
25 |
2800/200 |
|
|
HPSt500/10-5/25 VS18 |
35/25 |
42 |
260 |
70 |
20 |
2800/200 |
|
|
HPSt1000/10-5/7 VS18 |
12月7日 |
24 |
15 |
210 |
35 |
2800/200 |
|
|
HPSt1000/10-5/20 VS18 |
27/20 |
33 |
40 |
110 |
27 |
2800/200 |
|
|
HPSt1000/10-5/25 VS18 |
35/25 |
42 |
65 |
75 |
22 |
2800/200 |
|
|
HPSt1000/10-5/40 VS18 |
55/40 |
51 |
90 |
55 |
20 |
2800/200 |
|
|
HPSt1000/10-5/60 VS18 |
80/60 |
69 |
140 |
35 |
17 |
2800/200 |
|
*Nominal Stroke corresponding drive voltage 0-150V, Recommended voltage 0~120V for long-term operation to extend lifetime.
Closed-loop linearity and repeatability are better.
