VS22 Preloaded Ring Actuators, ID7.5mm, 0-500/1000VCurrent Location：Product Homepage >> Ring Piezo Actuator>>VS22 Preloaded Ring Actuators, ID7.5mm, 0-500/1000V
  • Introduction
  • Feedback

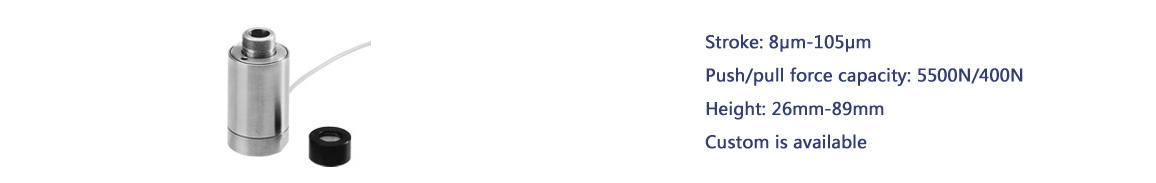

Driving voltage of the high-voltage ring piezoelectric ceramic actuator is 500V or 1000V.


Characteristics


 Max stroke to 105μm

 Max blocking force to 5500N

 Aperture：Ø7.5mm


Aperture

Fixing Cap

High Voltage Driving

    Technical data

Models

Max. / stroke

[μm]±15%*

Length L

[mm]±0.3

El.capacitance

[nF]±20%

Stiffness

[N/μm]±20%

Resonant frequency

[kHz]

Push / pull force capacity

[N]

Download

HPSt500/15-8/7 VS22

8月13日

26

140

550

30

5500/400

HPSt500/15-8/20 VS22

27/20

35

360

280

25

5500/400

HPSt500/15-8/25 VS22

35/25

44

520

180

20

5500/400

HPSt500/15-8/40 VS22

55/40

53

720

130

15

5500/400

HPSt500/15-8/60 VS22

80/60

71

1100

90

12

5500/400

HPSt500/15-8/80 VS22

105/80

89

1500

60

10

5500/400

HPSt1000/15-8/7 VS22

8月13日

26

35

600

35

5500/400

HPSt1000/15-8/20 VS22

27/20

35

90

300

27

5500/400

HPSt1000/15-8/25 VS22

35/25

44

130

200

22

5500/400

HPSt1000/15-8/40 VS22

55/40

53

180

150

17

5500/400

HPSt1000/15-8/60 VS22

80/60

71

270

100

14

5500/400

HPSt1000/15-8/80 VS22

105/80

89

360

70

12

5500/400

*Nominal Stroke corresponding drive voltage 0-150V, Recommended voltage 0~120V for long-term operation to extend lifetime.

Closed-loop linearity and repeatability are better.

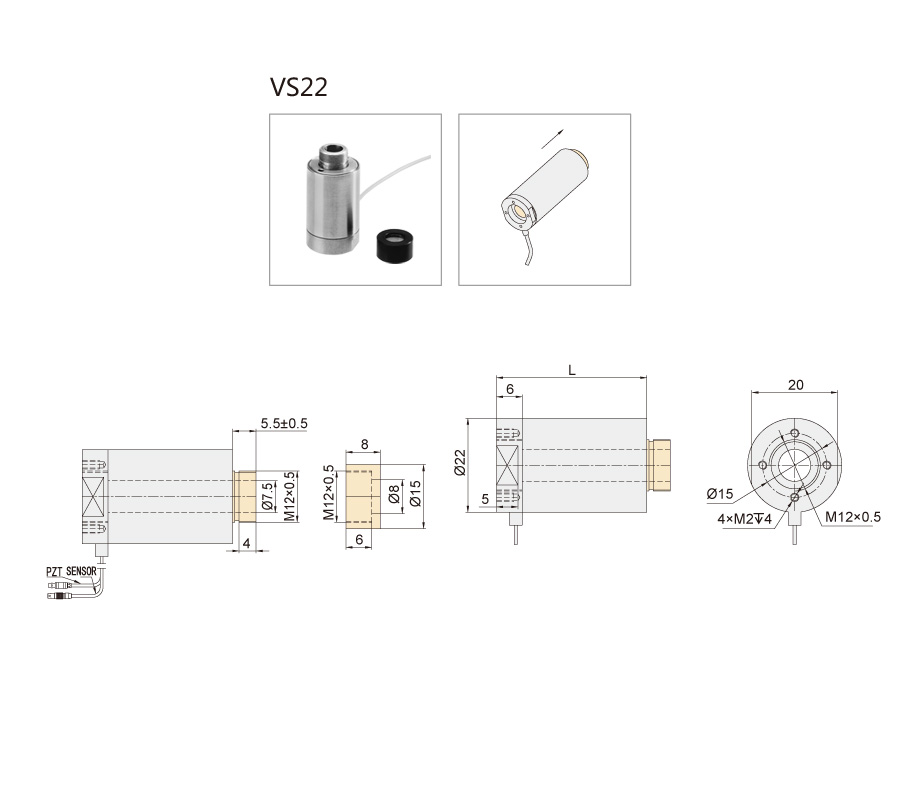

    Drawings（Click on the picture to enlarge it）
