VS35 Preloaded Ring Actuators, ID14mm, 0-1000VCurrent Location：Product Homepage >> Ring Piezo Actuator>>VS35 Preloaded Ring Actuators, ID14mm, 0-1000V

Introduction
Technical Data
Dimensions
Feedback

Driving voltage of the high-voltage ring piezoelectric ceramic actuator is 500V or 1000V.

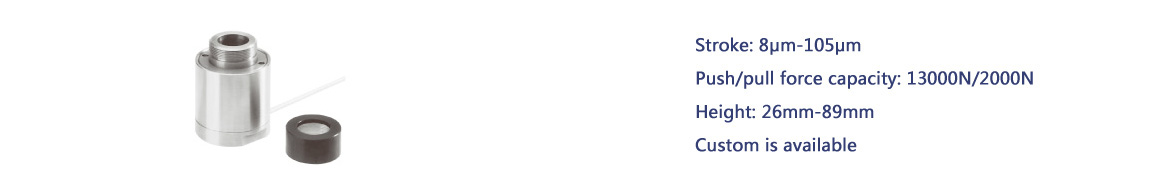

Features

• Max stroke to 105μm • Max blocking force to 13000N • Aperture：Ø14mm

Aperture	Fixing Cap	High Voltage Driving

Technical data

Models	Max. / stroke [μm]±15%*	Length L [mm]±0.3	El.capacitance [nF]±20%	Stiffness [N/μm]±20%	Resonant frequency [kHz]	Push / pull force capacity [N]	Download
HPSt1000/25-15/7 VS35	8月13日	26	85	1200	40	13000/2000
HPSt1000/25-15/20 VS35	27/20	35	210	600	30	13000/2000
HPSt1000/25-15/25 VS35	35/25	44	310	400	25	13000/2000
HPSt1000/25-15/40 VS35	55/40	53	420	300	25	13000/2000
HPSt1000/25-15/60 VS35	80/60	71	650	180	20	13000/2000
HPSt1000/25-15/80 VS35	105/80	89	900	130	15	13000/2000

*Nominal Stroke corresponding drive voltage 0-150V, Recommended voltage 0~120V for long-term operation to extend lifetime.
Closed-loop linearity and repeatability are better.

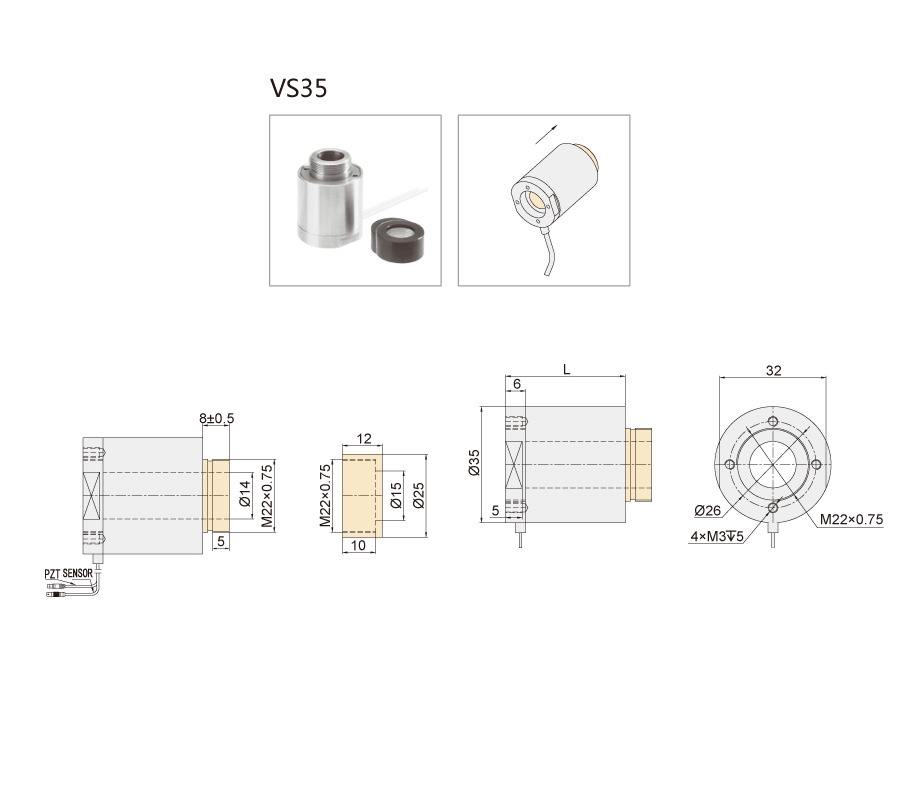

Drawings

Technical Data:

Models	Max. / stroke [μm]±15%*	Length L [mm]±0.3	El.capacitance [nF]±20%	Stiffness [N/μm]±20%	Resonant frequency [kHz]	Push / pull force capacity [N]
HPSt1000/25-15/7 VS35	13/8	26	85	1200	40	13000/2000
HPSt1000/25-15/20 VS35	27/20	35	210	600	30	13000/2000
HPSt1000/25-15/25 VS35	35/25	44	310	400	25	13000/2000
HPSt1000/25-15/40 VS35	55/40	53	420	300	25	13000/2000
HPSt1000/25-15/60 VS35	80/60	71	650	180	20	13000/2000
HPSt1000/25-15/80 VS35	105/80	89	900	130	15	13000/2000
