H13 Customized Low Voltage Ring Preloaded Piezo ActuatorCurrent Location：Product Homepage >> Ring Piezo Actuator>>H13 Customized Low Voltage Ring Preloaded Piezo Actuator

XD003-C2 Low Voltage Preloaded Piezo Actuator

Introduction
Feedback

The H13.Z50K-C actuator is an open-loop version specially designed according to users’ needs. It features a center aperture of Φ3mm, and has a blocking force to 1000N. The parameters can be customized according to customer needs.

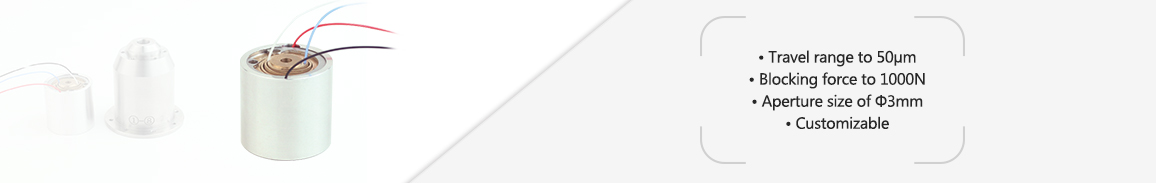

Characteristics

Travel range to 50μm

Blocking force to 1000N

Aperture size of Φ3mm

Customizable

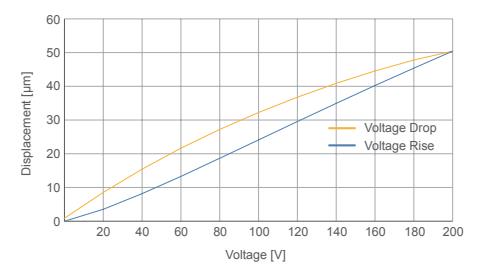

Voltage vs Displacement Curve

Technical Data
Type	Stroke [μm]±10%*	Stiffness[N/μm] ±20%	Push/pull force [N]	El. capacitance [μF]±20%	Resonant frequency [kHz]	Length [mm]±0.3	Driving source
H13.Z50K-C	50	30	1000/-	8	8	23.3	Piezo Stack

* At 0~200V.

Drawings（Click on the picture to enlarge it）

Downloads
Auto CAD PDF
Step
Specs Sheet
Manual
