M14 Integrated Mirror Mounts Piezo ActuatorCurrent Location：Product Homepage >> Preloaded Piezo Actuators>>M14 Integrated Mirror Mounts Piezo Actuator
  • Introduction
  • Feedback

The M14 Piezoelectric actuator is designed for optical cage applications and can be installed directly in the cage structure. The M14 Piezoelectric actuator integrates the piezoelectric actuator into a hand-adjusted two-dimensional lens regulator, wherein the lens can be pasted on the surface of the lens holder at the moving end of the piezoelectric actuator. First, the orientation of the lens is adjusted manually by the two-dimensional lens adjusting frame, and then the linear piezoelectric actuator is controlled by the electrical signal to make the linear motion with nanometer precision. The piezoelectric actuator has a variety of models and can be selected among various displacements.

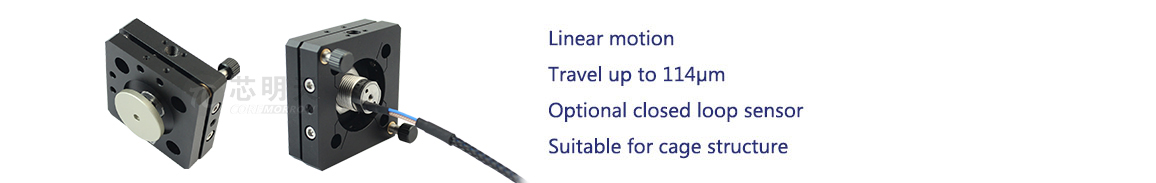

Characteristics


 Linear motion

 Travel up to 114μm

  Optional closed loop sensor

  Suitable for cage structure


Application


 Light path adjustment

 Cage structure

 Optical phase shift

 Nano motion control

    Technical Data

Model

L

[mm]±0.3

Sensor

Travel *

[μm]±10%

Stiffness

[N/μm]±20%

Push/pull

[N]

El. capacity

[μF]±10%

Resonant frequency

[kHz]±20%

Weight
[g]±5%

STEP

M14S7T50

30

SGS

9

120

1200/200

0.7

40

138

M14K7T50

30

-

9

120

1200/200

0.7

40

138

-

M14S20T50

39

SGS

19

60

1200/200

1.8

30

162

-

M14K20T50

39

-

19

60

1200/200

1.8

30

162

-

M14S40T50

57

SGS

38

25

1200/200

3.6

20

-

-

M14K40T50

57

-

38

25

1200/200

3.6

20

-

-

M14S60T50

75

SGS

57

15

1200/200

5.4

15

-

-

M14K60T50

75

-

57

15

1200/200

5.4

15

-

-

M14S80T50

93

SGS

76

12

1200/200

7.2

12

-

-

M14K80T50

93

-

76

12

1200/200

7.2

12

-

-

M14S100T50

111

SGS

95

10

1200/200

9

10

-

-

M14K100T50

111

-

95

10

1200/200

9

10

-

-

M14S120T50

129

SGS

114

8

1200/200

11

8

-

-

M14K120T50

129

-

114

8

1200/200

11

8

-

-

*: At 0~150V. Max. driving voltage could be -20V~150V, recommended voltage 0~120V for long-term, high-reliability operation. Measured by CoreMorrow E00/E01 series piezo controller. Custom is available.

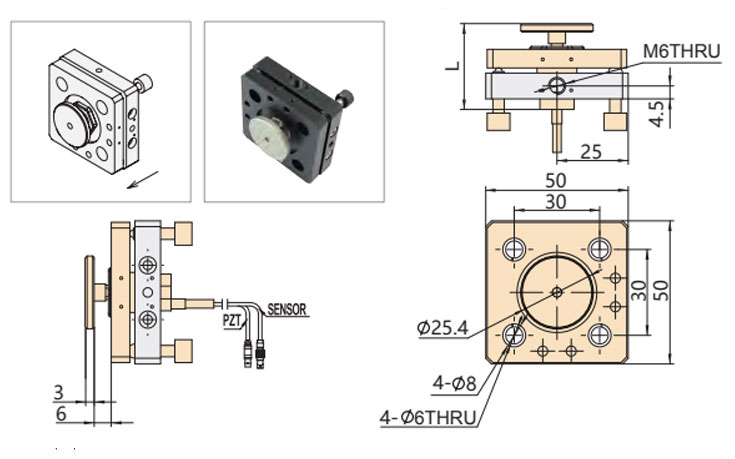

    Drawings（Click on the picture to enlarge it）
Click on the picture to enlarge it
    Click on the picture to enlarge it
Auto CAD PDF
Specs Sheet

Manual

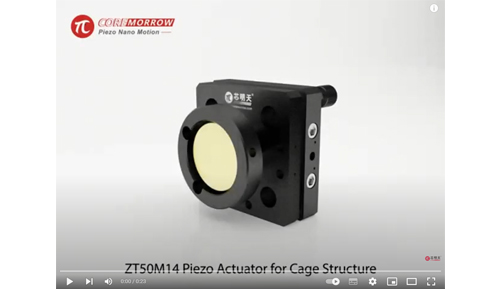

    Motion Video

     3D diagram presentation
