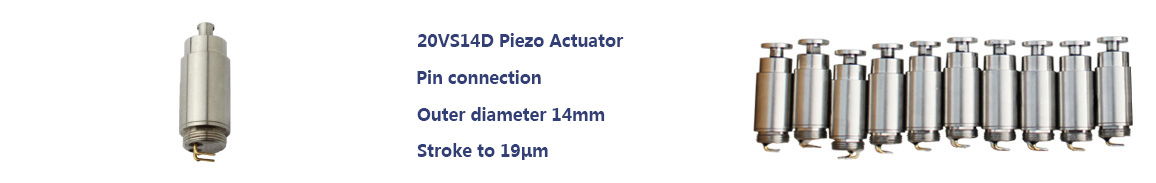

    The PSt150/7/20VS14D low voltage cylindrical piezo actuator has a movement stroke of up to 19μm and a force of up to 1200N. It has customized electric lead pins, and can be installed and fixed with external threads at one end of the actuator.

    The piezo actuator (excluding the pin end) has been sealed and can be used in liquid oil.



Characteristics


 Stroke to 19μm

 Blocking force to 1200N

 Customized lead pins

 External thread fixation
 Overall sealing treatment (excluding the pin end)


Product structure diagram

    Technical data

Models

Stroke
[μm]±10%*

Stiffness
[N/μm]±20%

Push/pull force
[N]

El.capacitance
[μF]±10%

Resonant Frequency
[kHz]

Length
[mm]±0.3

Downloads

20VS14D

19

60

1200/200

1.8

30

27


*Nominal Stroke corresponding drive voltage 0-150V, Recommended voltage 0~120V for long-term operation to extend lifetime. Closed-loop linearity and repeatability are better. Please contact us.

Note: the preload force generally does not exceed 20% of the generated force.

Standard end

Optional ends

Internal

Plane

External

Sphere

See above drawing

See above drawing

Symbol

Parameter

Symbol

Parameter

Symbol

Parameter

A:

Ø12

A:

 Ø12

A

Ø12

B:

Ø5

B:

 Ø5

B

Ø5

C3:

4±0.5

C1:

7±0.5

C2

5±0.5





D:

M4

G

SR1.5





E:

SW4mm









F:

2
