M22 External-thread Piezo Actuators, 0-150VCurrent Location：Product Homepage >> Preloaded Piezo Actuators>>M22 External-thread Piezo Actuators, 0-150V
  • Introduction
  • Feedback

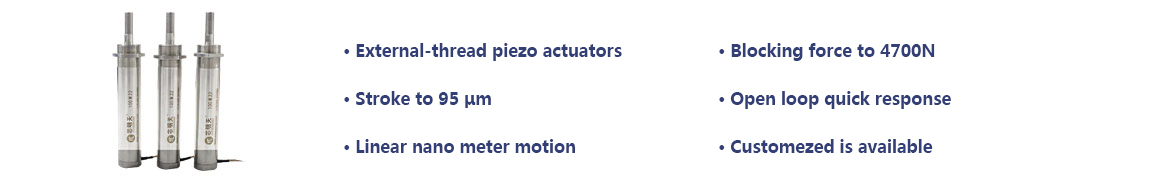

Characteristics


 External-thread piezo actuators

 Blocking force to 4700N

 Stroke to 95 μm

 Open loop quick response

 Linear nano meter motion

 Customezed is available


Custom design

    Technical data

Models

Stroke

[μm]±10%*

Stiffness

[N/μm]±20%*

Push/pull force

[N]

El.capacitance

[μF]±10%

Resonant Frequency

[kHz]±20%

Length L1

[mm]±0.3

Length L2

[mm]±0.3

Downloads

STEP

FPSt150/14/100 M22

95

40

4700/700

39

10

113

20


*At 0~150V , recommended voltage 0~120V for high-reliable and long-term operation. Custom is available. Mounting preloaded force<20% of blocking force.

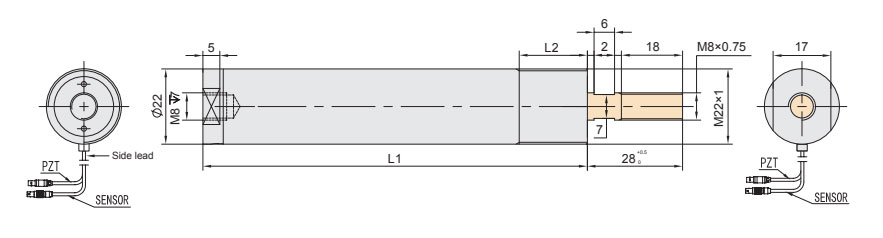

    Drawings（Click on the picture to enlarge it）
     3D diagram presentation
