VS9 Preloaded Linear Actuators, OD9mm, 0-150VCurrent Location：Product Homepage >> Preloaded Piezo Actuators>>VS9 Preloaded Linear Actuators, OD9mm, 0-150V
  • Introduction
  • Feedback

Low voltage preloaded piezo actuator is obtained by encapsulating the low-voltage piezo stacks inside, the outer part is protected by stainless steel casing, and the pre-tightening force is applied to the piezo stacks through the mechanical casing, the higher internal machinery preload force is suitable for high load, high dynamic applications. It could output the displacement and output generated by the piezo stack and could withstand certain tensile force.


Characteristics


 Nanoscale resolution

 Small size

 Stroke from 8μm/16μm

 Max blocking force 200N

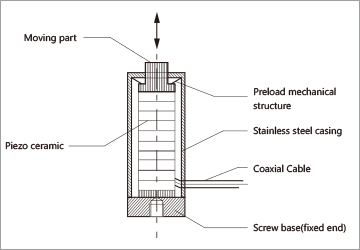

Structure

Higher Height Larger Displacement

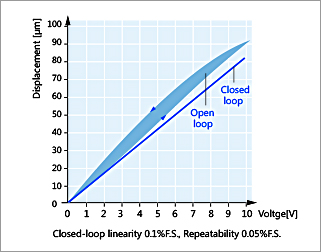

Closed Loop Curve


Applications


 Measurement, interference

 Active and adaptive optics

 Shock absorption

 Precision machinery and machining

    Technical data

Models

Stroke
[μm]±10%*

Stiffness
[N/μm]±20%

Push/pull force
[N]

El.capacitance
[μF]±20%

Resonant frequency
[kHz]±20%

Weight
[g]±5%

Length L
[mm]±0.3

Downloads

Step


Spherical



Plane



Spherical


Extermal thread

PSt150/4/7 VS9

8

25

200/30

0.17

40

24.5

19.2





PSt150/4/20 VS9

16

12

200/30

0.34

30

27.3

28.2





*Nominal Stroke corresponding drive voltage 0-150V, Recommended voltage 0~120V for long-term operation to extend lifetime.

    Drawings ( Click on the picture to enlarge it )

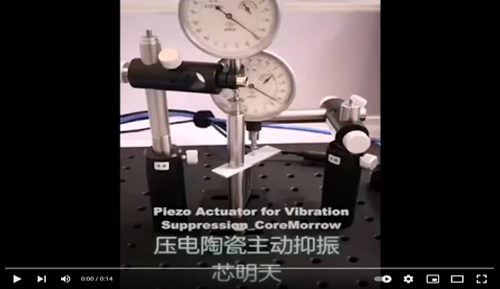

    Applied for Vibration Suppression

Standard end

Optional ends

Internal

Plane

External

Sphere

See above drawing

See above drawing

Symbol

Parameter

Symbol

Parameter

Symbol

Parameter

A：

Ø9

A:

 Ø9

A：

Ø9

B:

Ø3

B:

 Ø3

B：

Ø3

C3:

3±0.5

C1:

6±0.5

C2：

4±0.5





D:

M2

G：

SR1





E:

SW2mm









F:

2
