Low voltage preloaded piezo actuator is obtained by encapsulating the low-voltage piezo stacks inside, the outer part is protected by stainless steel casing, and the pre-tightening force is applied to the piezo stacks through the mechanical casing, the higher internal machinery preload force is suitable for high load, high dynamic applications. It could output the displacement and output generated by the piezo stack and could withstand certain tensile force.
Characteristics
|
|
|
|
|
|
Structure
|
Higher Height Larger Displacement
|
Closed Loop Curve
|
Applications
|
|
|
|
|
| Technical data | ||||||||
|
Models |
Stroke |
Stiffness |
Push/pull force |
El.capacitance |
Resonant frequency |
Weight |
Length L |
Downloads |
|
PSt150/5/7 VS10 |
9 |
50 |
550/100 |
0.35 |
40 |
- |
19 |
|
|
PSt150/5/20 VS10 |
19 |
25 |
550/100 |
0.8 |
30 |
- |
28 |
|
|
PSt150/5/40 VS10 |
38 |
12 |
550/100 |
1.6 |
20 |
- |
46 |
|
|
PSt150/5/60 VS10 |
57 |
8 |
550/100 |
2.4 |
15 |
51.5 |
64 |
|
|
PSt150/5/80 VS10 |
76 |
6 |
550/100 |
3.2 |
12 |
- |
82 |
|
|
PSt150/5/100 VS10 |
95 |
5 |
550/100 |
4 |
10 |
- |
100 |
|
*Nominal Stroke corresponding drive voltage 0-150V, Recommended voltage 0~120V for long-term operation to extend lifetime.
|
Standard end |
Optional ends |
|||||
|
Internal |
Plane |
External |
Sphere |
|||
|
|
|
|
|
|||
|

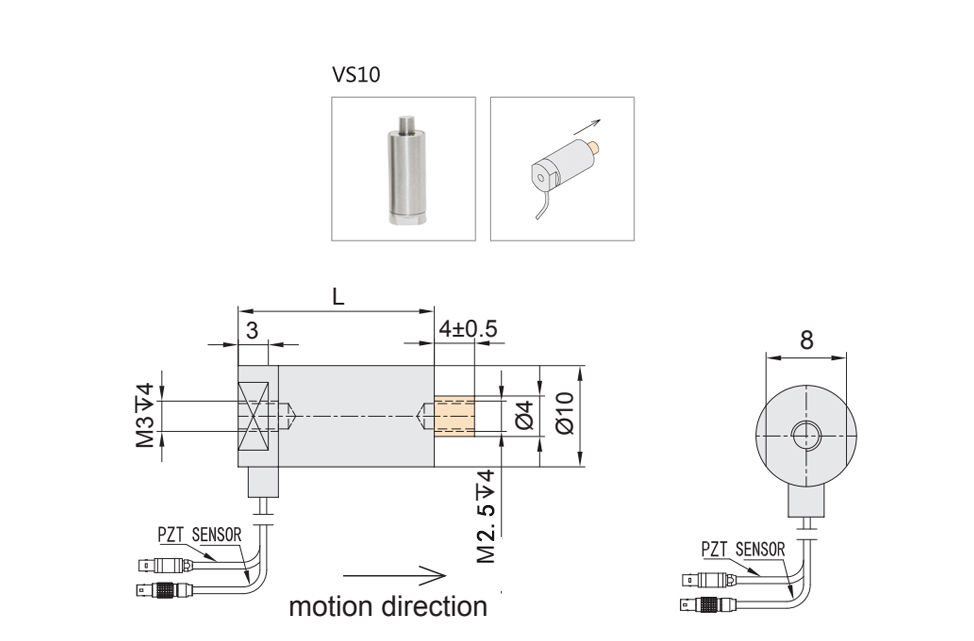

See above drawing |
|
|
|
|||
|
See above drawing |
Symbol |
Parameter |
Symbol |
Parameter |
Symbol |
Parameter |
|
A： |
Ø10 |
A: |
Ø10 |
A： |
Ø10 |
|
|
B: |
Ø4 |
B: |
Ø4 |
B： |
Ø4 |
|
|
C3: |
4±0.5 |
C1: |
6±0.5 |
C2： |
5±0.5 |
|
|
|
|
D: |
M3 |
G： |
SR1.5 |
|
|
|
|
E: |
SW3mm |
|
|
|
|
|
|
F: |
2 |
|
|
|
