VS20 Preloaded Linear Actuators, OD20mm, 0-150VCurrent Location：Product Homepage >> Preloaded Piezo Actuators>>VS20 Preloaded Linear Actuators, OD20mm, 0-150V
  • Introduction
  • Feedback

Low voltage preloaded piezo actuator is obtained by encapsulating the low-voltage piezo stacks inside, the outer part is protected by stainless steel casing, and the pre-tightening force is applied to the piezo stacks through the mechanical casing, the higher internal machinery preload force is suitable for high load, high dynamic applications. It could output the displacement and output generated by the piezo stack and could withstand certain tensile force.


Characteristics


 Nanoscale resolution

 Small size

 Max displacement 190μm

 Max blocking force 4700N


Structure

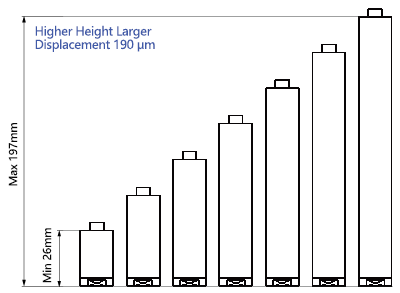

Higher Height Larger Displacement

Closed Loop Curve


Applications


 Measurement, interference

 Active and adaptive optics

 Shock absorption

 Precision machinery and machining

    Technical data

Models

Stroke
[μm]±10%*

Stiffness
[N/μm]±20%

Push/pull force
[N]

El.capacitance
[μF]±20%

Resonant frequency
[kHz]±20%

Weight
[g]±5%

Length L
[mm]±0.3

Download

PSt150/14/7 VS20

9

350

4700/700

3.6

40

-

26

PSt150/14/20 VS20

19

250

4700/700

7

30

99.7

35

PSt150/14/40 VS20

38

120

4700/700

14

20

152.8

53

PSt150/14/60 VS20

57

70

4700/700

22

14

-

71

PSt150/14/80 VS20

76

50

4700/700

30

12

-

89

PSt150/14/100 VS20

95

40

4700/700

39

10

-

107

PSt150/14/120 VS20

114

35

4700/700

47

8

-

125

PSt150/14/140 VS20

133

30

4700/700

55

7

-

143

PSt150/14/160 VS20

152

25

4700/700

63

6

-

161

PSt150/14/180 VS20

171

22

4700/700

71

5

-

179

PSt150/14/200 VS20

190

20

4700/700

80

4

-

197

*Nominal Stroke corresponding drive voltage 0-150V, Recommended voltage 0~120V for long-term operation to extend lifetime.

    Drawings ( Click on the picture to enlarge it )

    Applied for Vibration Suppression

Standard end

Optional ends

Internal

Plane

External

Sphere

See above drawing

See above drawing

Symbol

Parameter

Symbol

Parameter

Symbol

Parameter

A：

Ø20

A:

 Ø20

A：

Ø20

B:

Ø8

B:

 Ø8

B：

Ø8

C3:

4±0.5

C1:

8±0.5

C2：

6±0.5





D:

M5

G：

SR5





E:

SW6mm









F:

2
