VS25 Preloaded Linear Actuators, OD25mm, 0-150VCurrent Location：Product Homepage >> Preloaded Piezo Actuators>>VS25 Preloaded Linear Actuators, OD25mm, 0-150V

Introduction
Feedback

Low voltage preloaded piezo actuator is obtained by encapsulating the low-voltage piezo stacks inside, the outer part is protected by stainless steel casing, and the pre-tightening force is applied to the piezo stacks through the mechanical casing, the higher internal machinery preload force is suitable for high load, high dynamic applications. It could output the displacement and output generated by the piezo stack and could withstand certain tensile force.

Characteristics

Nanoscale resolution

Small size

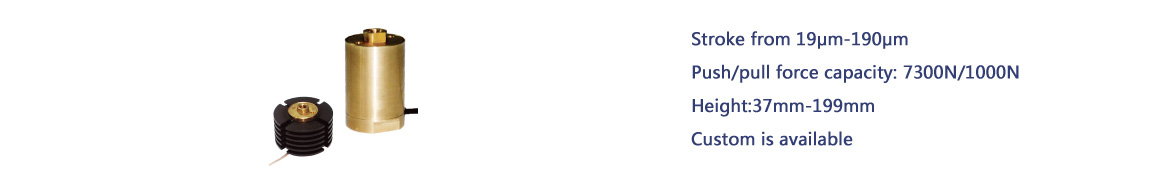

Max displacement 190μm

Max blocking force 7300N

Structure

Higher Height Larger Displacement

Closed Loop Curve

Applications

Measurement, interference

Active and adaptive optics

Shock absorption

Precision machinery and machining

Technical data
Models	Stroke [μm]±10%*	Stiffness [N/μm]±20%	Push/pull force [N]	EI.capacitance [μF]±20%	Resonant frequency [kHz]	Weight [g]±5%	Length L [mm]±0.3	Download	Step
Models	Stroke [μm]±10%*	Stiffness [N/μm]±20%	Push/pull force [N]	EI.capacitance [μF]±20%	Resonant frequency [kHz]	Weight [g]±5%	Length L [mm]±0.3	Download	Internal thread	Plane	Spherical	Extermal thread
PSt150/20/20 VS25	19	500	7300/1000	14.5	28	142.7	37
PSt150/20/40 VS25	38	250	7300/1000	29	18	-	55
PSt150/20/60 VS25	57	160	7300/1000	43.5	13	-	73
PSt150/20/80 VS25	76	100	7300/1000	58	11	-	91
PSt150/20/100 VS25	95	80	7300/1000	72.5	9	-	109
PSt150/20/120 VS25	114	65	7300/1000	87	7	-	127
PSt150/20/140 VS25	133	55	7300/1000	101.5	6	-	145
PSt150/20/160 VS25	152	50	7300/1000	116	5	-	163
PSt150/20/180 VS25	171	45	7300/1000	130.5	4	-	181
PSt150/20/200 VS25	190	40	7300/1000	145	3	-	199

*Nominal Stroke corresponding drive voltage 0-150V, Recommended voltage 0~120V for long-term operation to extend lifetime.

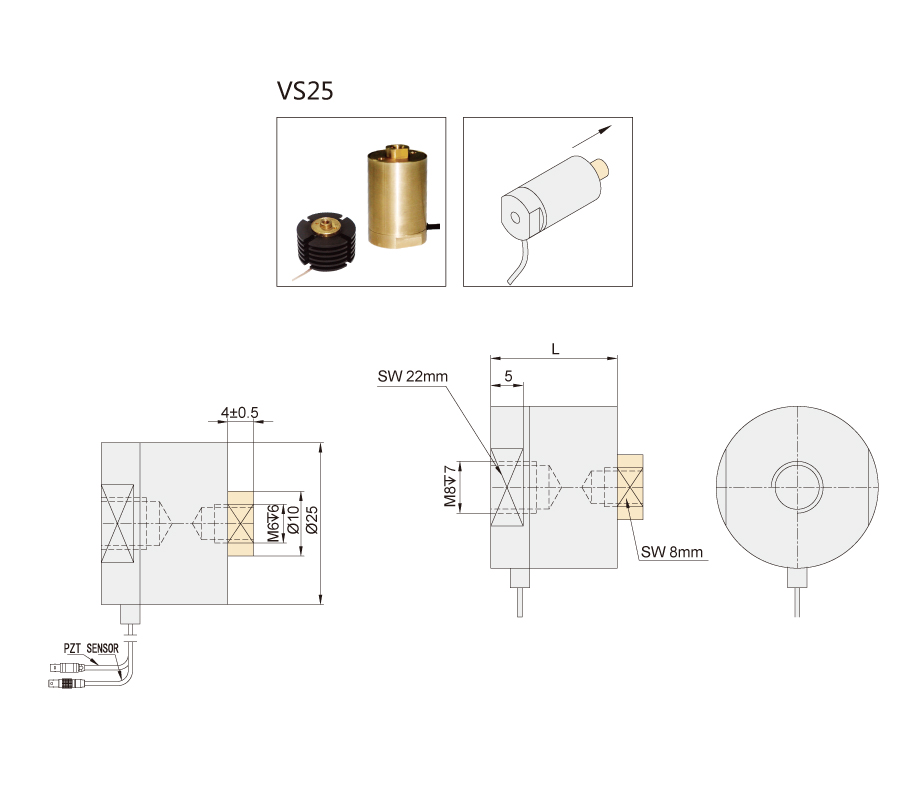

Drawings ( Click on the picture to enlarge it )

Applied for Vibration Suppression

Standard end	Optional ends
Internal	Plane		External		Sphere

See above drawing
See above drawing	Symbol	Parameter	Symbol	Parameter	Symbol	Parameter
	A：	Ø25	A:	Ø25	A：	Ø25
	B:	Ø10	B:	Ø10	B：	Ø10
	C3:	4±0.5	C1:	8±0.5	C2：	6±0.5
			D:	M6	G：	SR3
			E:	SW8mm
			F:	3
