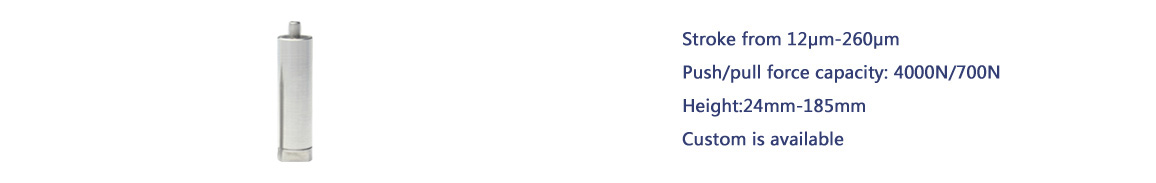

High voltage piezo actuator is preloaded mechanical coating piezo actuator with driving voltage of 1000V. It could withstand some certain pulling force, built-in large generated force piezo ceramic, mainly used for dynamic applications of large loads.
Characteristics
|
|
|
|
|
Applications
|
|
|
|
|
| Technical Data | ||||||||
|
Models |
Max/stroke [μm]±15%* |
Length L [mm]±0.3 |
capacitance [nF]±20% |
Stiffness [N/μm]±20% |
Resonant frequency [kHz] |
Push/pull force [N] |
Weight |
Download |
|
PSt1000/10/7 VS18 |
12/7 |
24 |
20 |
300 |
40 |
4000/700 |
- |
|
|
PSt1000/10/20 VS18 |
27/20 |
33 |
45 |
150 |
35 |
4000/700 |
62.5 |
|
|
PSt1000/10/25 VS18 |
35/25 |
42 |
85 |
100 |
30 |
4000/700 |
- |
|
|
PSt1000/10/40 VS18 |
55/40 |
51 |
110 |
75 |
27 |
4000/700 |
- |
|
|
PSt1000/10/60 VS18 |
80/60 |
69 |
170 |
50 |
23 |
4000/700 |
- |
|
|
PSt1000/10/80 VS18 |
105/80 |
87 |
220 |
35 |
20 |
4000/700 |
230.5 |
|
|
PSt1000/10/100 VS18 |
130/100 |
105 |
270 |
30 |
15 |
4000/700 |
- |
|
|
PSt1000/10/125 VS18 |
160/125 |
125 |
330 |
25 |
10 |
4000/700 |
- |
|
|
PSt1000/10/150 VS18 |
220/150 |
145 |
390 |
17 |
5 |
4000/700 |
- |
|
|
PSt1000/10/200 VS18 |
260/200 |
185 |
510 |
10 |
3 |
4000/700 |
- |
|
*PSt1000: nominal stroke corresponding drive voltage 0-1000V, max to -200V~1000V, recommended voltage 0~800V for long-term operation to extend lifetime. Closed-loop linearity and repeatability are better.
|
Standard end |
Optional ends |
|||||
|
Internal |
Plane |
External |
Sphere |
|||
|
|
|
|
|
|||
|
See above drawing |
|
|
|
|||
|
See above drawing |
Symbol |
Parameter |
Symbol |
Parameter |
Symbol |
Parameter |
|
A： |
Ø18 |
A: |
Ø18 |
A： |
Ø18 |
|
|
B: |
Ø8 |
B: |
Ø8 |
B： |
Ø8 |
|
|
C3: |
4±0.5 |
C1: |
6±0.5 |
C2： |
6±0.5 |
|
|
|
|
D: |
M5 |
G： |
SR3 |
|
|
|
|
E: |
SW6mm |
|
|
|
|
|
|
F: |
3 |
|
|
|
