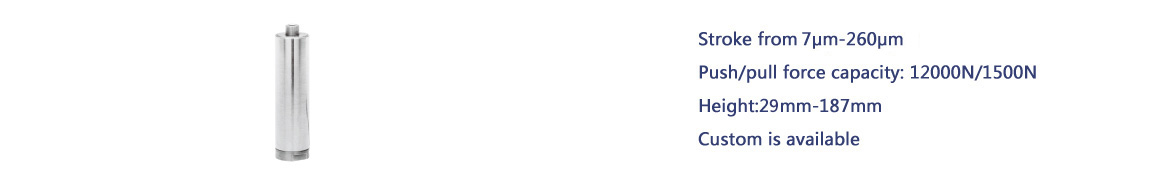

High voltage piezo actuator is preloaded mechanical coating piezo actuator with driving voltage of 1000V. It could withstand some certain pulling force, built-in large generated force piezo ceramic, mainly used for dynamic applications of large loads.
Characteristics
|
|
|
|
|
Applications
|
|
|
|
|
| Technical Data | |||||||
|
Models |
Max/stroke [μm]±15%* |
Length L [mm]±0.3 |
capacitance [nF]±20% |
Stiffness [N/μm]±20% |
Resonant frequency [kHz]±20% |
Push/pull force [N] |
Download |
|
PSt1000/16/7 VS25 |
12/7 |
29 |
60 |
800 |
40 |
12000/1500 |
|
|
PSt1000/16/20 VS25 |
27/20 |
35 |
150 |
400 |
35 |
12000/1500 |
|
|
PSt1000/16/40 VS25 |
55/40 |
53 |
360 |
200 |
30 |
12000/1500 |
|
|
PSt1000/16/60 VS25 |
80/60 |
71 |
540 |
120 |
27 |
12000/1500 |
|
|
PSt1000/16/80 VS25 |
105/80 |
89 |
720 |
90 |
23 |
12000/1500 |
|
|
PSt1000/16/100 VS25 |
130/100 |
107 |
900 |
75 |
20 |
12000/1500 |
|
|
PSt1000/16/125 VS25 |
160/125 |
127 |
1100 |
60 |
15 |
12000/1500 |
|
|
PSt1000/16/150 VS25 |
200/150 |
147 |
1400 |
50 |
7 |
12000/1500 |
|
|
PSt1000/16/200 VS25 |
260/200 |
187 |
1900 |
35 |
4 |
12000/1500 |
|
*PSt1000: nominal stroke corresponding drive voltage 0-1000V, max to -200V~1000V, recommended voltage 0~800V for long-term operation to extend lifetime. Closed-loop linearity and repeatability are better.
|
Standard end |
Optional ends |
|||||
|
Internal |
Plane |
External |
Sphere |
|||
|
|
|
|
|
|||
|

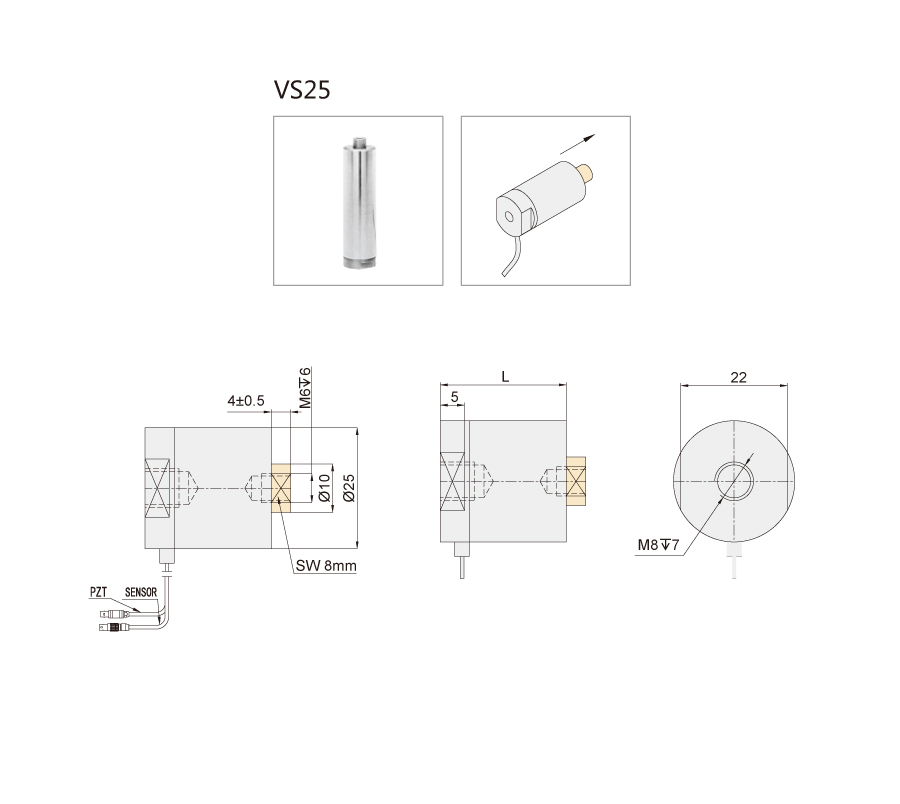

See above drawing |
|
|
|
|||
|
See above drawing |
Symbol |
Parameter |
Symbol |
Parameter |
Symbol |
Parameter |
|
A： |
Ø25 |
A: |
Ø25 |
A： |
Ø25 |
|
|
B: |
Ø10 |
B: |
Ø10 |
B： |
Ø10 |
|
|
C3: |
4±0.5 |
C1: |
8±0.5 |
C2： |
6±0.5 |
|
|
|
|
D: |
M6 |
G： |
SR3 |
|
|
|
|
E: |
SW8mm |
|
|
|
|
|
|
F: |
3 |
|
|
|
