High voltage piezo actuator is preloaded mechanical coating piezo actuator with driving voltage of 1000V. It could withstand some certain pulling force, built-in large generated force piezo ceramic, mainly used for dynamic applications of large loads.

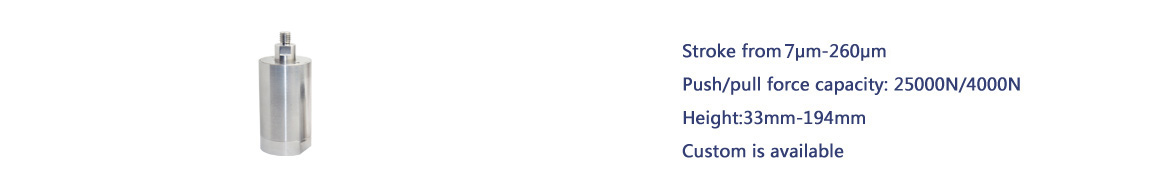

Characteristics
|
|
|
|
|
Applications
|
|
|
|
|
| Technical Data | |||||||
|
Models |
Max/stroke [μm]±15%* |
Length L [mm]±0.3 |
capacitance [nF]±20% |
Stiffness [N/μm]±20% |
Resonant frequency [kHz] |
Push/pull force [N] |
Download |
|
PSt1000/25/7 VS35 |
12/7 |
33 |
140 |
1800 |
40 |
25000/4000 |
|
|
PSt1000/25/20 VS35 |
27/20 |
42 |
350 |
900 |
35 |
25000/4000 |
|
|
PSt1000/25/40 VS35 |
55/40 |
60 |
800 |
450 |
30 |
25000/4000 |
|
|
PSt1000/25/60 VS35 |
80/60 |
78 |
1250 |
300 |
27 |
25000/4000 |
|
|
PSt1000/25/80 VS35 |
105/80 |
96 |
1700 |
200 |
23 |
25000/4000 |
|
|
PSt1000/25/100 VS35 |
130/100 |
114 |
2150 |
180 |
20 |
25000/4000 |
|
|
PSt1000/25/125 VS35 |
160/125 |
134 |
2500 |
150 |
15 |
25000/4000 |
|
|
PSt1000/25/150 VS35 |
200/150 |
154 |
3200 |
120 |
7 |
25000/4000 |
|
|
PSt1000/25/200 VS35 |
260/200 |
194 |
3700 |
90 |
5 |
25000/4000 |
|
*PSt1000: nominal stroke corresponding drive voltage 0-1000V, max to -200V~1000V, recommended voltage 0~800V for long-term operation to extend lifetime. Closed-loop linearity and repeatability are better.
|

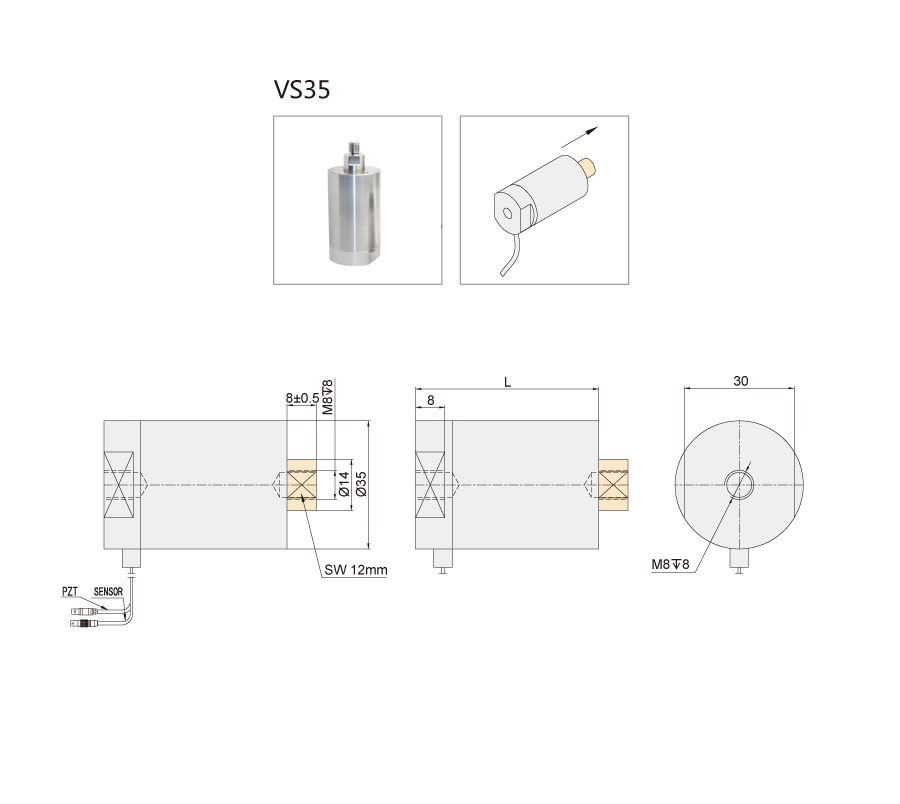

Standard end |
Optional ends |
|||||
|
Internal |
Plane |
External |
Sphere |
|||
|
|
|
|
|
|||
|
See above drawing |
|
|
|
|||
|
See above drawing |
Symbol |
Parameter |
Symbol |
Parameter |
Symbol |
Parameter |
|
A： |
Ø35 |
A: |
Ø35 |
A： |
Ø35 |
|
|
B: |
Ø14 |
B: |
Ø14 |
B： |
Ø14 |
|
|
C3: |
8±0.5 |
C1: |
14±0.5 |
C2： |
11±0.5 |
|
|
|
|
D: |
M8 |
G： |
SR4 |
|
|
|
|
E: |
SW12mm |
|
|
|
|
|
|
F: |
6 |
|
|
|
