Low voltage piezo stacks have excellent performance, suitable for scientific experiments and industrial applications. Special insulation material ensures maximum output of dynamic performance under severe conditions.
Applications
|
|
|
|
|
|
|
|
|
|
| Technical Data | |||||||
|
Models |

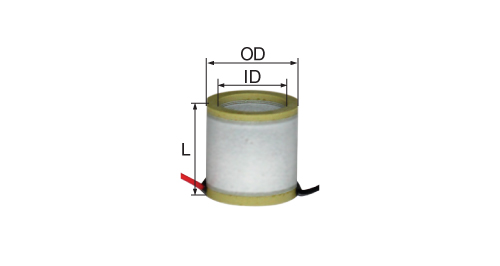

Dimensions[1] OD-ID/L [mm] |
Max./Stroke[2] [μm]±15% |
El.capacitance [μF]±20% |
Stiffness [N/μm]±10% |
Resonant frequency [kHz] |
Blocking Force [N] |
Download |
|
HPSt150/14-10/12H |
14.1-9.9/13.5 |
16/12 |
2.6 |
250 |
75 |
4500 |
|
|
HPSt150/14-10/12L |
15-9/13.5 |
||||||
|
HPSt150/14-10/25H |
14.1-9.9/27 |
30/25 |
5.2 |
120 |
22 |
4500 |
|
|
HPSt150/14-10/25L |
15-9/27 |
||||||
|
HPSt150/20-15/12H |
20.1-14.9/13.5 |
16/12 |
5 |
450 |
75 |
8000 |
|
|
HPSt150/20-15/12L |
21-14/13.5 |
||||||
|
HPSt150/20-15/25H |
20.1-14.9/27 |
32/25 |
10 |
230 |
22 |
8000 |
|
|
HPSt150/20-15/25L |
21-14/27 |
||||||
|
HPSt150/20-15/40H |
20.1-14.9/40.5 |
50/40 |
15 |
150 |
15 |
8000 |
|
|
HPSt150/20-15/40L |
21-14/40.5 |
||||||
Notes: In standard lead, the red line is positive. About PSt50/PSt100 series, the red line is negative.
[1] The dimensions of piezo stack is not include thickness of resin. The single side thickness of Gray resin is 50μm and the green resin is 0.5mm, outlet size single side +1mm, tolerance +/-0.2mm, the heightness tolerance +/-0.05mm.
[2] PSt150: stroke is under 0~150V, Max. stroke is under -30~150V. Recommended voltage 0-120V for long-time high reliability.
|
|
