What is piezo tip/tilt platform?

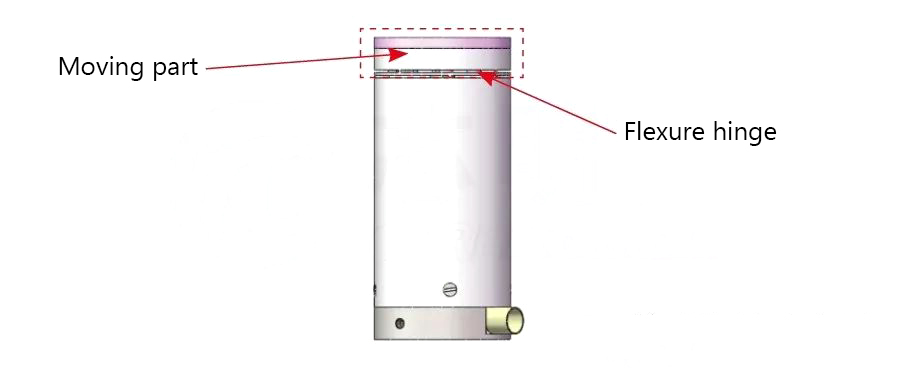

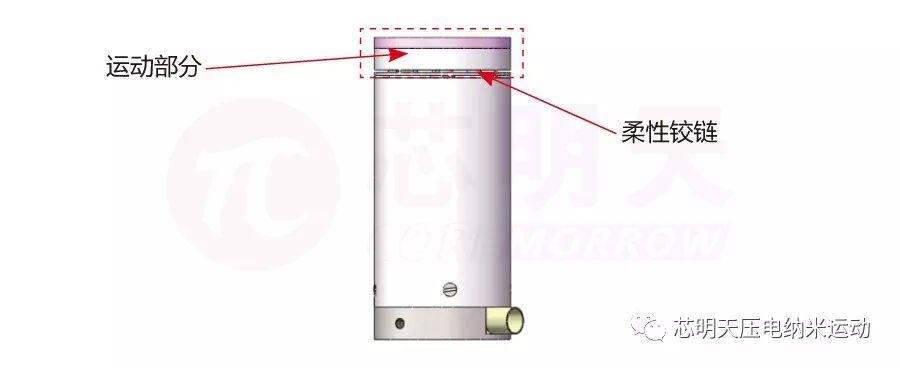

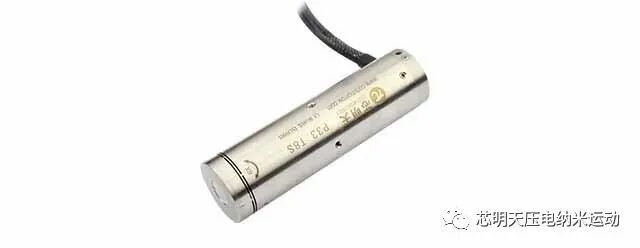

Series of Piezo Tip/Tilt Platform

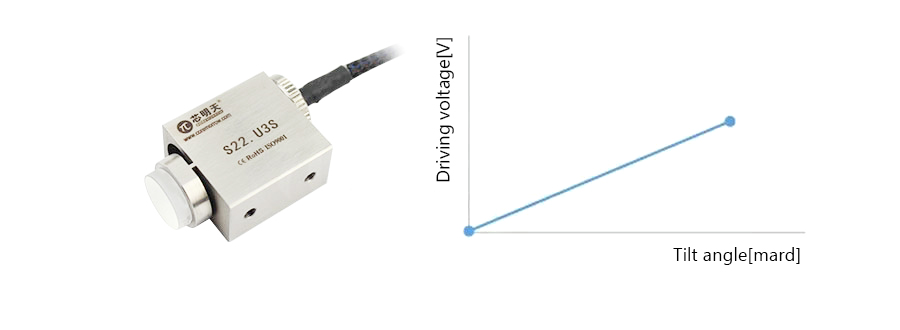

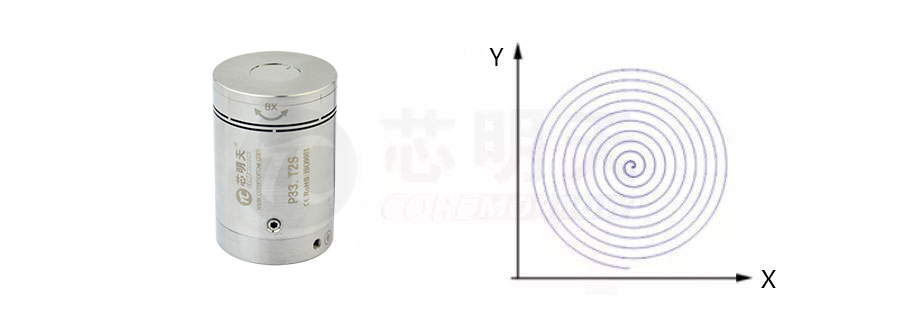

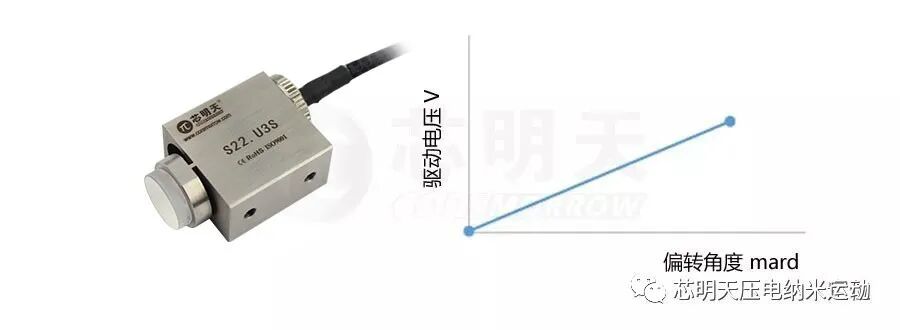

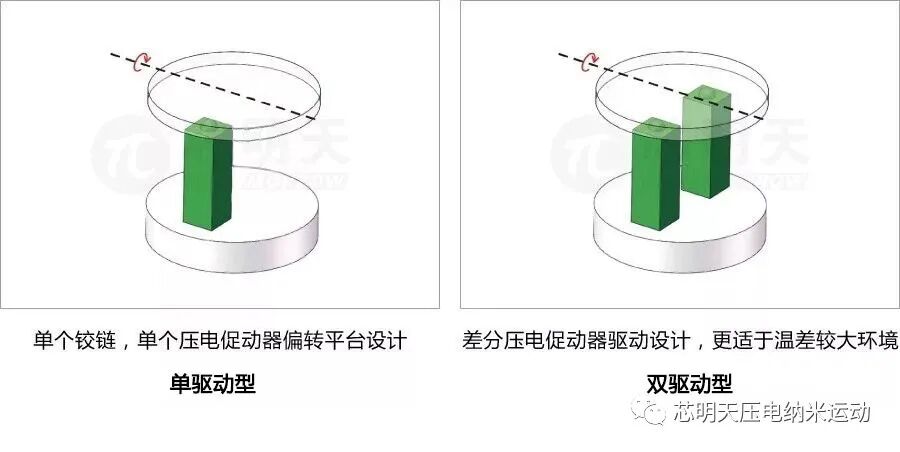

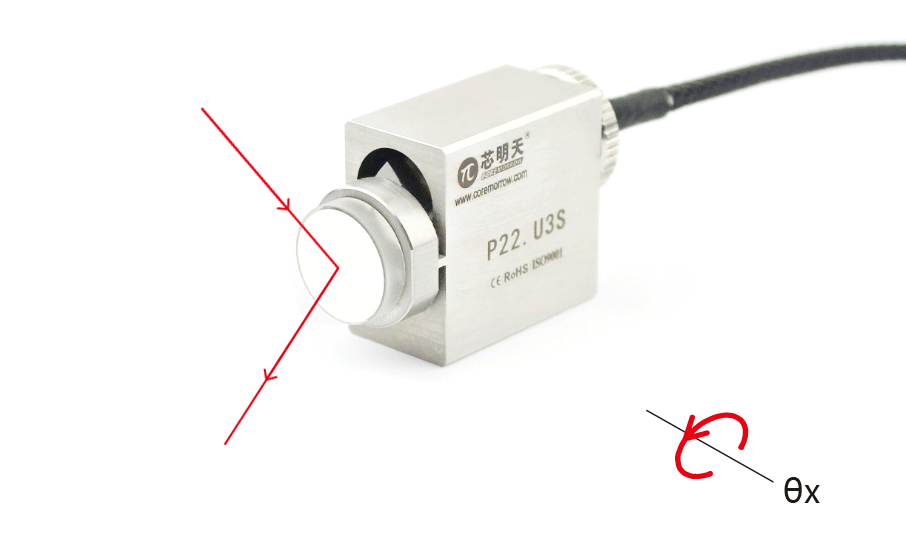

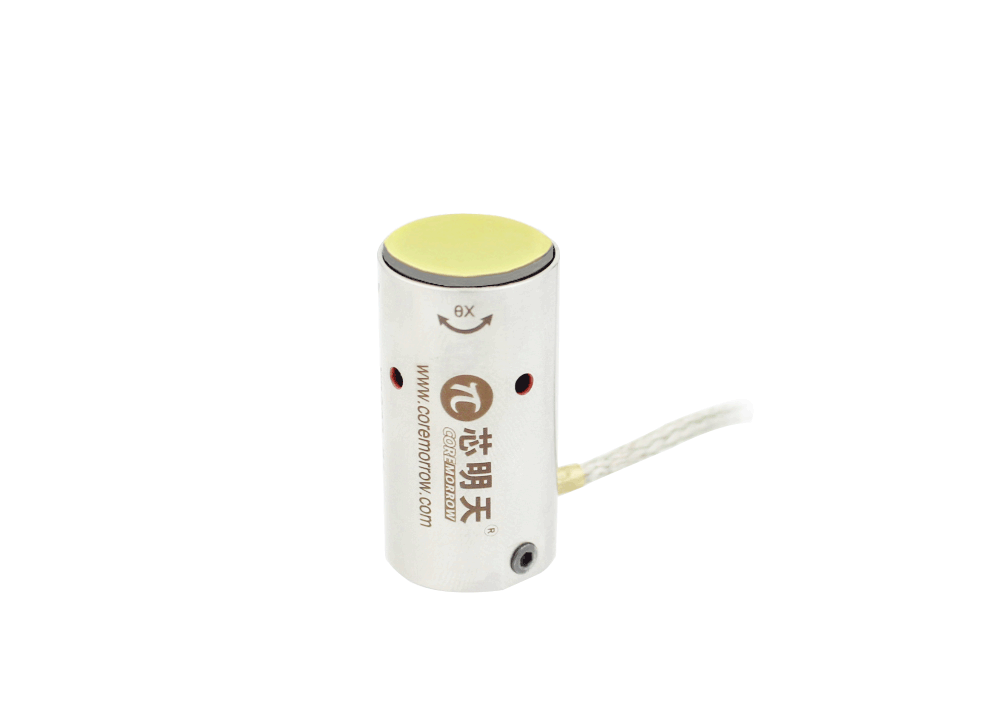

1)One-Dimensional θx-Axis Tilt Motion

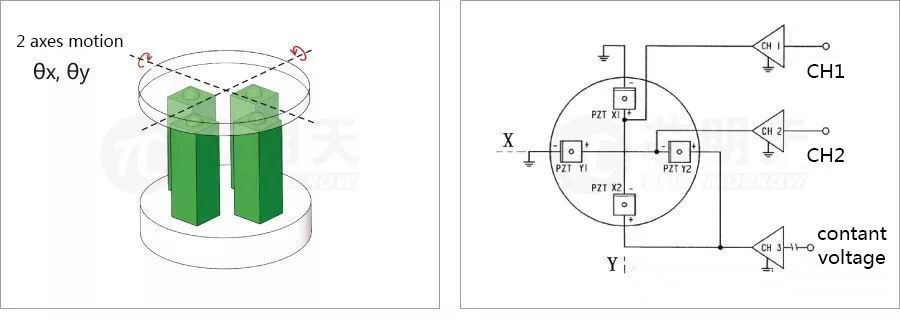

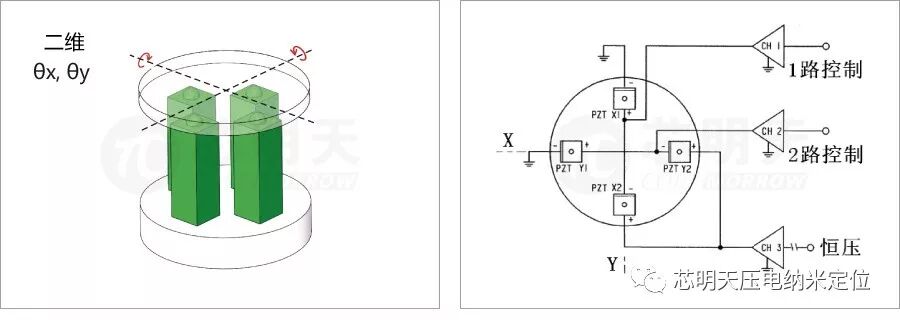

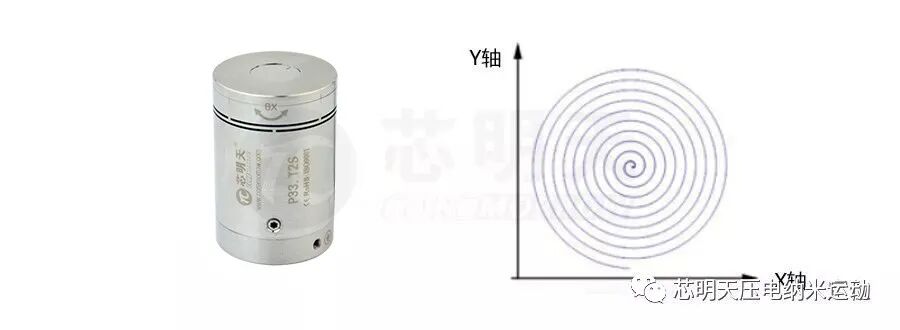

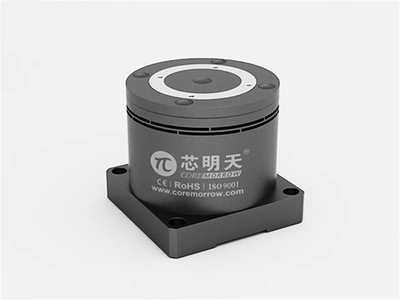

2)Two-Dimensional θx θy-Axes Tilt Motion

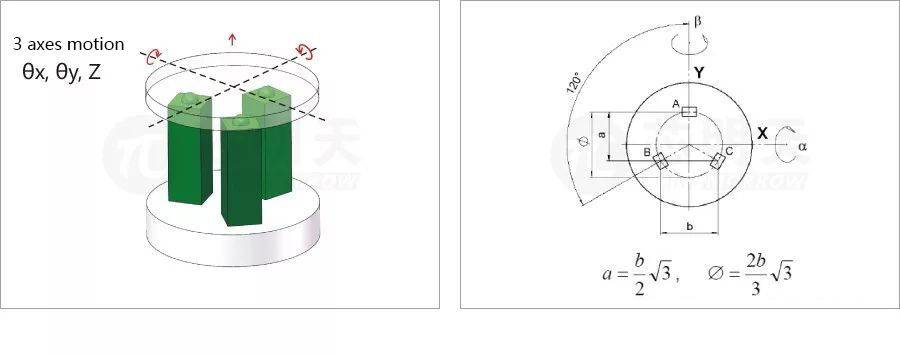

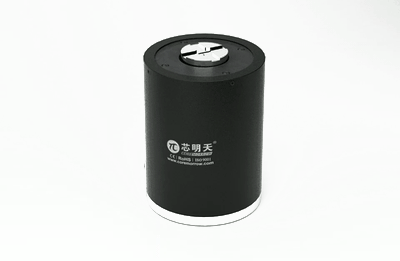

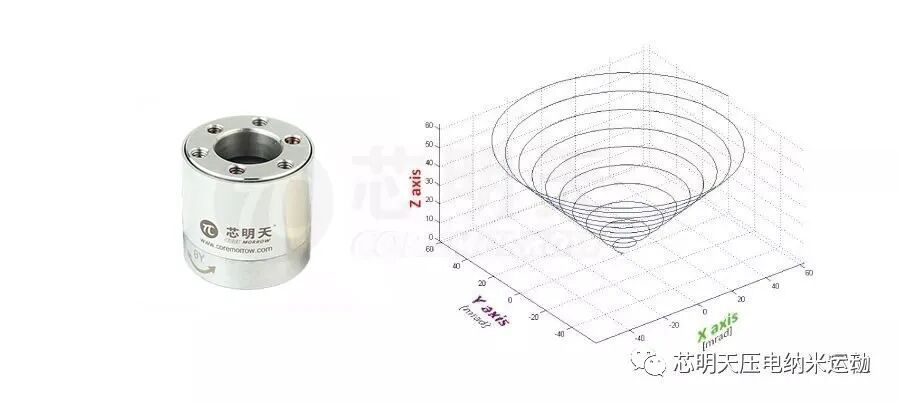

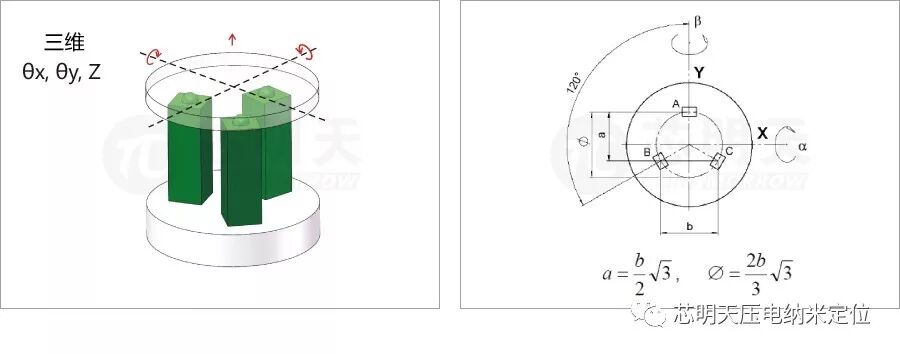

3)Three-Dimensional θx θy Z -Axes Motion

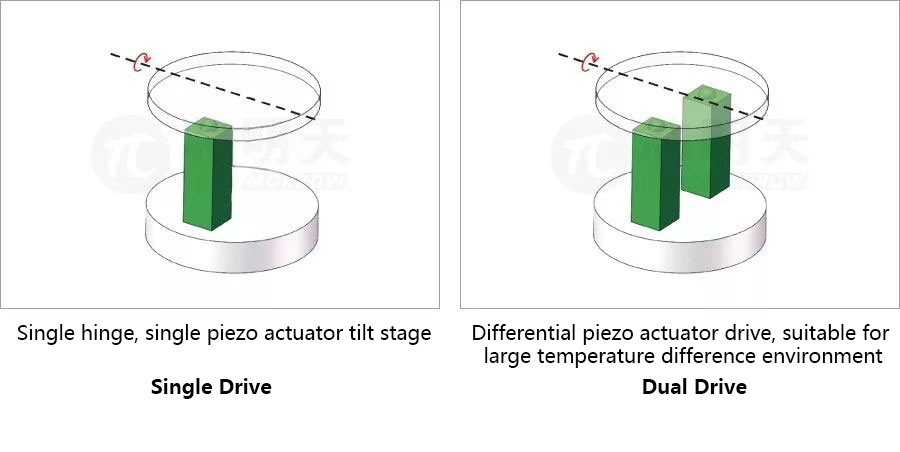

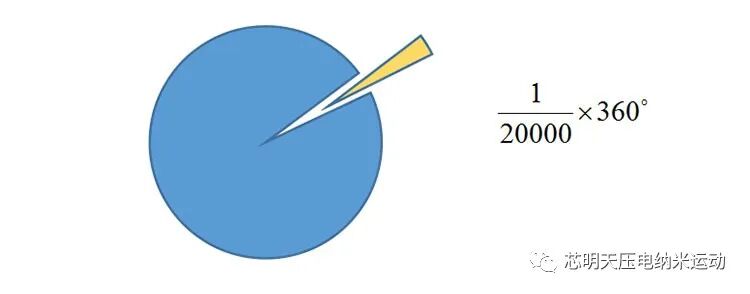

Features of Piezo Tip/Tilt Platform
Applications of Piezo Tip/Tilt Platform

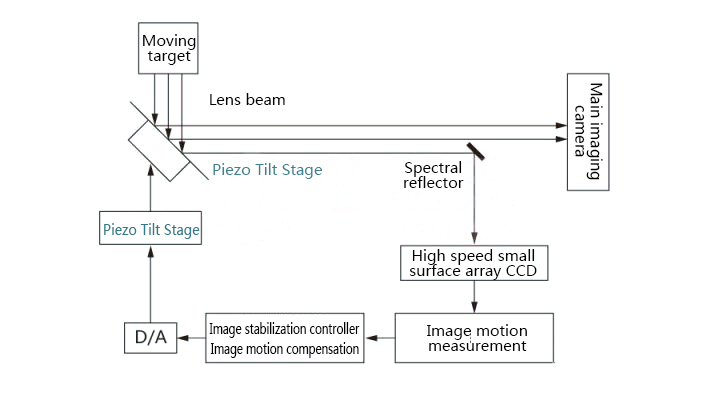

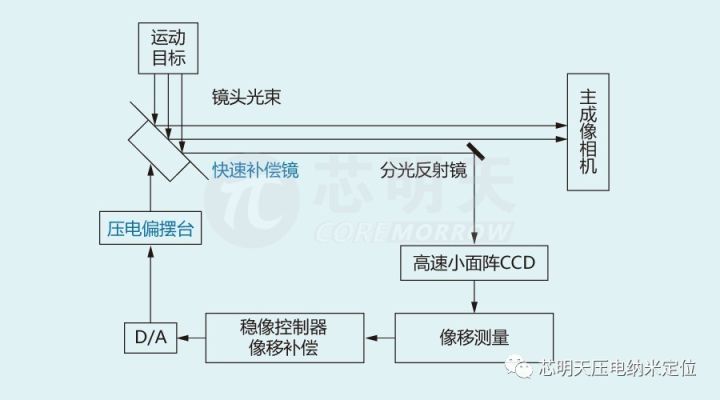

1)Optical imaging system
2) Laser stabilization system experiment

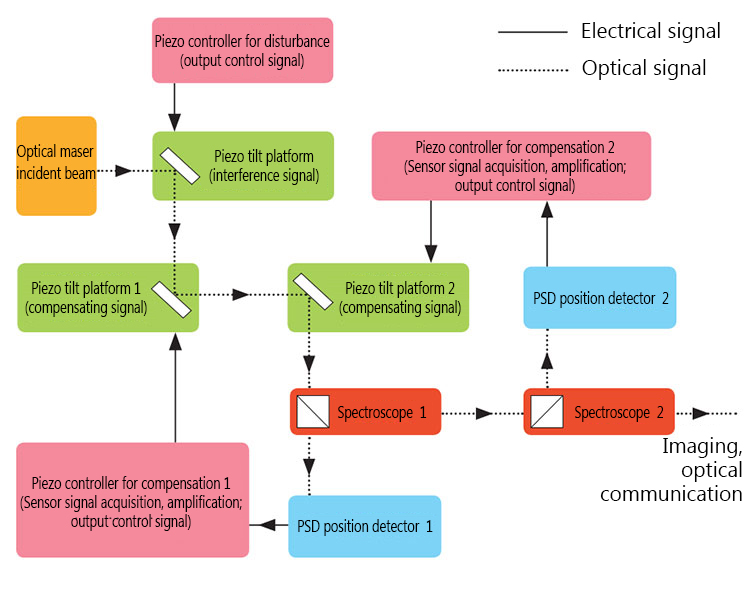

In many scientific research fields, for reasons such as the verification of the principle, piezo tilt platform are used to build laser stabilization systems.

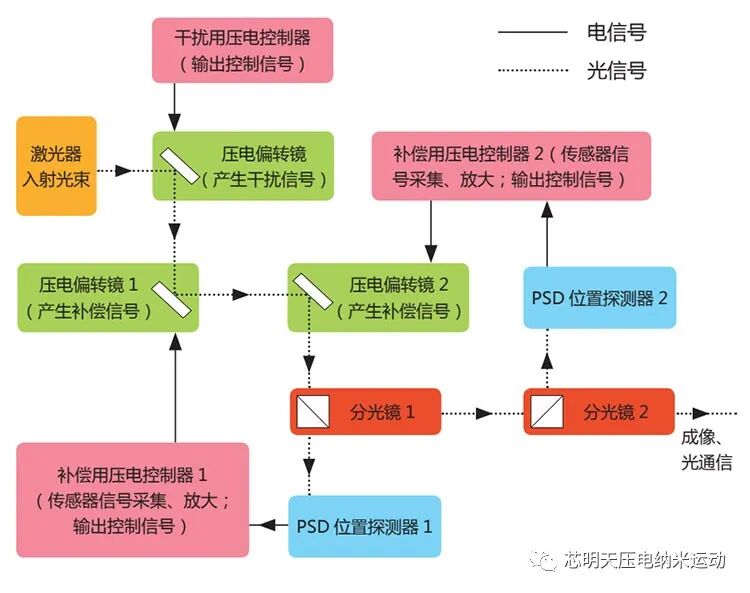

1 : Laser, light source;
2: E70 piezo controller, driving piezo tilt platform for interference;
3, 4: E70 piezo controller, driving piezo tilt platform for compensation;
5 : P33.T2 piezo tilt platform, which generates interference signal and makes laser transmission unstable;
6, 7: P33.T2 piezo tilt platform, which generates compensation signal to keep laser transmission stable;
8: 45° beam splitter;
9, 10: PSD laser position detector, real-time detection and feedback of laser position;
11: Computer, closed-loop compensation control and compensation effect display.
3)Material processing

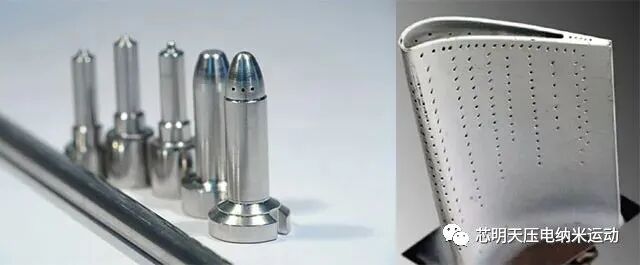

For the processing aperture and hole spacing accuracy requirements are very high, such as a few microns to hundreds of microns in aperture, tens of microns in hole spacing, etc., the use of CoreMorrow piezo tilt platform to control the precise direction of the laser and its fast response speed and other characteristics , which can completely solve the problems of low processing precision of tiny holes and unsmooth aperture.
Piezo Tip/Tilt Platform Installation and Operation Instructions

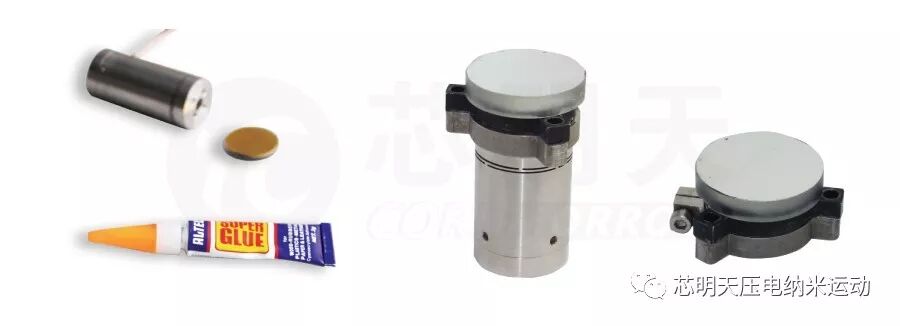

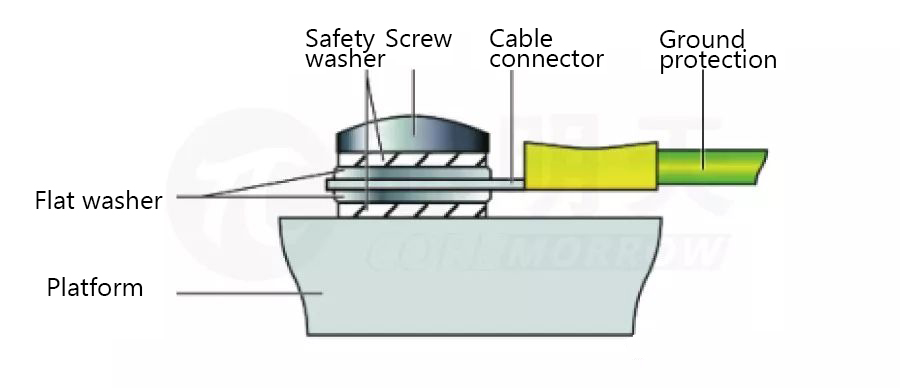

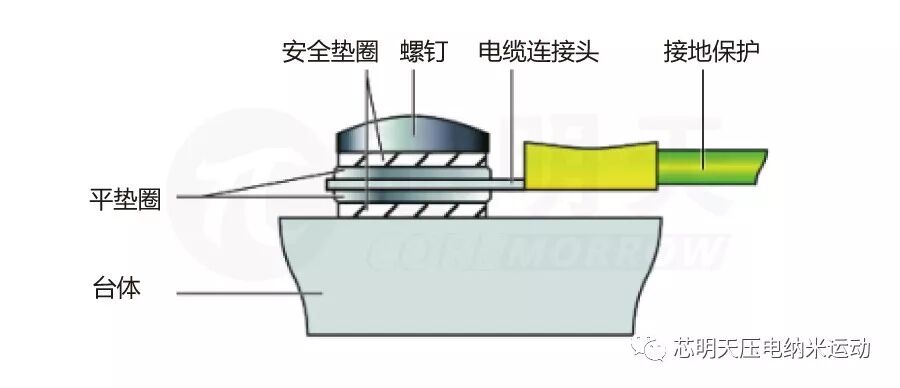

1)Safety Guidelines

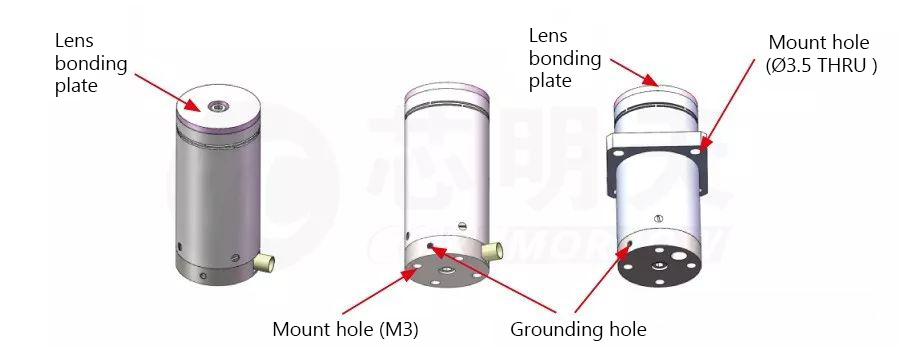

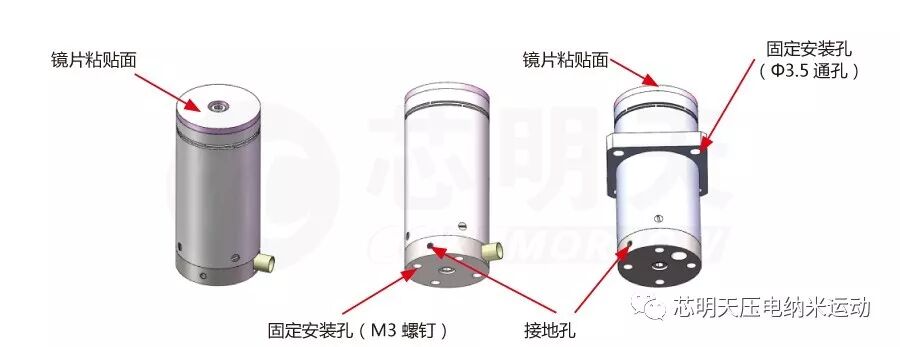

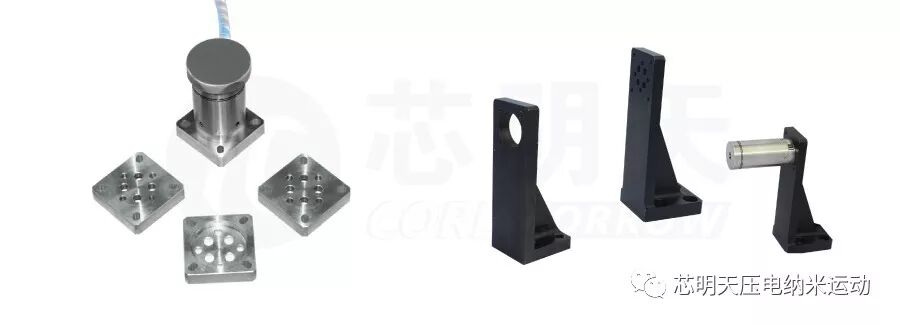

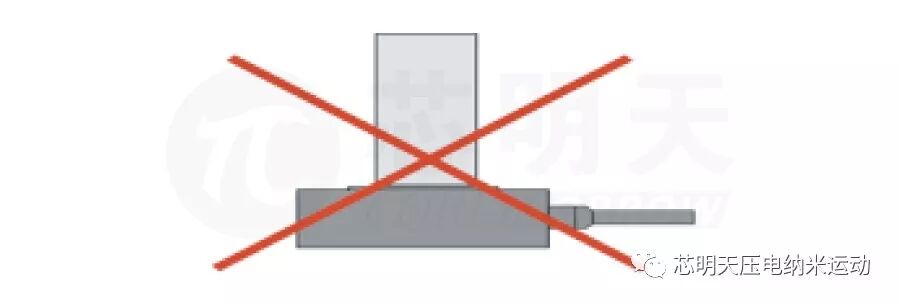

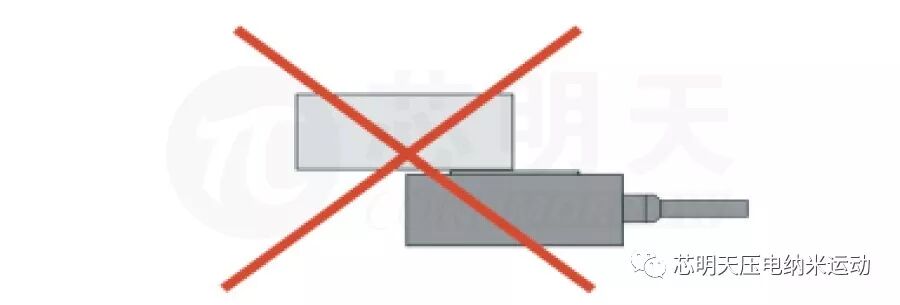

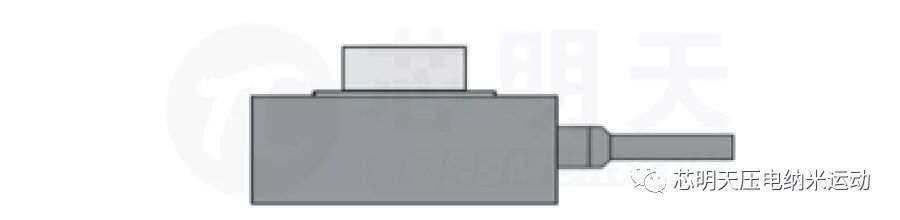

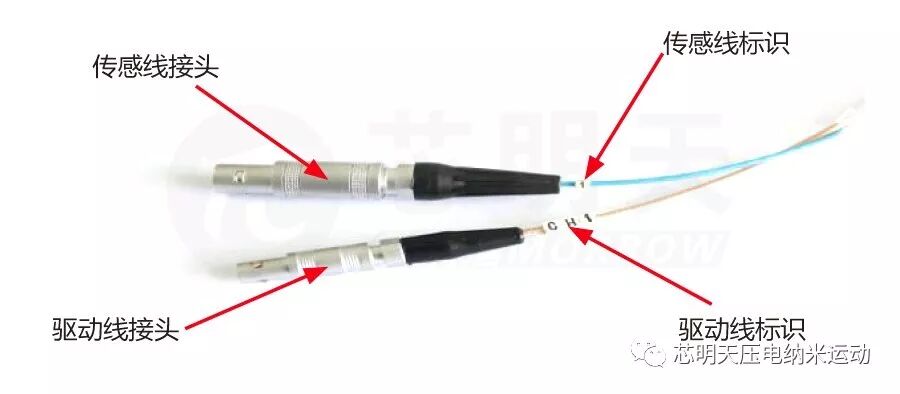

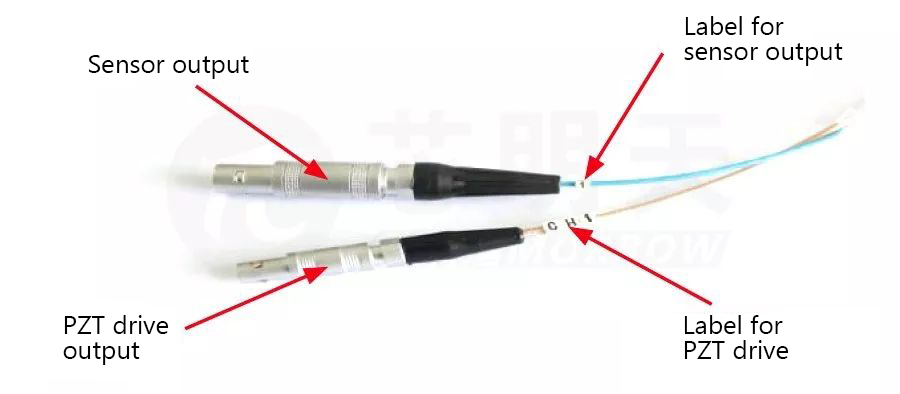

2)Installation and operation
