E81.A1K-I1 Series Kilowatt Piezo Power Amplifier!

Update time：2021-11-11 08:32:54Clicks：1263second


The E81.A1K-I1 series piezo amplifier is designed for driving capacitive loads high-current, high-power applications. Its output voltage is up to 200V, the average output current is up to 5.4A, and the output bandwidth is up to 5kHz.

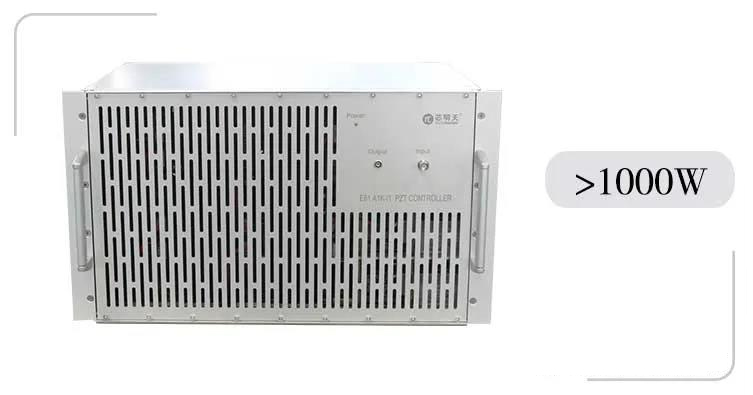

E81.A1K-I1 is equipped with a powerful heat dissipation module to meet its powerful output capacity!




Features




· High power output
· Output voltage up to 200V
· Analog signal control
· Bandwidth up to 5kHz



Operating Bandwidth

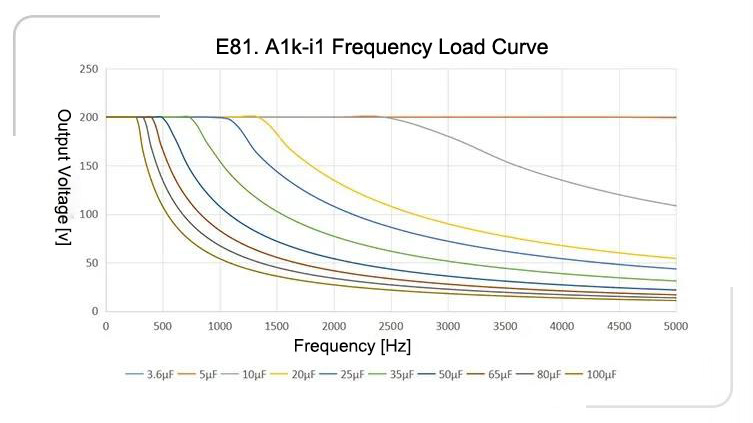

The operating bandwidth of the E81.A1K-I1 series of high-power piezo amplifiers can reach 5kHz, that is, its bandwidth output capability. The frequency and voltage curves of different capacitive loads are shown in the following figure.



In actual application, the achievable drive bandwidth capability under different capacitive loads can be estimated according to the average current calculation formula I=UfC, where U is the output voltage, f is the operating frequency, and C is the capacitance of the capacitive load. For example, when driving a 25μF capacitive load, the driving frequency can reach 1kHz under a driving voltage of 200V; while driving a 100μF capacitive load, if you want to drive the frequency at 1kHz, then E81.A1K-I1 output drive voltage is around 60V.

Technical Parameter




Model: E81.A1K-I1
Input voltage range: 0～10V
Output voltage range: 0～200V
Peak current: >20A
Average current: 5.4A
Amplifier gain: 20
Amplifier bandwidth: 5kHz
Ripple: 20mVpp (loading 2.2μF)
Operating temperature range: 0~50℃
Output short circuit current: 60mA
PZT connector: LEMO
Power supply input voltage: 220VAC
Static power consumption: ≤55W
Input power: 1480W
Chassis size: L449×D325×H266.8mm^3

Application

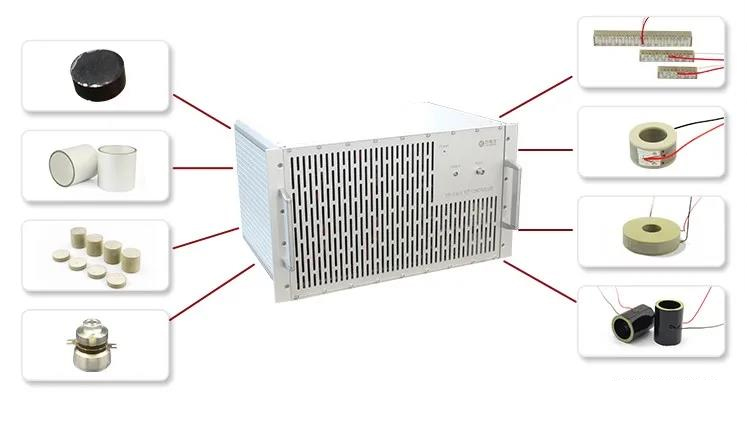

E81.A1K-I1 series piezo amplifiers are very suitable for high-power, high-frequency applications, and have a wide range of applications in industry, scientific research and other fields, such as active vibration control, adaptive optics, precision machining, optics, metrology, laser tuning. Driving various types of piezo actuators and piezo transducers to achieve high-frequency operation of piezo actuators.
