N18 Small Volume Linear Piezo Motor - Cryo, Non-magnetic, Vacuum Compatible
In today's high-speed iteration of science and technology, the pursuit of precision motion control in various industries continues to climb, from the forefront of semiconductor manufacturing, to the biomedical field of life and health, from the exploration of the mysteries of the universe in the aerospace field, to the daily intelligent electronic equipment. Demand for high-precision, high-reliability linear motion drive is everywhere. Linear piezo motor with its large stroke, high precision, fast response speed and other performance advantages, has become the core force to promote many industries to new heights.
CoreMorrow Linear Piezo Motors
N18 Small Volume Linear Piezo Motor - Cryo, Non-magnetic,
Vacuum Compatible

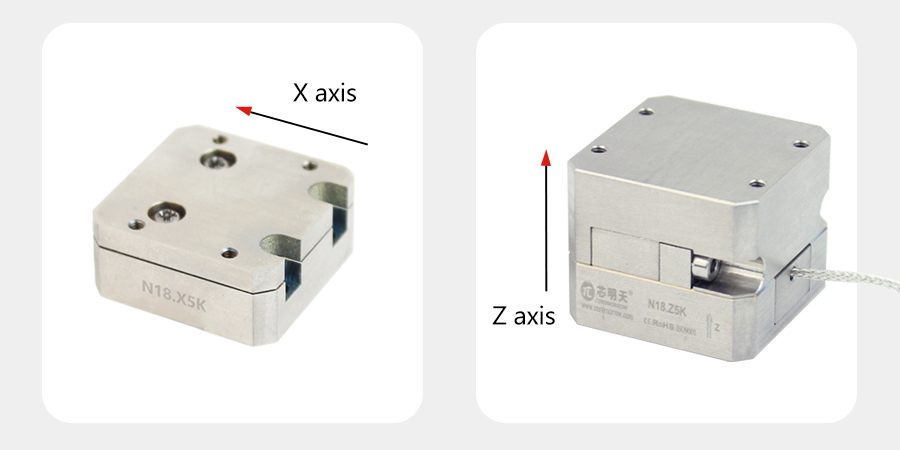

N18 piezo motor is a linear motion stage which is equipped with high-performance piezo ceramics and driven by stick-slip principle. Through a special structural design, the linear micro-displacement of the piezoelectric ceramics is converted into a macroscopic linear millimeter-stroke, achieving high-precision positioning. The displacement direction can be selected in two motion modes: X and Z. The travel distance can be up to 5mm with resolution of 6nm and the speed of 3mm/s. It can be used in low-temperature, vacuum, and non-magnetic application environments. The compact design makes it easy to deploy and integrate, injecting strong impetus into the miniaturization and integration of equipment. The product is shown in the following picture.
Characteristics
Active axis: X or Z
Travel to 5mm
Low temperature, vacuum, non-magnetic compatible
Driven by the stick-slip principle
Operating temperature range: -40 to 50℃
Self-locking at rest
Typical Application
Note: Image from online resources
Note: Image from online resources
Note: Image from online resources
Note: Image from online resources
Technical Data
|
Model |
|
|
|
|
Active axis |
|
|
|
|
Nominal travel range |
5mm or ±2.5mm |
||
|
Max. speed |
|
||
|
Resolution |
|
||
|
Push/pull force |
|
||
|
Holding force (Self-locking at rest) |
|
||
|
Load capacity |
Horizontal mounting |
|
|
|
Max. speed |
Horizontal mounting |
|
|
|
Working temperature |
|
||
|
Cable length |
|
||
|
Material |
Ti |
||
|
Mass |
|
|
|
Recommended Controller

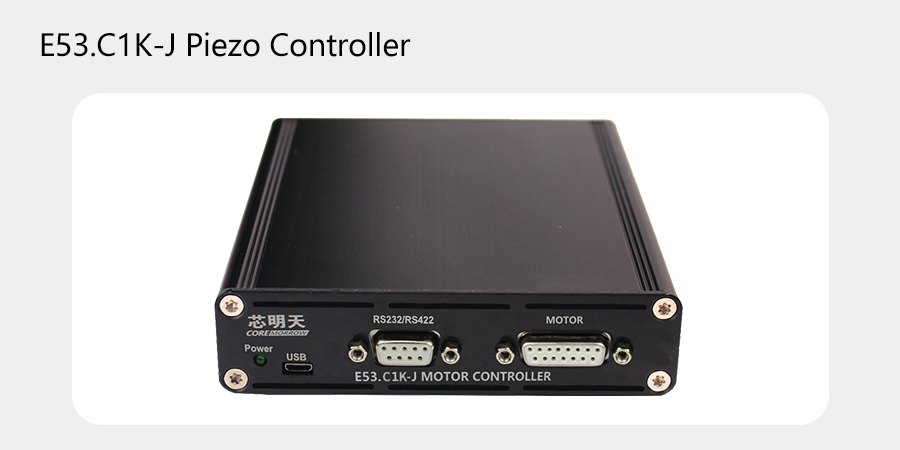

E53.C1K-J piezo controller is highly suitable for driving N18 series piezo motor. It is a single-channel open-loop piezo controller, digitally controlled, powered by 24VDC, with a static power consumption of less than 5W. The communication interfaces are TYPE-C, RS-422, and RS-232. With dimensions of only 105×103×30.1mm^3, it has a very compact structure and very easy to integrate and operate.
