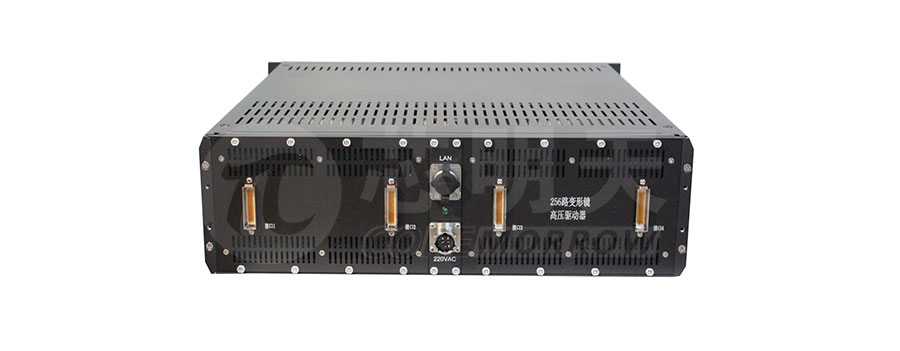

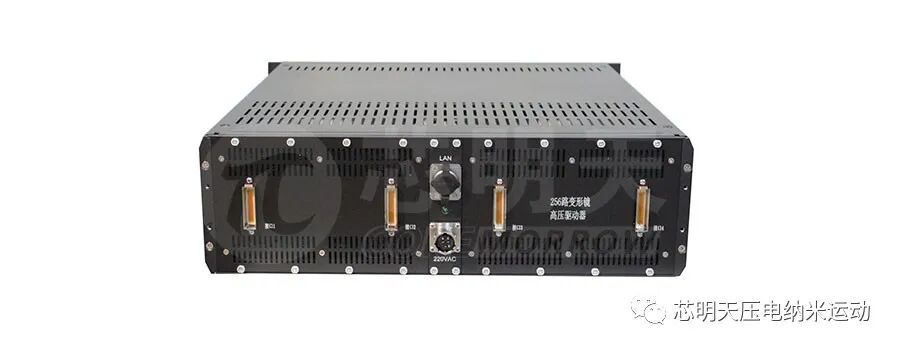

E82.C256K piezo deformation mirror controller is a amplifier specially developed and designed for driving piezo deformation mirror products. The channels is up to 256, and it adopts Ethernet communication. Communicating through the Ethernet protocol, the general performance LAN network can meet reliable communication; the number of node equipment can be expanded, and multiple PCs can be managed at the same time; multi-threaded concurrency, data synchronization, and good real-time performance.

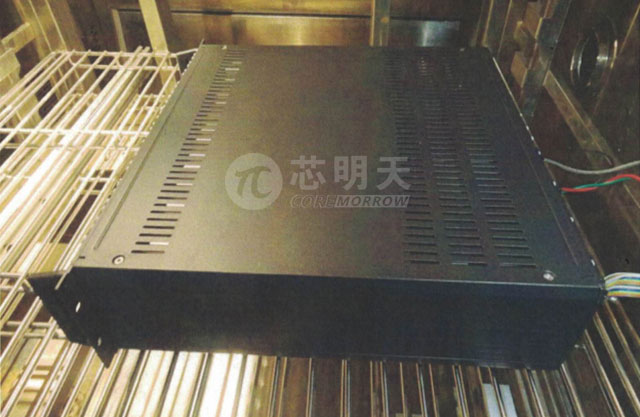

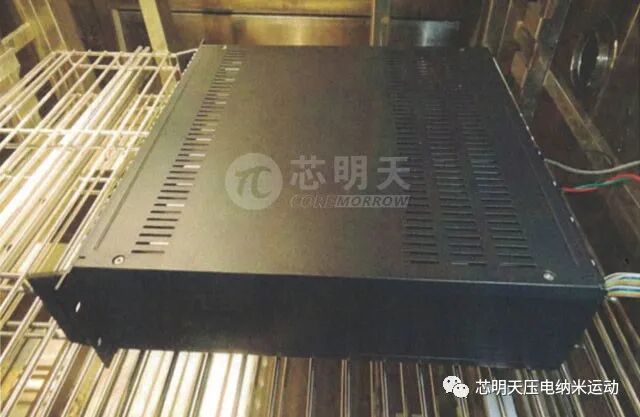

High and low temperature experiment

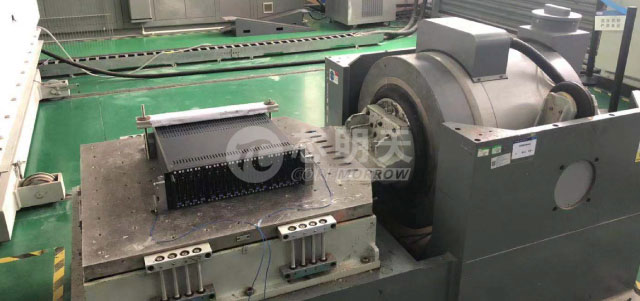

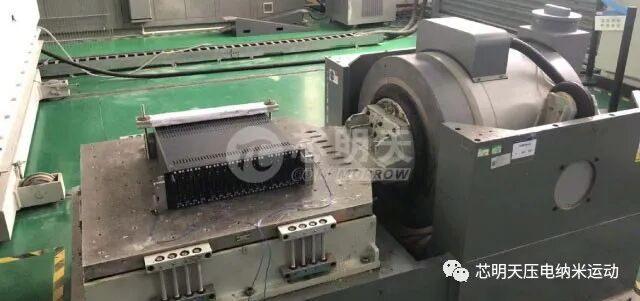

Vibration measurement
Technical data
Model: E82.C256K
Output channel: 256
Output voltage: -20~+120V
Output voltage resolution: 5mV
Output voltage ripple: 10mV(RMS)
Ave. current: 30mA/channel
Peak current: 90mA/channel
Output bandwidth: 1kHz
Output protection: over-current protection
Output interface: AVIC Photoelectric A950 series(optional)
Communication interface: ethernet
AD gathering function: software screen display
Power supply: AC 220V
Input power: 1300W
Mass: 26kg
Dimension: 19inch 3U W482×H134×D495mm
Operating temperature : -10~+40℃
Storage temperature: -25~+50℃
