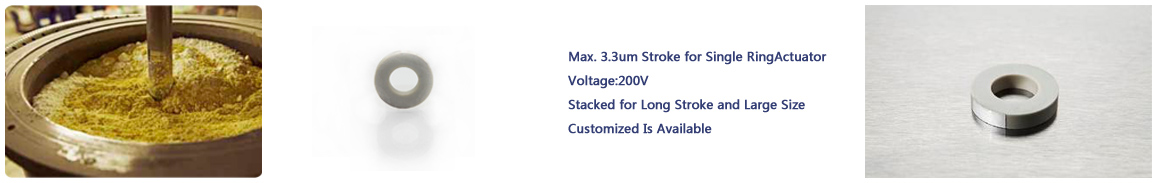

Ring Piezo ActuatorsCurrent Location:Product Homepage >> PZT Ring/Plate Actuators>>Ring Piezo Actuators
  • Technical Data
  • Feedback
    Technical Data

Models

OD[mm]

ID[mm]

H[mm]

Voltage[V]

Sroke
[μm]±15%

El.capacitance
[nF]±15%

Resonant Frequency
[kHz]±20%

Stiffness
[N/μm]±20%

Blocking Force
[N]±20%

Weight
[g]±5%

HMTP21

6(±0.2)

2(±0.1)

2

200

3.3

105

486

321

1060

0.38

HMTP22

8(±0.25)

3(±0.1)

2

200

3.3

200

486

548

1810

0.67

HMTP23

12(±0.4)

6(±0.2)

2

200

3.3

380

486

1079

3560

1.36

HMTP24

15(±0.45)

9(±0.3)

2

200

3.3

510

486

1439

4750

1.75

HMTP25

20(±0.6)

12(±0.4)

2

200

3.3

890

486

2561

8450

3.13
