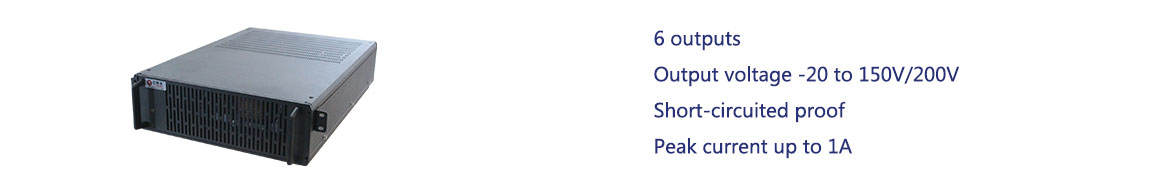

E00.A3AL chassis-type piezo controller is a customized one with 6 outputs, and each channel features different output voltage and current that is to satisfy different applications.
Characteristics
|
|
|
|
|
6 outputs| Technical Data | |
|
Type |
E00.A3AL |
|
Channels |
6 |
|
Input voltage range(V) |
Channel 1: -1~10 Channel 2 to 6: -1.33~10 |
|
Output voltage range(V) |
Channel 1: -20~200 Channel 2 to 6: -20~150 |
|
Ripple(mV) |
5 |
|
Unloaded bandwidth(kHz) |
Channel 1: ≥20 Channel 2 to 6: ≥10 |
|
Ave.current(mA) |
Channel 1: 175 Channel 2 to 6: 233 |
|
Peak current(A) |
1 |
|
PZT connector |
Channel 1 to 4: 4W4 D-SUB Channel 5 to 6: 2W2 D-SUB |
|
Analog input connector |
13W6A D-SUB |
|
Operating temperature(℃) |
0~50 |
|
Current limit |
Short-circuited proof |
|
Output short-circuited current(mA) |
50 |
|
Static dissipation(W) |
30 |
|
L×H×D(mm) |
436×129.5×620 |
|
Power supply |
AC 220V±10％，50Hz±10％ |
|
Mass(kg) |
21 |
