E00.B12 Piezo Controller(E03 module)Current Location:Product Homepage >> Modular piezo controller>>E00.B12 Piezo Controller(E03 module)
E00.B12 Piezo Controller with 12 channels outputing -20V to +150V
  • Introduction
  • Feedback

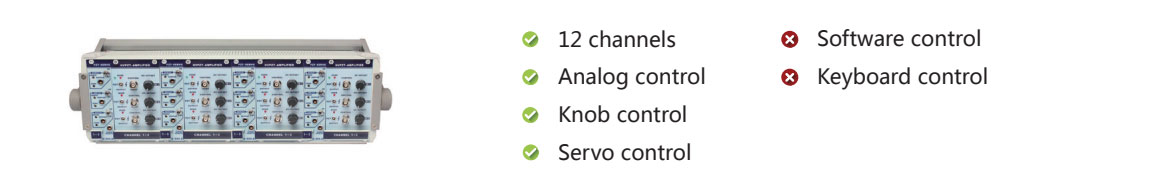

Characteristics


 12 channels

 Analog control

 Knob control

 Servo control

    Technical Data

Type

E00.B12(E03 module)

Power amplifier module

Channels

12

Contol analog input

-1.67~10V(Optional 0~5V)

Output voltage

-20~120V(Optional -20~150V)

Ripple

5mV

Voltage stability

< 0.1%F.S./8hours

Input impedance

100KΩ±20%

Bandwidth

10kHz(Optional 30k, 50kHz, etc.)

Ave.current

58mA

Peak current

1A

Bandwidth (1/10 signal)

>20kHz

Voltage gain

12

Knob adjustment

10 turns

PZT sensor control module

Sensor type

SGS(Optional LVDT, CAP)

Sensor channels

12

Servo

Analog P-I+notch filter

Sensor port

ERA.0S.304.CLL

Sensor output port

ERA.0S.303.CLL

Output voltage

0~10V

Operating temperature

0~50℃

Chassis & power supply module

Power supply

AC 220V±10%,50Hz±10%

Current limit

Short-circuited proof

L×H×D

500×175×375mm

Function

Basic control way

Manual adjustment, analog control, Open-loop/Servo control

     Drawings(Click on the picture to enlarge it)
Click on the picture to enlarge it
      Downloads
Auto CAD PDF
Step
Specs Sheet
Manual

E00 User Manual

E00/E01Series Piezo Controller
