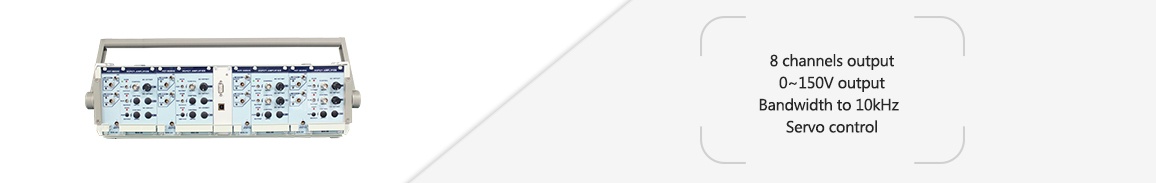

E00.D12AL-V3 Piezo Controller is designed for driving XD502 Piezo Tip/Tilt and Z Stage, with 8 channels output. It can be controlled by analog or digital signals and it can communicate with software control through RS-232/422 serial port or USB port.
Characteristics
|
|
|
|
|
|
Driving XD502 Piezo Tip/Tilt and Z Stage
|
Applications
|
|
|
|
| Technical Data | |
|
Type |
E00.D12AL-V3 |
|
Drive |
|
|
Channels |
8 |
|
Analog input(V) |
0~10 |
|
Output voltage(V) |
Channel 1~4,5,7：0~150 Channel 6,8：+150~0 |
|
Ripple(mV) |
5 |
|
Unloaded bandwidth(kHz) |
10 |
|
Ave. Current(mA) |
46 |
|
Peak Current(A) |
1 |
|
Control input interface |
BNC |
|
Servo control |
|
|
Sensor type |
SGS (or LVDT, CAP) |
|
Servo |
Analog P-I +Notch filter |
|
Sensor interface |
ERA.0S.304.CLL |
|
Sensor output voltage(V) |
0~10 |
|
Communication |
|
|
Computer interface |
RS-232/422、USB |
|
Baud rate |
9600、19200、38400、57600、 76800、115200 、128000、 230400、256000、5250000 |
|
Output wave frequency（kHz） |
10 |
|
Others |
|
|
Operating temperature(°C)（℃） |
0~50 |
|
Power supply |
AC 220V±10％，50Hz±10％ |
|
Current limit/span> |
Short-circuited proof |
|
L×H×D(mm) |
536×175×375 |
