P60.X250 Piezo Nanopositioning StageCurrent Location:Product Homepage >> X/Z Piezo Nanopositioner>>P60.X250 Piezo Nanopositioning Stage
  • Introduction
  • Feedback

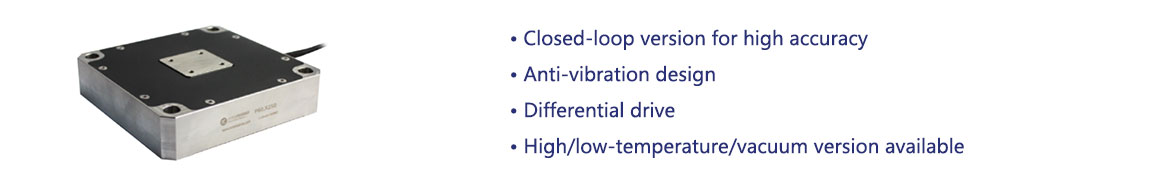

Characteristics


 Closed-loop version for high accuracy

 Anti-vibration design

 Differential drive

 Fast response

 High/low-temperature/vacuum version available




Step time

    Technical Data

Type

P60.X250S

P60.X250K

Units

Active axes

X

X

Driving channels

2

2

Travel range(0~100V)

±130

±130

μm±10%

Travel range(0~120V)

±165

±165

μm±10%

Sensor

SGS

-

Resolution

9

3

nm

Linearity

0.1

-

%F.S.

Repeatability

0.04

-

%F.S.

Pitch/yaw/roll

<10

<10

μrad

Push/pull force

300/30

300/30

N

Stiffness

1.2

1.2

N/μm±20%

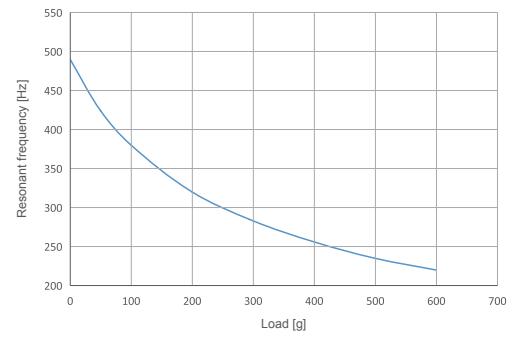

Unloaded resonant frequency

490

490

Hz±20%

Unloaded step time

80

40

ms±20%

Load capacity

0.6

0.6

kg

El. capacitance

24.6

24.6

μF±20%

Operating temperature

-40~+80

-40~+80

Anti-vibration
design

Half sine wave

15g, 11ms

15g, 11ms

Back peak sawtooth wave

20g, 11ms

20g, 11ms

Material

Steel, Aluminum

Steel, Aluminum

Mass

950

950

g±5%

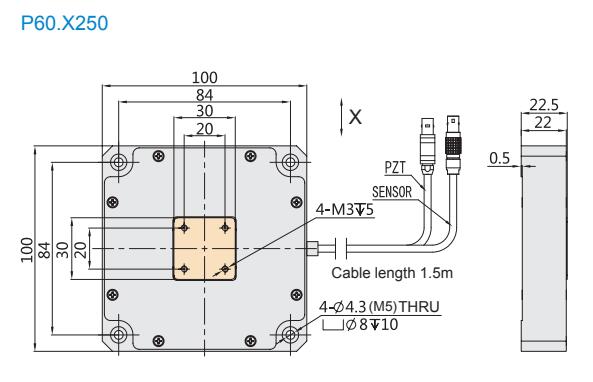

    Drawings(Click on the picture to enlarge it)
Click on the picture to enlarge it
    Downloads
Auto CAD PDF
Step
Specs Sheet
Manual
