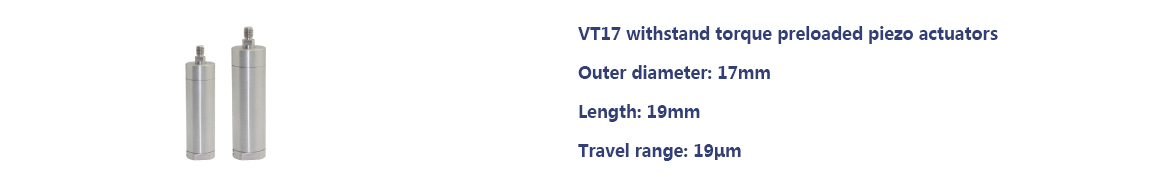

VT17 series piezo actuators adopt withstand tourque design, which can effectively eliminate the torsion generated by external machinery and protect the actuators.

VT series actuators are compact and easy to integrate. The special mechanical structure design optimizes its load, stroke, dynamics and overall dimensions. The diameter is divided into 17mm, and the blocking force is up to 1200N, the max displacement is up to 19μm.

Product structure diagram

Note: the preload force generally does not exceed 20% of the generated force.

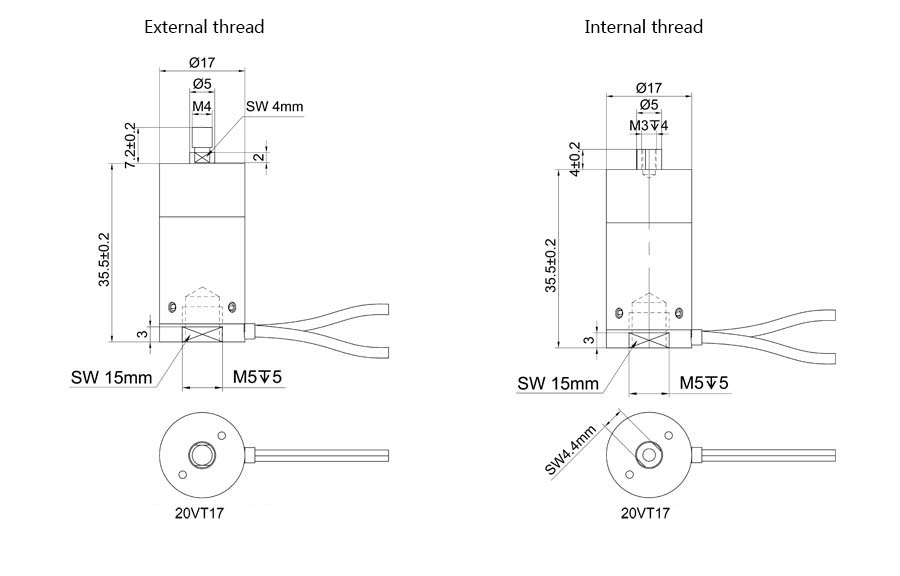

Drawings（Click on the picture to enlarge it）
