Low voltage preloaded piezo actuator is obtained by encapsulating the low-voltage piezo stacks inside, the outer part is protected by stainless steel casing, and the pre-tightening force is applied to the piezo stacks through the mechanical casing, the higher internal machinery preload force is suitable for high load, high dynamic applications. It could output the displacement and output generated by the piezo stack and could withstand certain tensile force.

Characteristics

Nanoscale resolution

Small size

Max displacement 190μm

Max blocking force 2300N

Structure

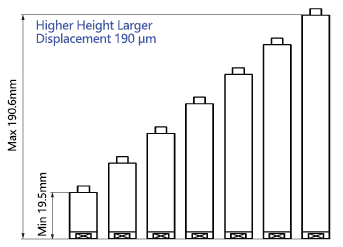

Higher Height Larger Displacement

Closed Loop Curve

Applications

Measurement, interference

Active and adaptive optics

Shock absorption

Precision machinery and machining

Technical data
Models	Stroke [μm]±10%*	Stiffness [N/μm]±20%	Push/pull force [N]	EI.capacitance [μF]±20%	Resonant frequency [kHz]±20%	Weight [g]±5%	Length L [mm]±0.3	Download	Step
Models	Stroke [μm]±10%*	Stiffness [N/μm]±20%	Push/pull force [N]	EI.capacitance [μF]±20%	Resonant frequency [kHz]±20%	Weight [g]±5%	Length L [mm]±0.3	Download	Internal thread	Plane	Spherical	Extermal thread
PSt150/10/7 VS15	9	240	2300/500	1.8	40	-	19.5
PSt150/10/20 VS15	19	120	2300/500	3.6	30	-	28.5
PSt150/10/40 VS15	38	60	2300/500	7.2	20	-	46.5
PSt150/10/60 VS15	57	35	2300/500	11	14	-	64.5
PSt150/10/80 VS15	76	25	2300/500	14	12	87.2	82.5
PSt150/10/100 VS15	95	20	2300/500	18	10	-	100.6
PSt150/10/120 VS15	114	15	2300/500	21	8	123.3	118.6
PSt150/10/140 VS15	133	14	2300/500	25	7	-	136.6
PSt150/10/160 VS15	152	13	2300/500	28	6	-	154.6
PSt150/10/180 VS15	171	11	2300/500	33	5	-	172.6
PSt150/10/200 VS15	190	10	2300/500	37	4	-	190.6

*Nominal Stroke corresponding drive voltage 0-150V, Recommended voltage 0~120V for long-term operation to extend lifetime.

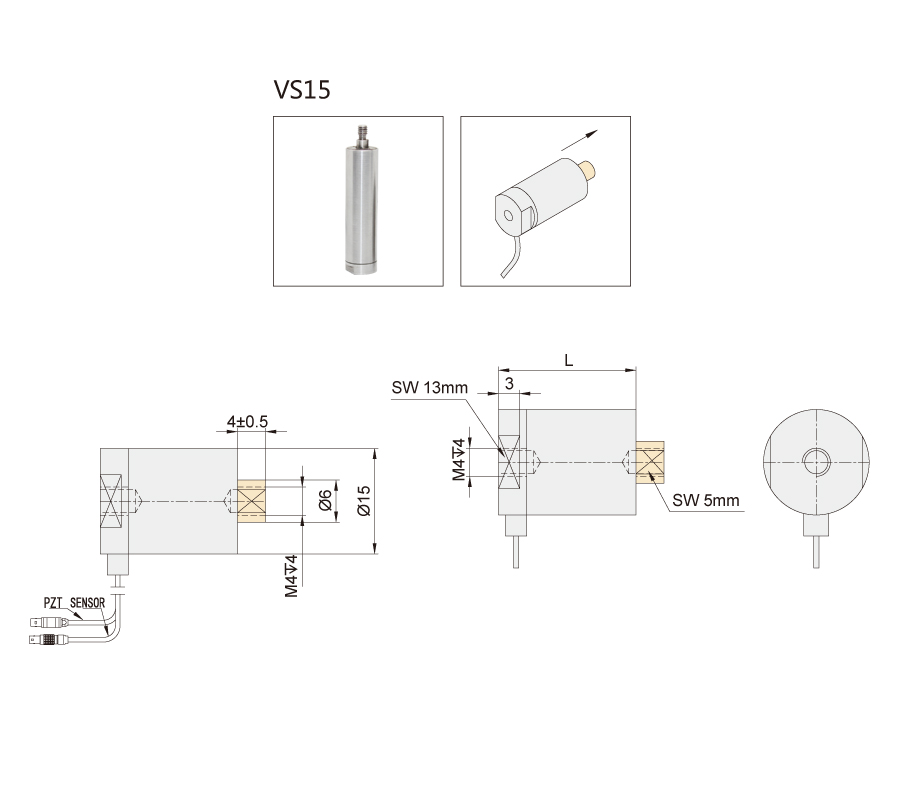

Drawings ( Click on the picture to enlarge it )

Applied for Vibration Suppression

Standard end	Optional ends
Internal	Plane		External		Sphere

See above drawing
See above drawing	Symbol	Parameter	Symbol	Parameter	Symbol	Parameter
	A：	Ø15	A:	Ø15	A：	Ø15
	B:	Ø6	B:	Ø6	B：	Ø6
	C3:	4±0.5	C1:	7±0.5	C2：	5±0.5
			D:	M4	G：	SR2
			E:	SW5mm
			F:	2
