FIFA World Cup is in full swing now, CoreMorrow piezo nano motion control products also want to get involved. Lets see what teams take part in the piezo nano motion World Cup, and who will eventually "win"?
Simply put, FIFA World Cup competes who scores the most goals, and the piezo nano motion "World Cup" Champion is the team who controls the motion most accurate, whose step can be up to nanometer or even smaller, whose reaction speed is fastest, who is most accurate, who has the most stable performance!
CoreMorrow Piezo Nano Motion Control "Team"

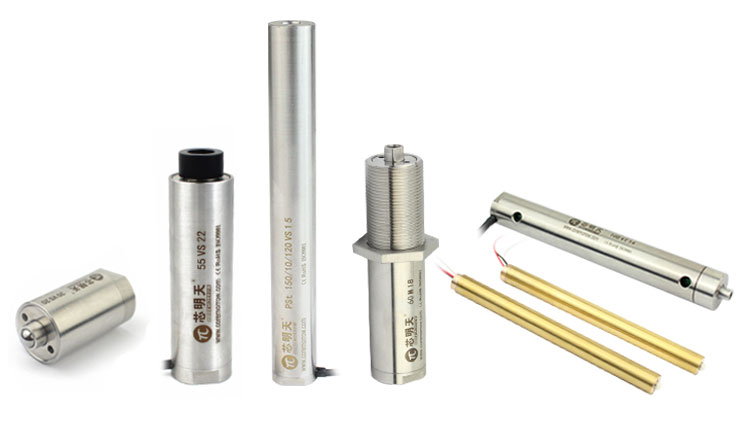

Piezo Actuators
I am a piezo actuator, linear motion, straight forward or backward!
I can "dribble" in a straight line, and I can "shoot"!
The "balls" I carry are different, depending on the user, from lenses to probes ...
I've large blocking force, up to thousands of Newtons!
My displacement is also very large, up to 260μm or above!
The taller my "stature", the larger my displacement!
The fatter I am, the larger blocking force I get!
CoreMorrow Piezo Nano Motion Control "Team"

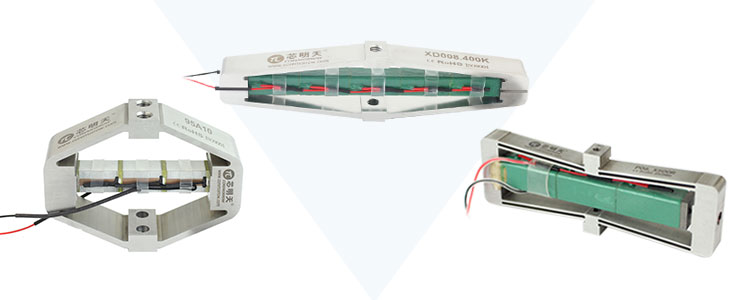

Amplified Piezo Actuators
I can "run" up to 2mm!
I have less power, but I can "drive the ball" in a straight line!
CoreMorrow Piezo Nano Motion Control "Team"
Piezo Tip/Tilt Platform
I'm a piezo deflector, I'm a steering "pass" master!
I usually work with the lens, and the "ball" is the light.
I can carry lenses up to 500 g or even larger!
I can "pass" the light into the "goal" (target location) in milliseconds!
I can deflect up to 2.5 degrees or more!
In addition, I can configure the dual backup type, conduct a timely "fill" when necessary!
You can also use "fence tactics" to control large beams of light!
CoreMorrow Piezo Nano Motion Control "Team"

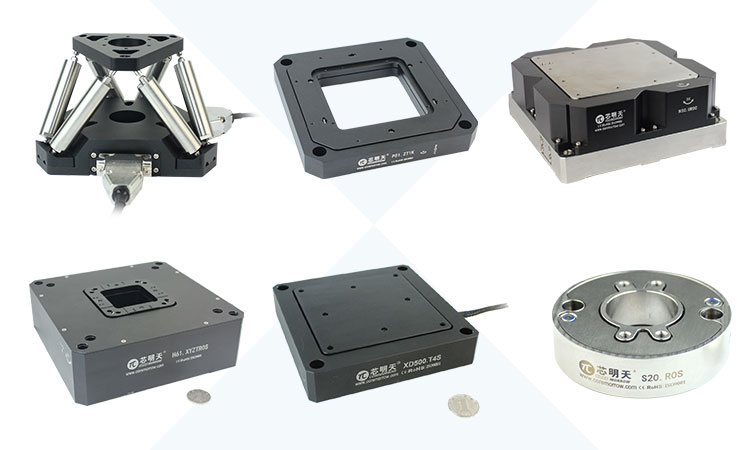

Piezo Tip/Tilt/Rotation Stages
I can move on 1-6 axis, according to your option, either straight, or deflected.
"Dribble", "pass", "bounce", "arc", I am master of everything!
I can work alone with the lens to shoot the beam into the "goal"; and also "team up" and shoot more beams into the same or different "goals"!
I can also load up to 60kg of "balls" and "run" freely!
Our team's six-axis parallel mechanism, is composed of 6 piezo actuators "players" in parallel, the motion control is flexible, fast, accurate!
CoreMorrow Piezo Nano Motion Control "Team"
Fiber Optic Phase Modulator
I make expandable motion, and the fiber is wrapped round and round in my outside diameter groove.
The fiber optic light "runs" around and around my outside diameter and then transmitted to other locations.
So, not only can I "kick a banana ball", but I can also draw a full O, so you can call me "O Ronaldo"...
Through my expansion motion, the light coming out of the fiber will undergo characteristic changes, such as phase, frequency, amplitude and so on.
CoreMorrow Piezo Nano Motion Control "Team"

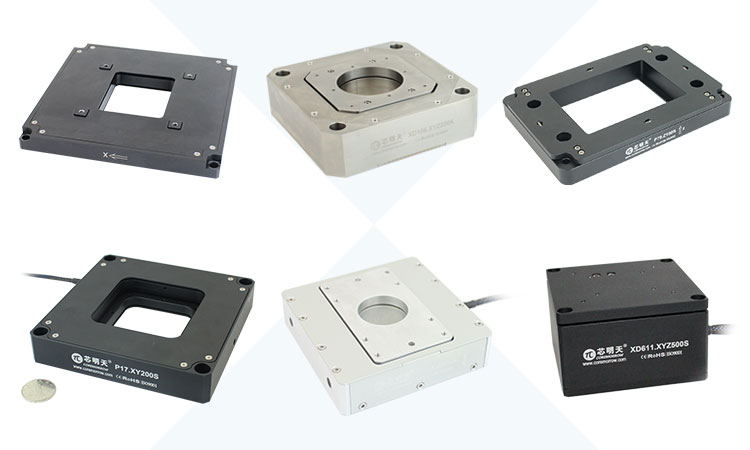

Piezo Nanopositioning Stage
I can perform one to three dimensions XYZ nanoscale nano-motion, that is, I can not only "drive" the ball in straight lines, right and left, back and forth, I can also "bounce" the ball!
I can freely choose whether to have a central through-hole so that the light or lens passes through my "body".
You need me to "run" 1μm, I never dare "run" 2μm, with very high positioning accuracy.
Even let me to "shovel" is ok, but I have to be equipped with a "shovel", for example, in optical fiber docking, I need to be equipped with optical fiber gripper.
CoreMorrow Piezo Nano Motion Control "Team"

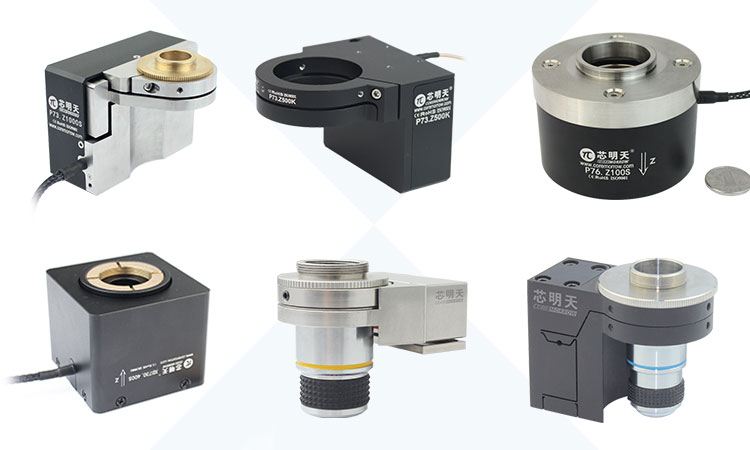

Piezo Objective Scanner
I am very single-minded, only carry one kind of "ball", it is the objective lens.
I can put it forward, sideways or upside down. How to use it should be informed in advance, because I need to adjust the "internal force"!
I can "step" down, "kick" up, and "kick" sideways!
No matter how small the adjustment distance, how difficult to align, I can pass through the objective lens after the focus of the light into the "goal"!
CoreMorrow Piezo Nano Motion Control "Team"

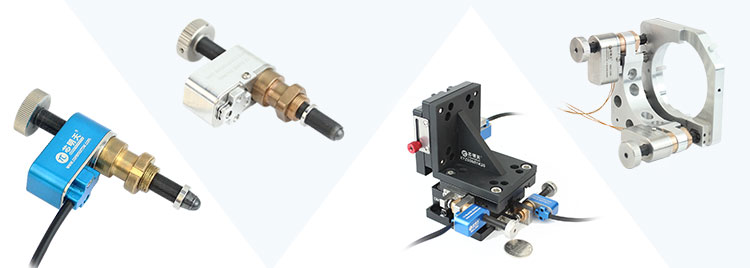

Piezo Screw/Optical Mounts
Although my straight "rush" speed can not catch up with other "teams", but I have my advantages.
I forward in rotation, and I'm "running" a longer route, up to 26mm!
If I were faster, I'd be a winger!
If I were faster, I'd be a winger!
I can coordinate with the frame and lens to "pass" at a angle of 4 degrees.
In combination with the platform, I can also perform XYZ 3D movement, complete front and back "dribbling", left and right "fake action", up and down "bouncing"!
Moreover, I can make all these actions in vacuum environment!
CoreMorrow Piezo Nano Motion Control "Team"

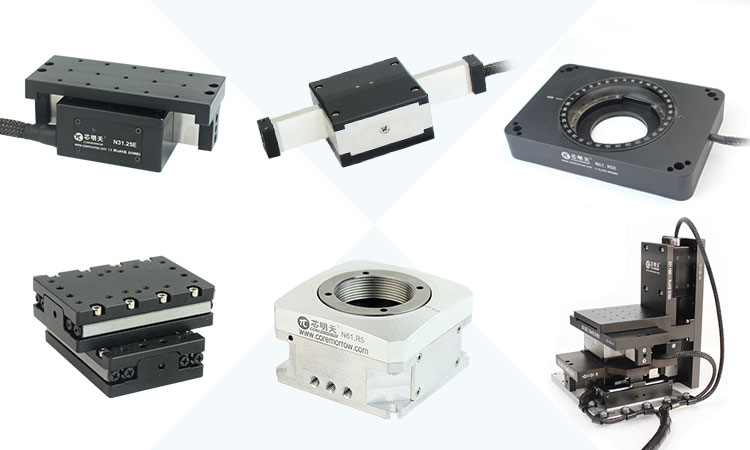

Linear/Rotation Piezo Motors
I can finish a "long-distance running" up to 100mm!
I can also rotate 360 degrees in place, "To support the whole field" is just a piece of cake !
Micro-nano and continuous "little steps", help me complete the final "long run" or 360 degree rotation.
Each of my "little steps" can reach 1nm!
I can be built with a grating sensor inside, if I accidentally pushed by an opposing "player", I will automatically return to the position!
We have a special load mounting hole, please do not install wrong and make a "handball" mistake!
CoreMorrow Piezo Nano Motion Control "Team"
Piezo Controllers
There are so many "teams", where to go, how far they need to go are all controlled by me.
I can "command" them to go in the corresponding direction by voltage; I can also use adaptive closed-loop control for more stringent monitoring control.
In that way, I have their real-time location under my control.
I can control one "player" or hundreds of "players" at the same time, this control ability is unique!
Here many CoreMorrow piezo nanomotion control "teams" are omitted.
Prediction for the Championship
In so many piezo nano motion control "teams" of CoreMorrow, which "team" do you think will "take the crown "?
As an onlooker, I think they all deserve the champion, they do not need a "Derby battle", because they are all born for ultra-precision nano motion control, they have the same goal to make your equipment more precise!
